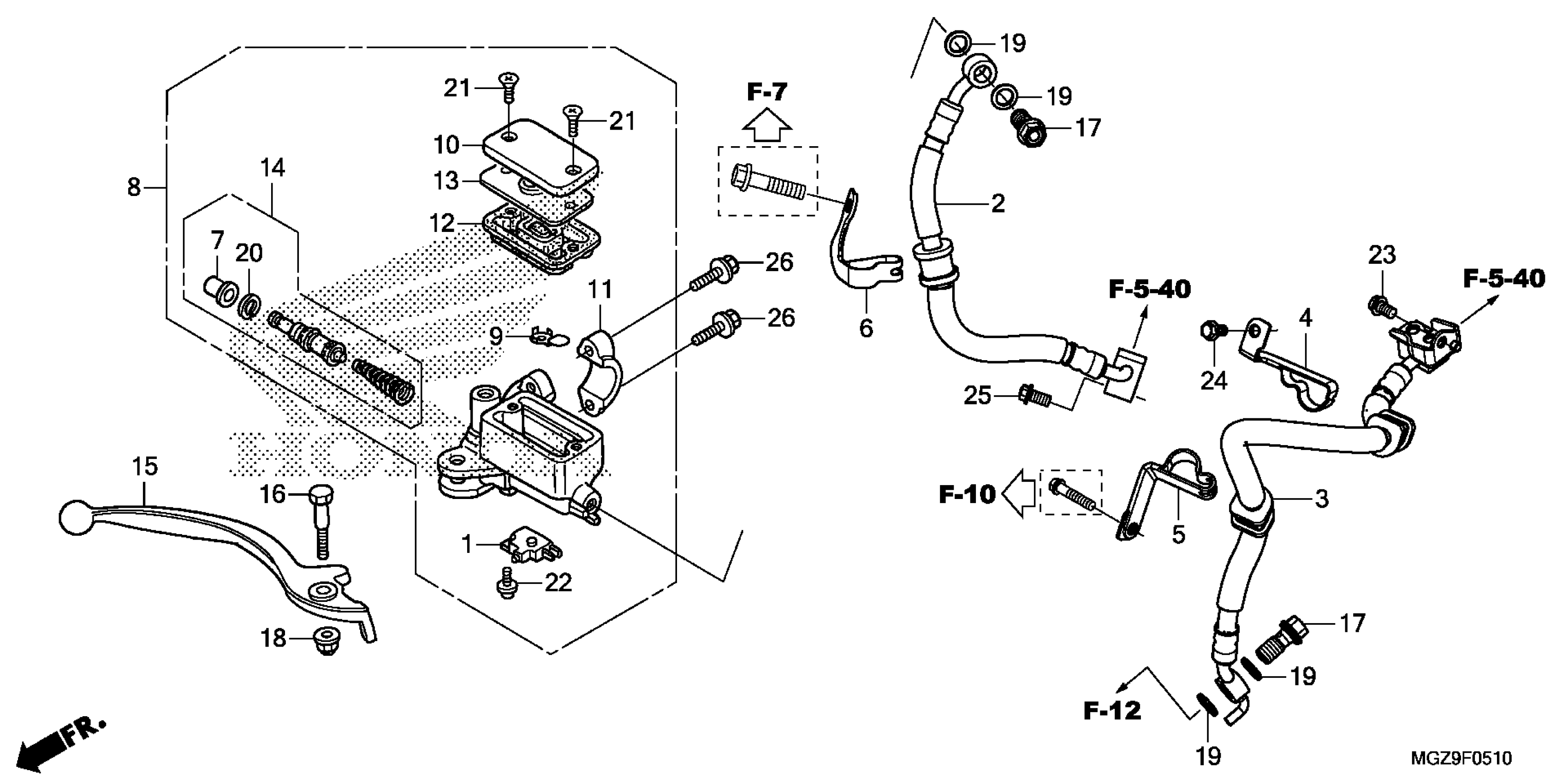

Honda CB500XAA (15) MOTORCYCLE, THA, VIN# MLHPC465-F5200001 FRONT BRAKE MASTER CYLINDER (ABS) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

2

HOSE A, FR. BRAKE

45125-MGZ-J91

$29.51

3

HOSE B, FR. BRAKE

45126-MGZ-J11

$58.87

4

CLAMP A, FR. BRAKE HOSE

45155-MGZ-J10

$3.64

5

CLAMP B, FR. BRAKE HOSE

45156-MGZ-J10

$2.04

6

CLAMP C, FR. BRAKE HOSE

45157-MGZ-J40

$3.26

7

BOOT

45504-410-003

$10.93

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MGZ-315

$111.13

9

PROTECTOR

45512-MA6-006

$3.99

10

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

10

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

11

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

12

DIAPHRAGM

45520-GE2-006

$8.35

13

PLATE, DIAPHRAGM

45521-K21-901

$2.07

14

MASTER CYLINDER SET

45530-471-831

Unavailable

15

LEVER, R. HANDLEBAR (COO)

53175-KYJ-305

$14.63

16

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

17

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

18

NUT, CAP (6MM)

90202-KCW-870

$2.65

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

CIRCLIP

90651-MA5-671

$2.38

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

24

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

25

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

26

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
