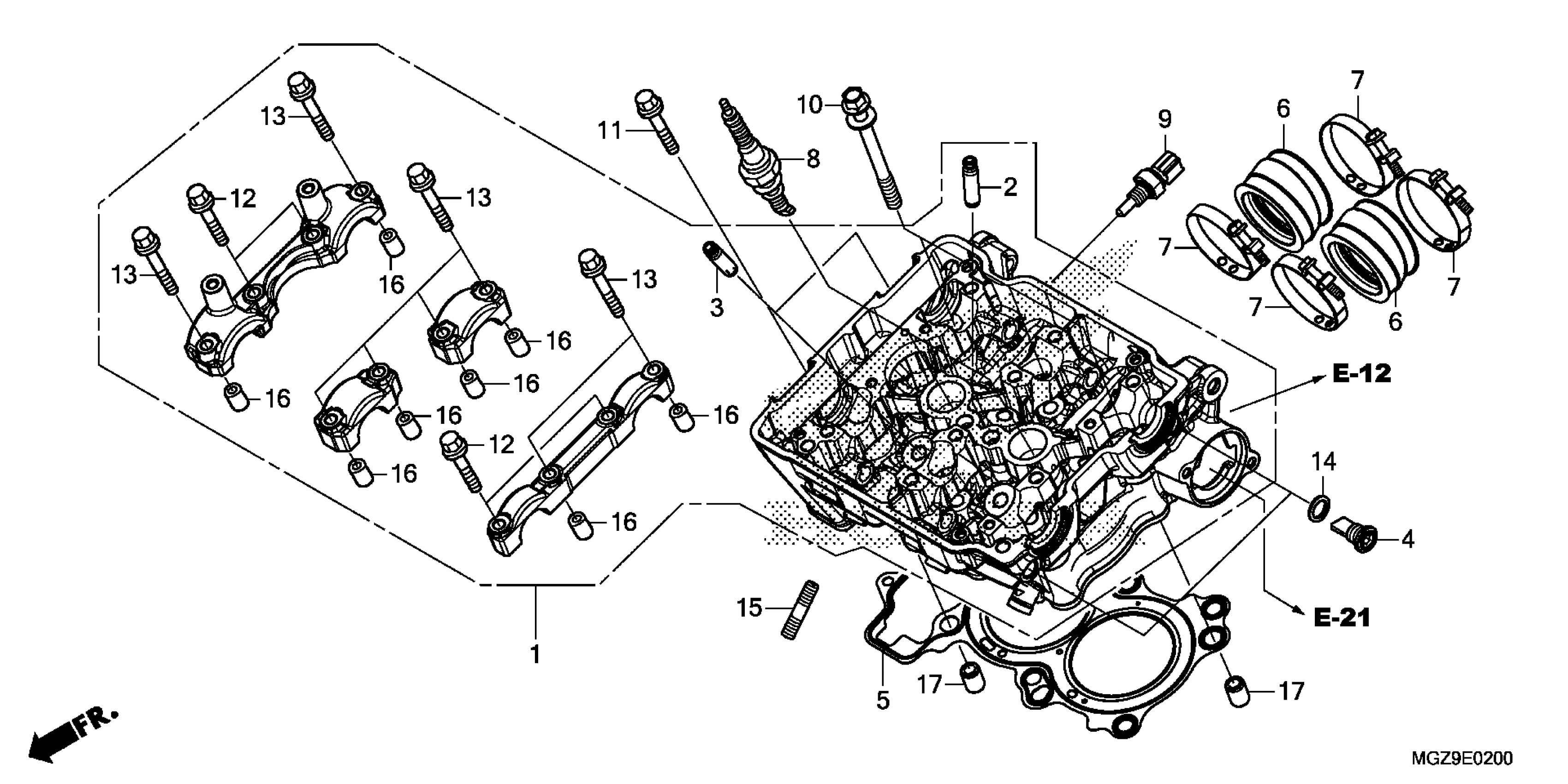

Honda CB500XAA (14) MOTORCYCLE, THA, VIN# MLHPC465-E5100001 TO MLHPC465-E5199999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MGZ-J80

$560.09

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.27

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$17.27

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.27

BOLT, SEALING (12MM)

12207-MGZ-J00

$7.67

GASKET, CYLINDER HEAD

12251-MGZ-J01

$29.41

INSULATOR, THROTTLE BODY

16211-MGZ-J00

$11.23

BAND, INSULATOR

16217-MGZ-J00

$3.09

SPARK PLUG (CPR8EA-9) (NGK)

31916-KRM-841

$4.88

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$44.73

BOLT-WASHER (9X100)

90007-MGZ-J00

$4.43

BOLT, FLANGE (6X35)

90011-MGZ-J00

$0.43

BOLT, FLANGE (6X32)

90017-KYJ-900

$0.70

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$0.75

WASHER (12.2X17X1.5)

90418-KYJ-900

$0.86

BOLT, STUD (8X22)

92900-08022-3E

$2.10

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

PIN A, DOWEL (12X16)

94301-12160

Unavailable
