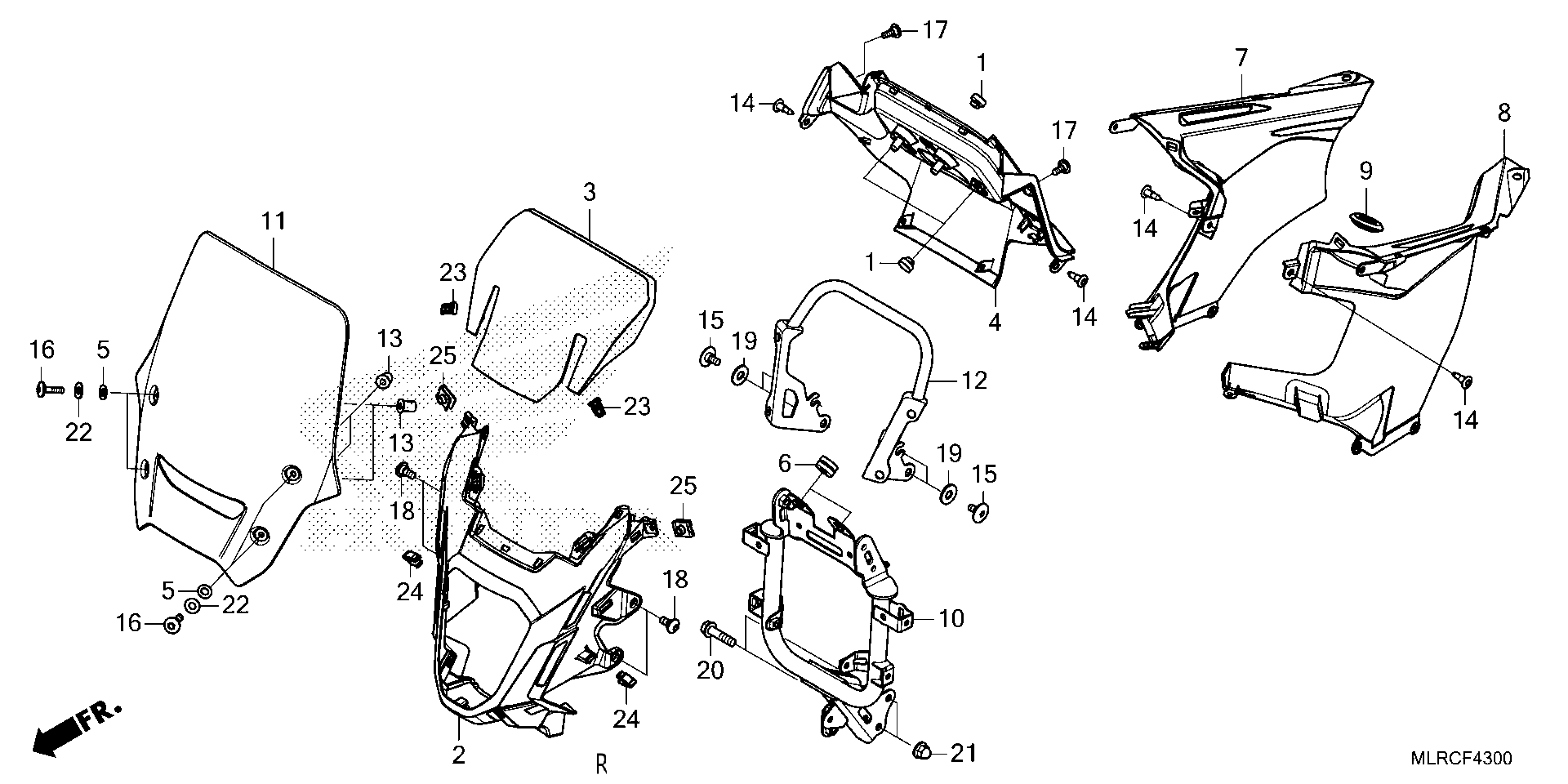

Honda CB500XA2AC (25) MOTORCYCLE, THA, VIN# MLHPC725-S5100001 TO MLHPC725-S5199999 UPPER COWL@WINDSCREEN Diagram

#

Description
Price

1

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

2

COWL, HEADLIGHT

64111-MLR-D80

$18.69

3

VISOR, METER

64121-MLR-D80

$20.90

4

PANEL, METER

64131-MLR-D80

$10.13

5

WASHER, SCREEN SETTING

64205-166-610

$2.21

6

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.48

7

PANEL, R. (INNER)

64231-MLR-D80

$6.93

8

PANEL, L. (INNER)

64261-MLR-D80

$6.93

9

GROMMET, PANEL (INNER)

64285-MKP-J00

$1.49

10

STAY, COWL (UPPER)

64501-MLR-D80

$59.85

11

WINDSCREEN

67101-MLR-D80

$68.59

12

STAY, SCREEN

67121-MLR-D80

$28.43

13

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

14

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

15

BOLT, SCREEN STAY

90117-MEW-920

$2.90

16

SCREW, PAN (5X20)

90117-MGZ-J80

$1.49

17

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.49

18

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.49

19

WASHER, BUMPER BOLT

90148-SA0-000

$3.62

20

BOLT, FLANGE (8X32)

90164-GHB-690

$1.49

21

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.49

22

WASHER, THRUST (5MM)

90504-964-000

$1.90

23

CLIP, SLIDE

90651-K14-A31

$1.49

24

CLIP, SNAP FITTING

90666-K73-VA1

$1.88

25

NUT, CLIP (5MM)

90677-KAN-T00

$1.49
