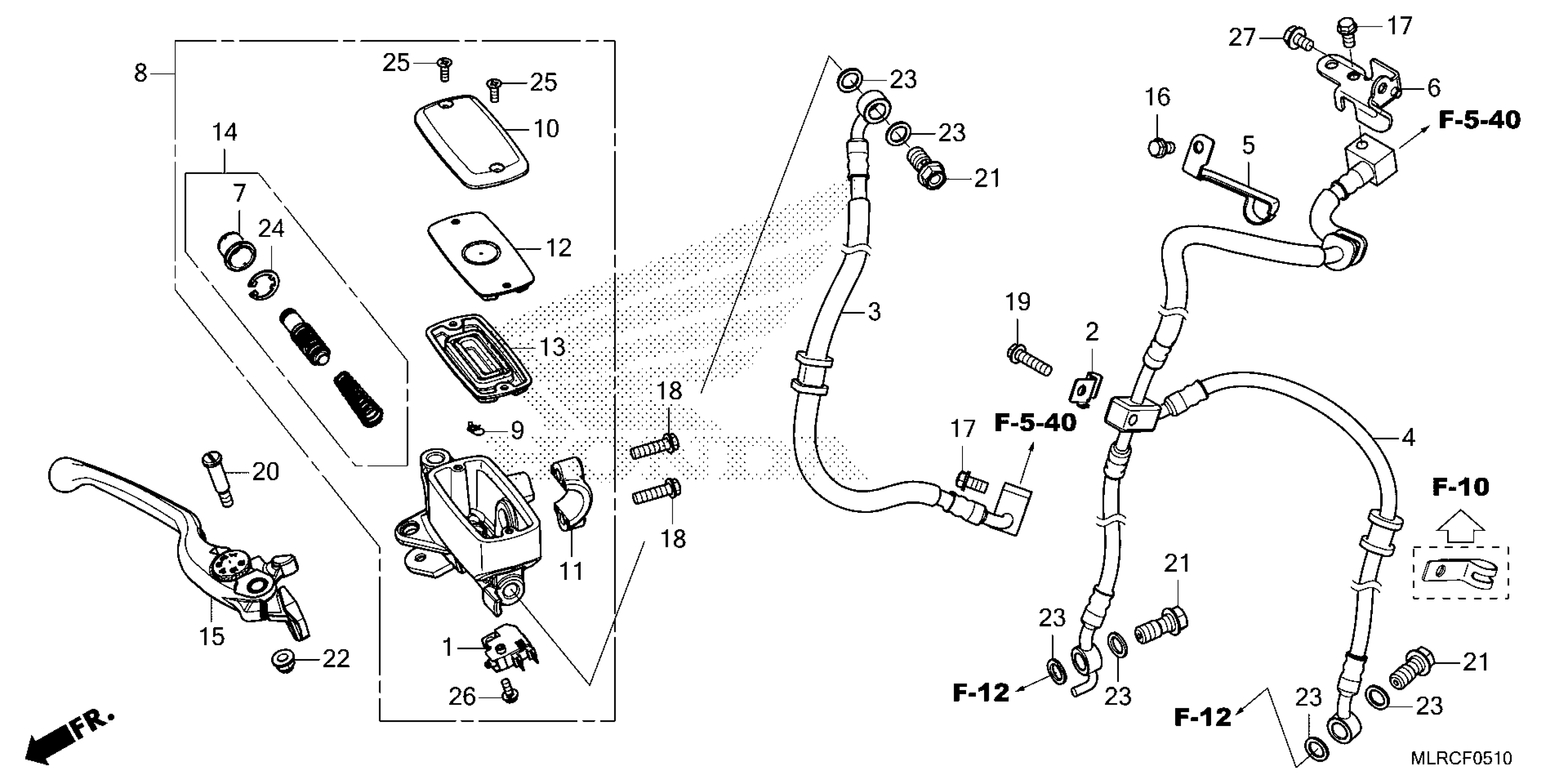

Honda CB500XA2AC (25) MOTORCYCLE, THA, VIN# MLHPC725-S5100001 TO MLHPC725-S5199999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.85

HOSE A, FR. BRAKE

45125-MLR-D81

$27.34

HOSE B, FR. BRAKE

45126-MKP-DQ1

$105.93

CLAMP A, FR.

45155-MKP-DQ0

$4.00

STAY, FR. BRAKE HOSE

45160-MKP-DN0

$7.47

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN) This part replaces 45510-MJE-D01.

45510-MJE-305

$109.51

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)

45510-MJE-305

$109.51

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER ASSY., R. HANDLE

53170-MKK-D01

$50.87

BOLT, FLANGE (6X10)

90013-GHB-600

$4.48

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-KCW-870

$2.92

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
