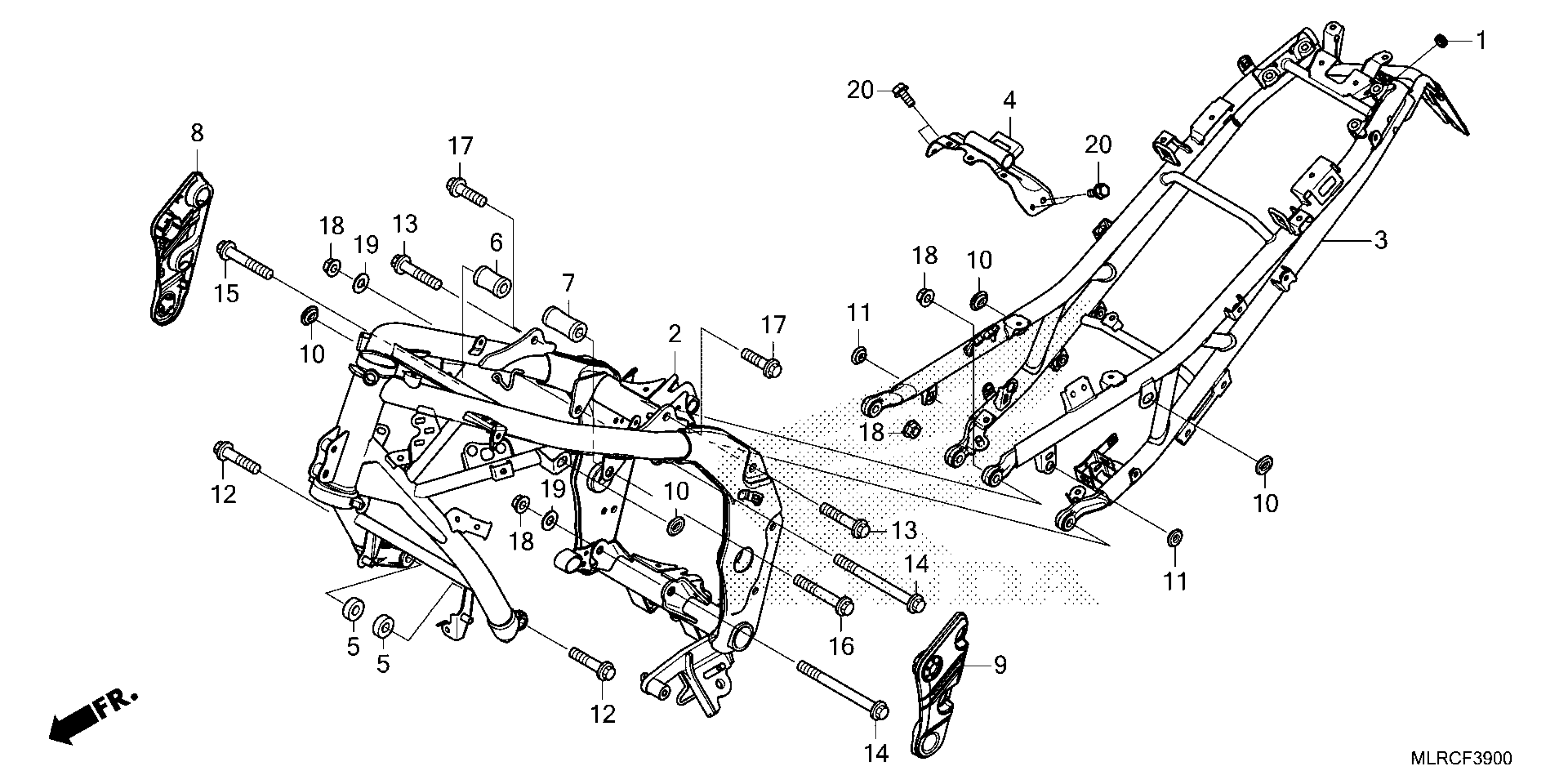

Honda CB500XA2AC (25) MOTORCYCLE, THA, VIN# MLHPC725-S5100001 TO MLHPC725-S5199999 FRAME Diagram

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.66

FRAME *NH303M*

50100-MLR-D80ZA

$434.46

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)

50240-MKP-J80ZA

$316.22

BRACKET, FUEL TANK

50295-MGZ-J00

$11.32

COLLAR A, ENGINE HANGER

50351-MGZ-J01

$4.02

COLLAR B, R. ENGINE HANGER

50353-MGZ-J00

$6.82

COLLAR B, L. ENGINE HANGER

50354-MGZ-J00

$7.82

COVER, R. PIVOT

50401-MJW-J00

$5.69

COVER, L. PIVOT

50451-MJW-J00

$5.69

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

GROMMET, SIDE COVER

83551-376-000

Unavailable

BOLT, FLANGE (10X40)

90101-MKP-DN0

$1.25

BOLT, FLANGE (10X45)

90101-MLR-D80

$1.32

BOLT, FLANGE (10X146)

90104-KYJ-900

$2.97

BOLT, FLANGE (10X65)

90166-GHB-760

$1.62

BOLT, FLANGE (10X75)

90166-GHB-780

$1.76

BOLT, FLANGE (10X35)

90168-S2A-010

$6.19

NUT, FLANGE (10MM)

94050-10000

$1.66

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.74

BOLT, FLANGE (6X14)

95701-06014-08

$1.63
