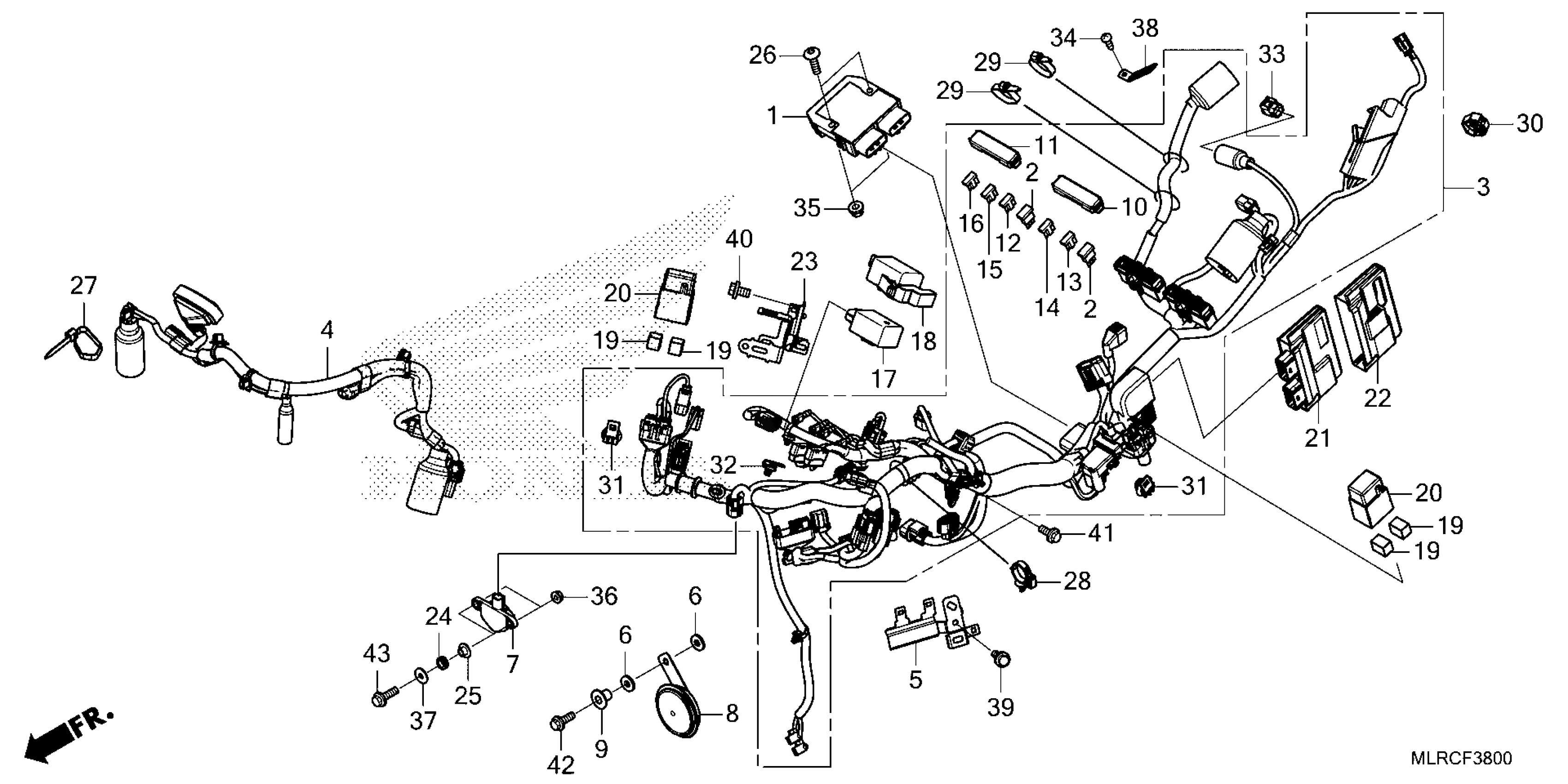

Honda CB500XA2AC (24) MOTORCYCLE, THA, VIN# MLHPC725-R5000001 TO MLHPC725-R5099999 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MLR-A80

$722.79

SUB-HARNESS, FR.

32103-MLR-D80

$126.69

STAY, CONNECTOR

32206-MGZ-J00

$8.05

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

HORN (HIGH)

38110-MGZ-J01

$28.62

COLLAR, HORN SETTING

38117-KFE-701

$1.49

COVER, FUSE BOX

38201-MLR-D81

$16.64

COVER, FUSE BOX

38202-MLR-D81

$16.64

FUSE, BLADE (3A)

38221-MLR-D81

$1.49

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

FUSE, BLADE (30A)

38221-SNA-A81

$2.49

RELAY, TURN SIGNAL

38301-K98-J61

Unavailable

SUSPENSION

38306-MKP-D00

$3.44

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

COVER, RELAY (2P)

38506-KZZ-900

$3.72

PGM-FI UNIT

38770-MLR-A81

$379.93

CUSHION, PGM-FI UNIT

38774-MKP-D00

$4.03

STAY, RELAY BOX

50194-MLR-D00

$8.90

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

SCREW, PAN (6X25)

90135-K87-A00

$1.49

CLAMP, HARNESS

90652-HC4-003

$5.95

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLAMP, HARNESS

90690-MEF-800

$1.49

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

CLIP (4X90)

94591-49000

$3.01

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
