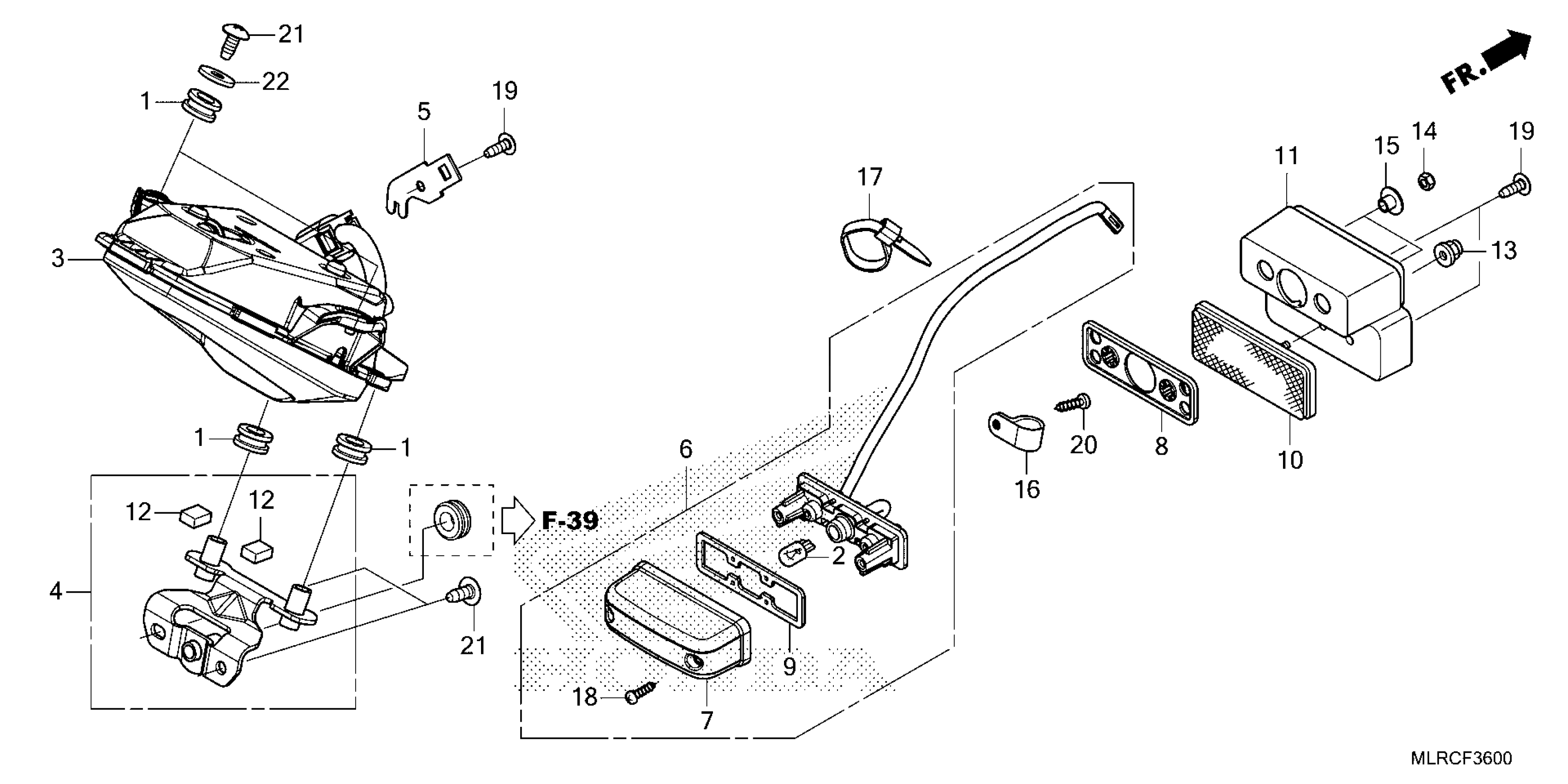

Honda CB500XA2AC (24) MOTORCYCLE, THA, VIN# MLHPC725-R5000001 TO MLHPC725-R5099999 TAILLIGHT Diagram

RUBBER, MOUNTING

19639-GBC-000

$1.49

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT UNIT

33701-MLR-D01

$114.82

STAY, TAILLIGHT

33702-MLR-D80

$9.48

STAY, CONNECTOR

33703-MLR-D80

$1.49

LIGHT ASSY., LICENSE (12V 5W) (COO) This part replaces 33720-MGZ-A01.

33720-MGZ-305

$53.54

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MGZ-305

$53.54

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

33722-K26-305

$10.56

COVER, LICENSE (COO)

33722-K26-305

$10.56

RUBBER, LICENSE LIGHT

33728-KPP-T00

$4.41

GASKET, LENS

33729-MCZ-003

$9.48

REFLECTOR, REFLEX

33741-KPL-902

$7.58

BRACKET, LICENSE LIGHT

80201-KYJ-920

$8.76

RUBBER, PROTECTOR

83266-MKF-D40

$1.95

NUT, U (5MM)

90301-KWN-901

$1.49

NUT, U (5MM)

90302-KVB-T01

$1.85

COLLAR

90505-MGZ-A00

$1.79

CLIP (14MM)

90628-750-000

$2.31

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49
