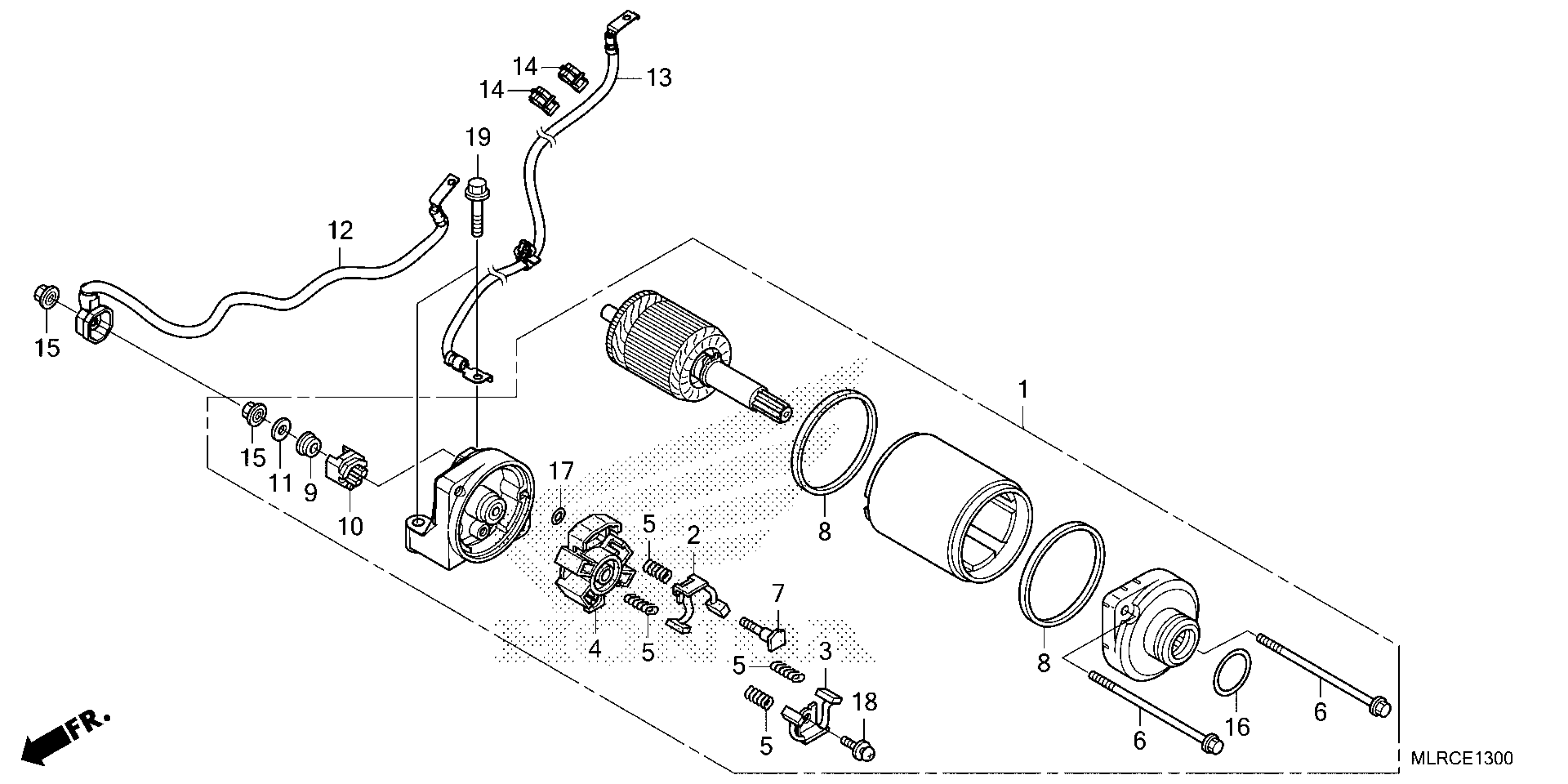

Honda CB500XA2AC (24) MOTORCYCLE, THA, VIN# MLHPC725-R5000001 TO MLHPC725-R5099999 STARTER MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-MGZ-J01

$332.49

BRUSH SET A, CARBON (Honda Code 8476772)

31201-MEW-921

$7.78

BRUSH SET B, CARBON (Honda Code 8476780)

31202-MEW-921

$13.08

HOLDER, BRUSH (Honda Code 8614117)

31203-MEW-921

$7.49

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$13.00

BOLT, SETTING

31205-HP5-601

$3.06

BOLT, TERMINAL

31206-MEW-921

$2.92

RING

31207-HP5-601

$2.15

INSULATOR (Honda Code 8476822)

31208-MEW-921

$7.66

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$11.36

WASHER

31210-MEW-921

$1.82

CABLE, STARTER MOTOR

32410-MKP-DN0

$27.03

CABLE

32601-MKP-DN0

$30.56

CLIP, HARNESS

61309-GE4-003

$4.18

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

BOLT, FLANGE (6X28)

95801-06028-08

$1.73
