Description

Price

1

FORK ASSY., R. FR.

51400-MLR-D81

$361.72

2

SPRING, FR. FORK

51401-MKP-DQ1

$22.85

3

JOINT, SPRING

51404-MKP-DN1

$3.23

4

TUBE (OUTER)

51410-MLR-D81

$266.26

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

6

SPRING, R. REBOUND

51412-MKP-DQ1

$2.80

7

BUSH, GUIDE

51414-MFJ-A51

$7.25

8

BUSH, SLIDER

51415-MFJ-A51

$7.25

9

SEAT, STOPPER

51419-K94-T01

$9.52

10

SEAT, R. STOPPER

51419-MKY-D51

$6.61

11

PIPE, R. SLIDE

51425-MKP-DQ1

$316.95

12

ROD, PISTON

51426-MLR-D81

$59.52

13

RING, PISTON

51437-K98-E21

$3.85

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

CIRCLIP (INNER)

51447-MB4-003

$4.66

16

BOLT, FR. FORK

51450-K98-J61

$80.23

17

NUT, HEX.

51451-MKY-D51

$14.10

18

CASE, ROD GUIDE

51455-K0A-EB1

$44.72

19

RING, STOPPER

51456-K94-T01

$2.30

20

SEAL SET, FR. FORK

51490-MKL-D81

$25.13

21

FORK ASSY., L. FR.

51500-MLR-D81

$333.82

22

COLLAR B, SPRING

51511-MKP-DQ1

$13.95

23

SPRING, L. REBOUND

51512-MKP-DQ1

$4.31

24

PIPE, L. SLIDE

51525-MKP-DQ1

$307.87

25

ROD

51526-MKP-DQ1

$51.02

26

BOLT (8X35)

90101-MKP-DQ0

$1.85

27

DUST SEAL

91251-MKL-D81

$10.67

28

O-RING (39.7X2.4)

91258-MEE-D01

$2.11

29

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

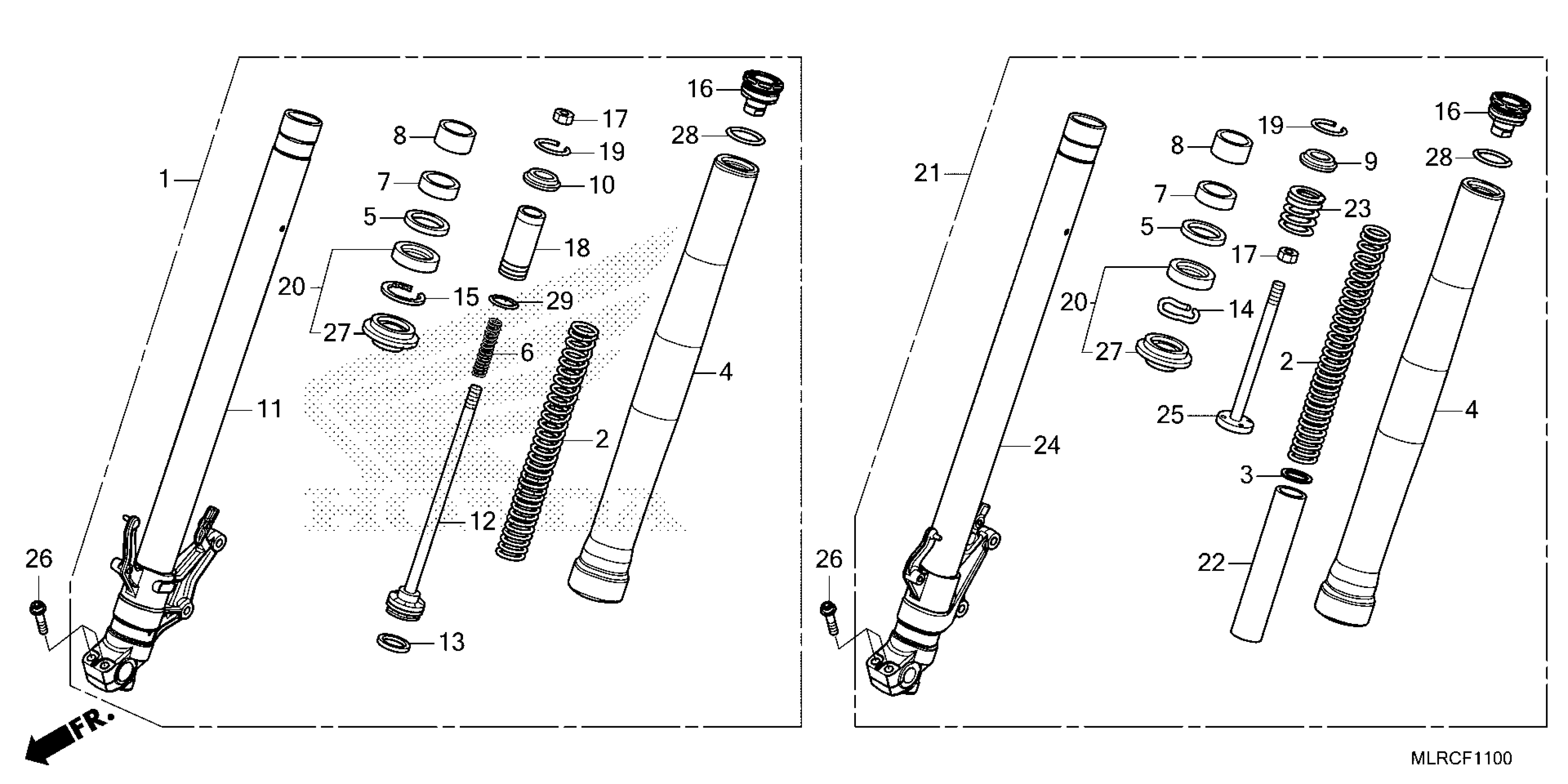

Honda CB500XA2AC (24) MOTORCYCLE, THA, VIN# MLHPC725-R5000001 TO MLHPC725-R5099999 FRONT FORK Diagram
