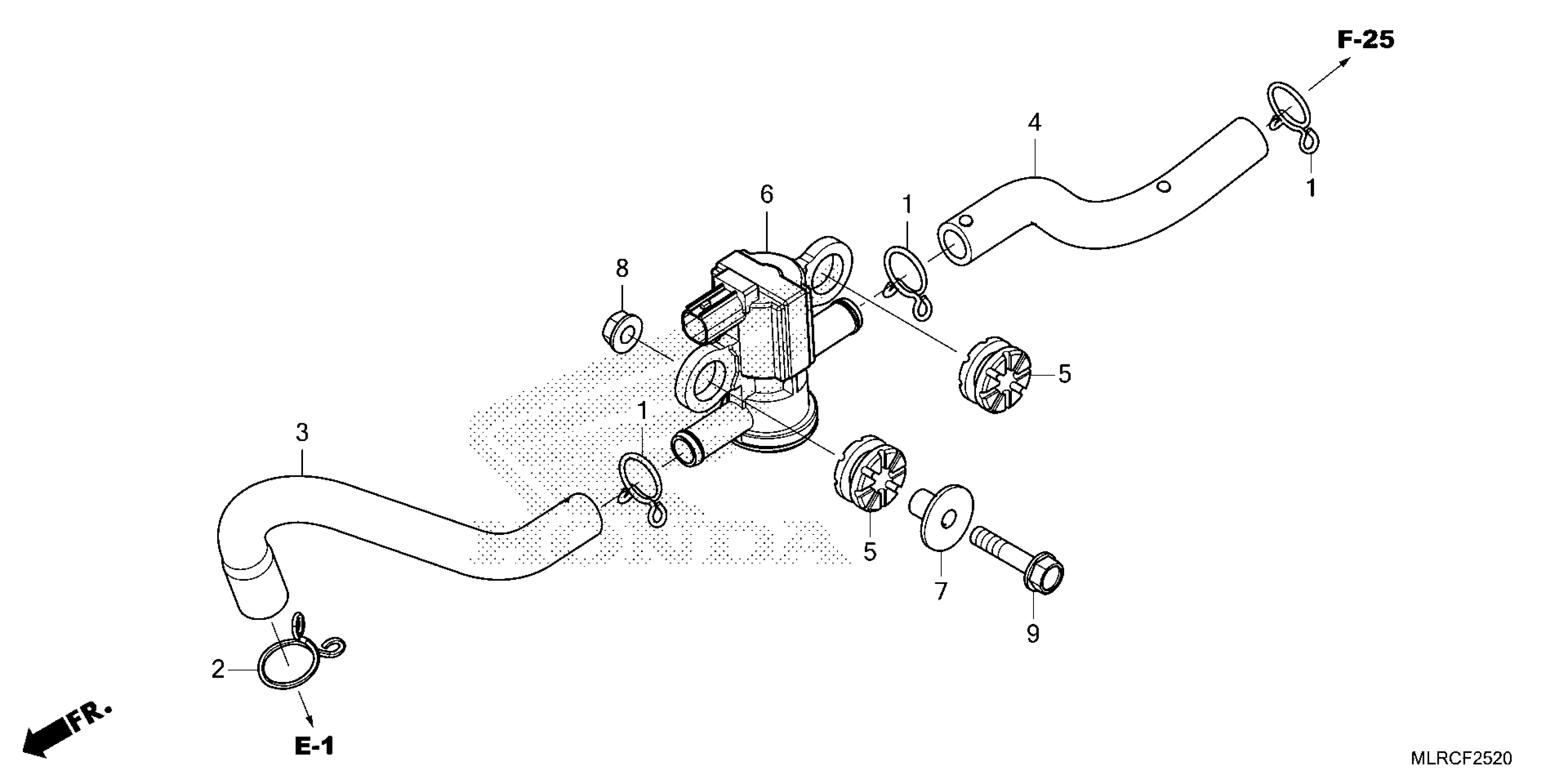

Honda CB500XA2AC (24) MOTORCYCLE, THA, VIN# MLHPC725-R5000001 TO MLHPC725-R5099999 AIR INJECTION SOLENOID VALVE Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-551-000

$1.81

2

CLIP, BREATHER TUBE

17369-KB4-670

$5.16

3

TUBE, AIR INJECTION SOLENOID

18613-MGZ-J00

$4.61

4

TUBE (AISV-AIR CLEANER)

18653-MGZ-D00

$5.64

5

RUBBER, HEADLIGHT

33115-KVK-900

$1.30

6

VALVE ASSY., AIR INJECTION SOLENOID

36450-KVK-902

$57.00

7

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$3.90

8

NUT, FLANGE (6MM)

94050-06080

$0.59

9

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
