Partiron

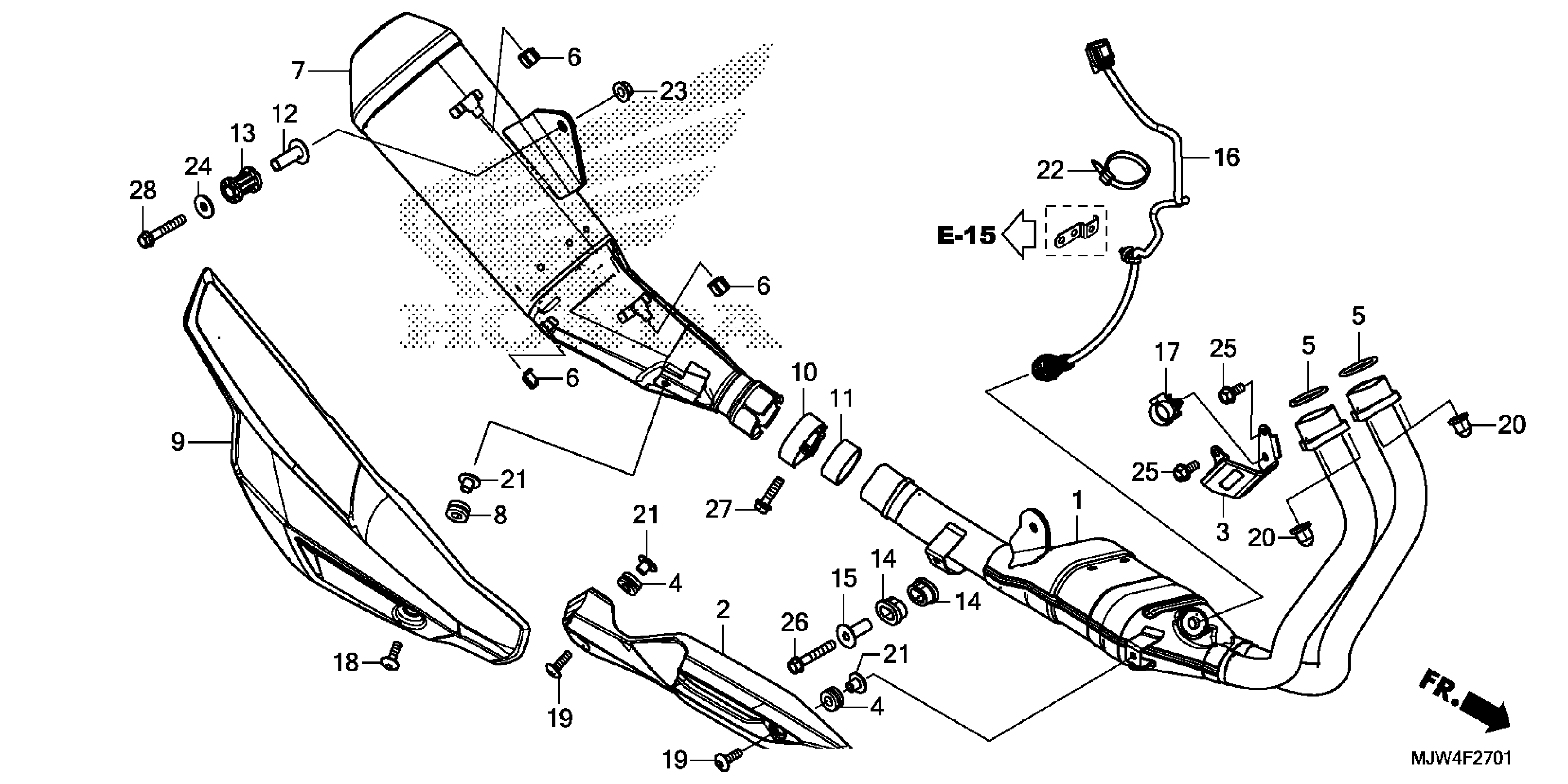

Honda CB500XA2AC (18) MOTORCYCLE, THA, VIN# MLHPC460-J5500001 MUFFLER (2) Diagram

#

Description
Price

1

PIPE, EX.

18150-MJW-DK0

$751.97

2

COVER, EX. MANIFOLD *NH436M* (MAT GUNPOWDER BLACK METALLIC)

18180-MJW-J40ZA

$47.67

3

COVER, SENSOR

18190-MGZ-J40

$21.06

4

RUBBER, COVER MOUNT

18195-MJW-J40

Unavailable

5

GASKET, EX. PIPE

18291-MN4-920

$4.94

6

RUBBER, PROTECTOR

18293-MN0-000

$1.94

7

MUFFLER

18310-MJW-DT0

$340.65

8

RUBBER A, PROTECTOR

18320-196-000

$2.43

9

COVER, MUFFLER

18350-MJW-J00

$92.74

10

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$32.96

11

GASKET, MUFFLER

18391-MJW-J01

$9.67

12

COLLAR, MUFFLER MOUNTING

18420-MGZ-J00

$4.66

13

RUBBER, MUFFLER MOUNTING

18421-MGZ-J00

$1.70

14

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$7.92

15

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$4.51

16

SENSOR, OXYGEN This part replaces 36531-MJW-J01.

36531-MJW-J02

$127.97

16

SENSOR, OXYGEN

36531-MJW-J02

$127.97

17

CLIP, RETURN HOSE

53781-SE0-952

$6.90

18

SCREW, PAN (6X20)

90118-MGZ-J00

$0.97

19

SCREW, PAN (6X20)

90119-MJW-J40

Unavailable

20

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.55

21

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.93

22

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

23

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

24

WASHER, PLAIN (8MM)

94103-08000

$0.59

25

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

26

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

27

BOLT, FLANGE (8X35)

96400-08035-04

$0.58

28

BOLT, FLANGE (8X50)

95801-08050-00

$2.80

28

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.80
