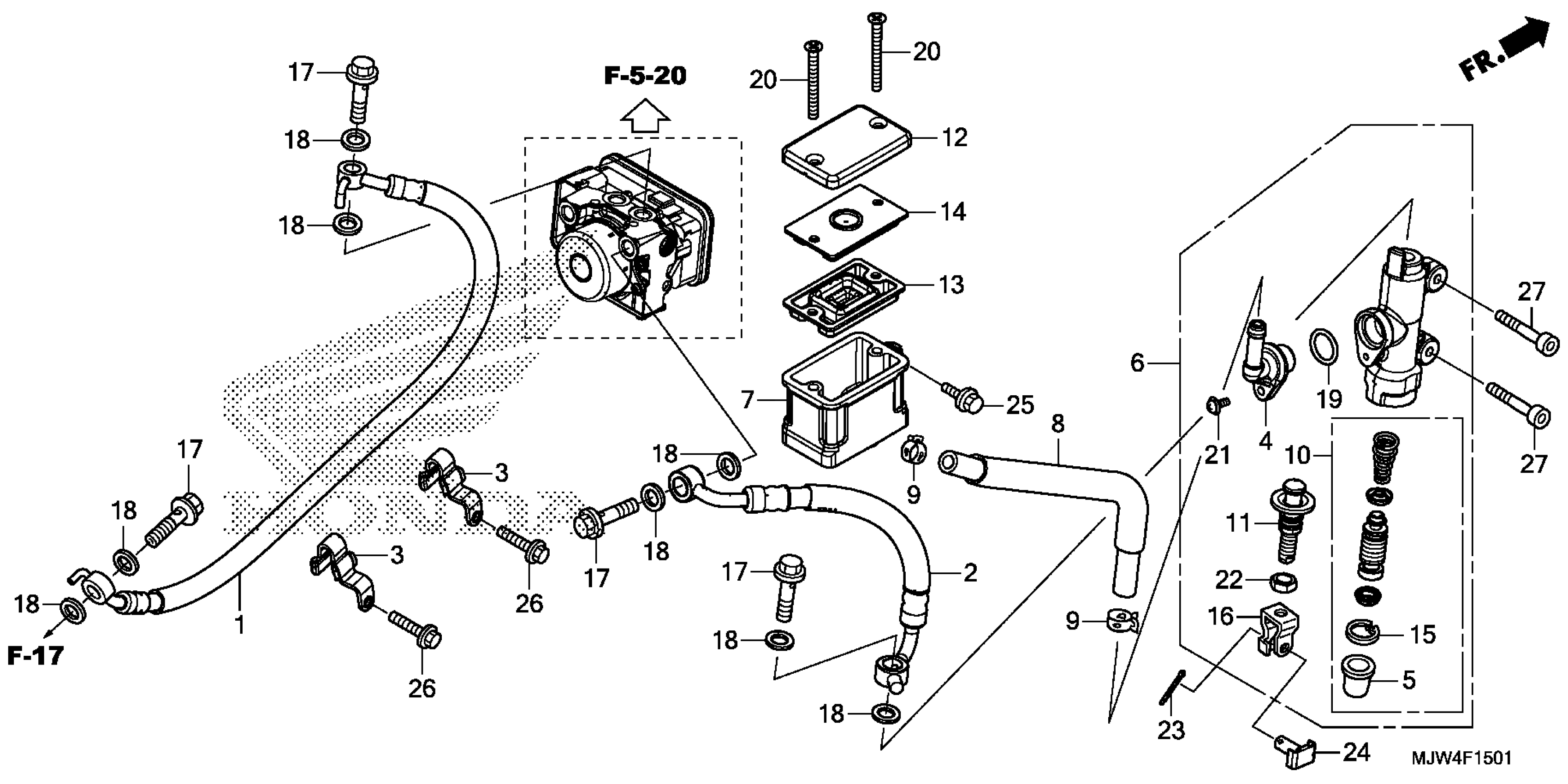

Honda CB500XA2AC (17) CB500XA, THA, VIN# MLHPC460-H5400001 TO MLHPC460-H5499999 REAR BRAKE MASTER CYLINDER (2) Diagram

HOSE A, RR. BRAKE

43310-MGZ-J11

$20.39

HOSE B, RR. BRAKE

43313-MJW-J11

$16.10

GUIDE, RR. BRAKE HOSE

43468-MGZ-J10

$3.72

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MGZ-D01

$191.88

CUP, OIL

43511-KV3-831

$21.29

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGZ-J01

$14.09

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

ROD, PUSH

43530-KV3-701

$18.06

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-KV6-702

$7.30

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X14)

96001-06014-07

$1.09

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

BOLT, SOCKET (6X20)

96600-06020-00

$1.17
