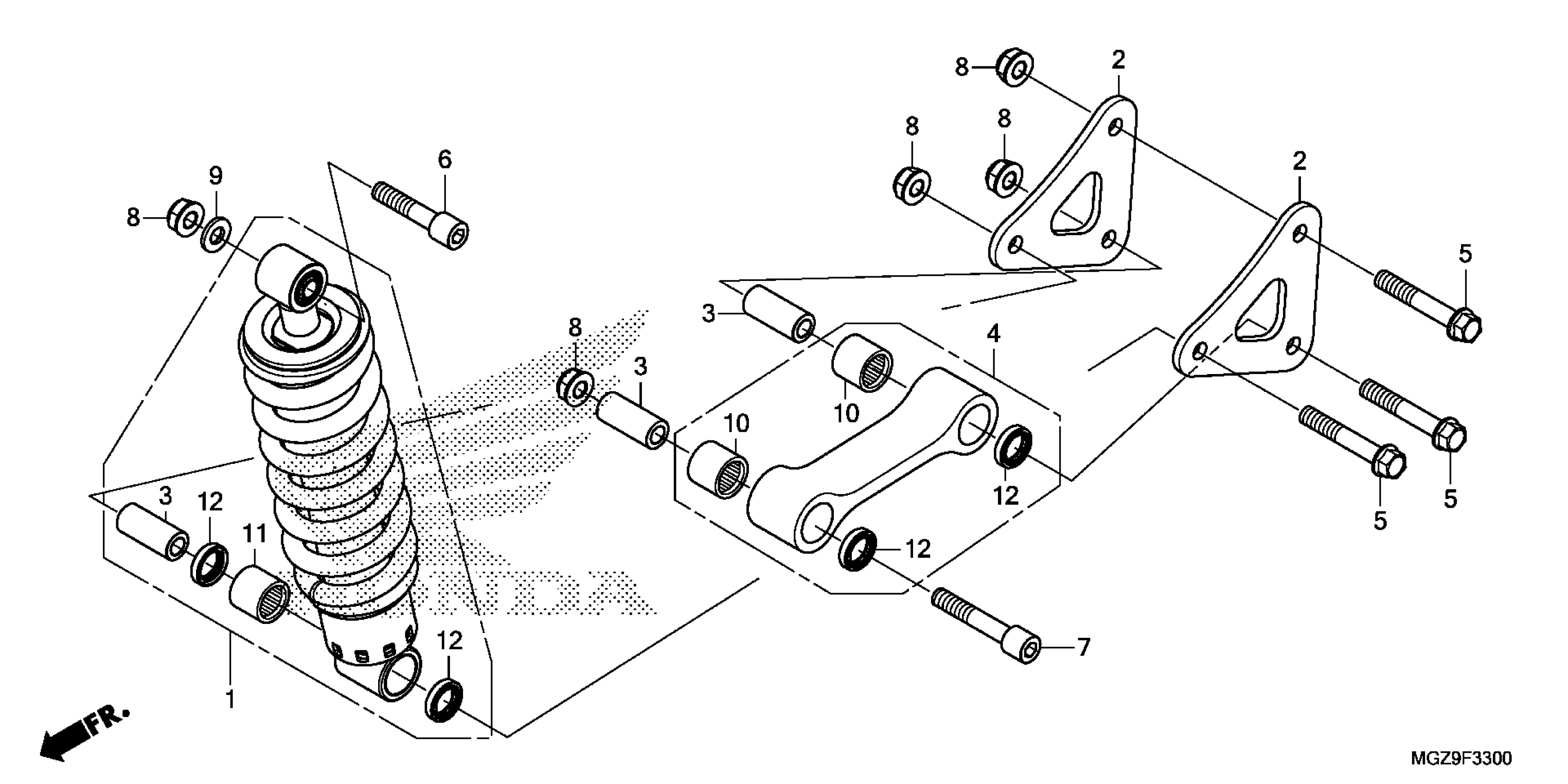

Honda CB500XA (15) MOTORCYCLE, THA, VIN# MLHPC466-F5200001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MGZ-305

$397.31

PLATE, CUSHION ARM

52461-MGZ-J00

$8.16

COLLAR, CUSHION CONNECTING ROD

52463-MGZ-J00

$5.33

ROD SUB-ASSY., CUSHION CONNECTING

52475-MGZ-J00

$91.84

BOLT, FLANGE (10X62)

90121-MGZ-J00

$1.87

BOLT, SOCKET (10X48)

90122-MGZ-J00

$4.22

BOLT, SOCKET (10X58)

90123-MGZ-J00

$5.13

NUT, U (10MM)

90304-KGH-901

$3.25

WASHER (10MM)

90465-MM9-000

$3.54

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.78

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21
