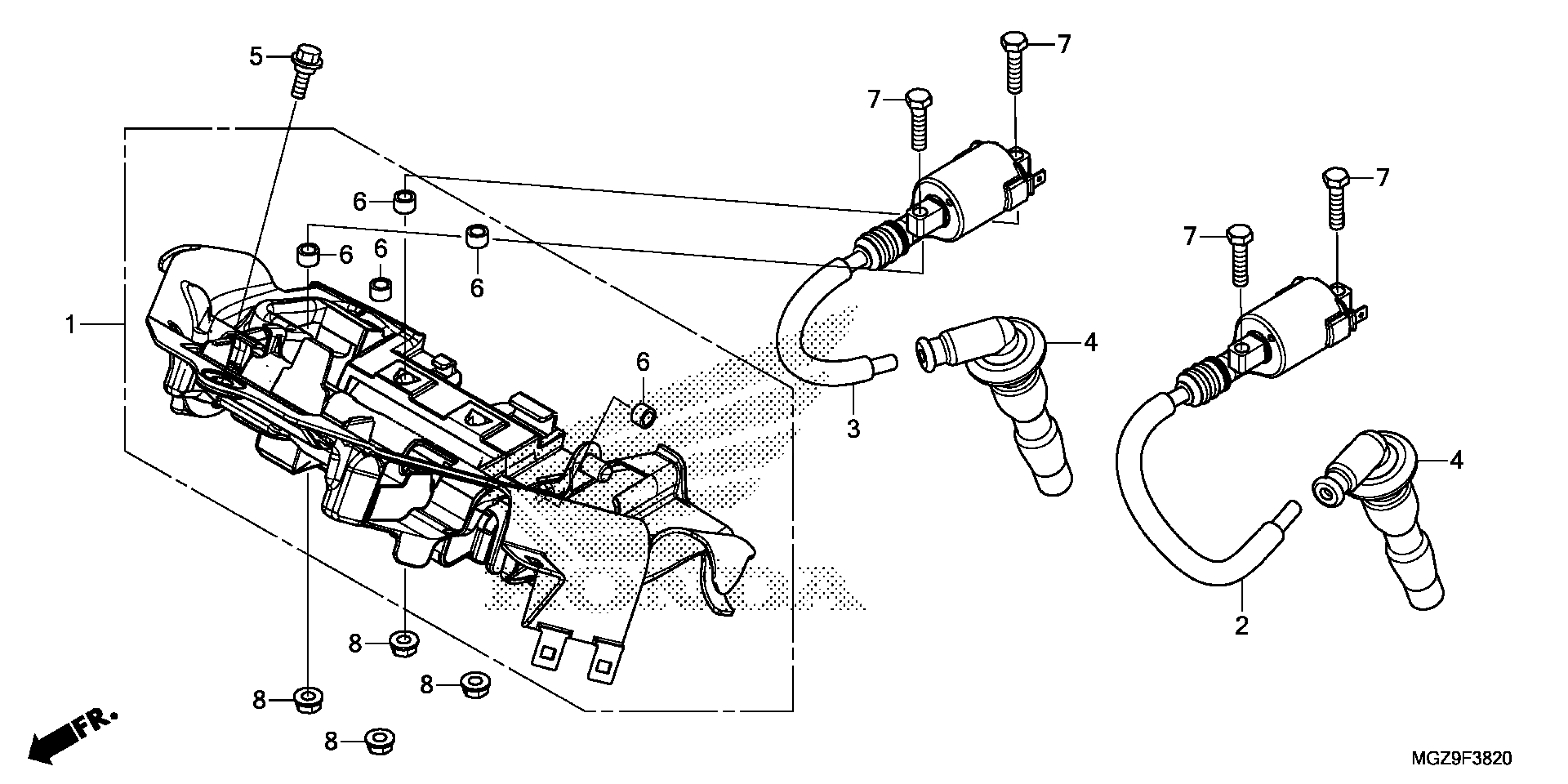

Honda CB500XA (15) MOTORCYCLE, THA, VIN# MLHPC466-F5200001 IGNITION COIL Diagram

#

Description

Price

1

TRAY, IGNITION COIL

19125-MGZ-J00

$19.46

2

COIL, L. IGNITION

30510-MGZ-J01

$20.93

3

COIL, R. IGNITION

30520-MGZ-J01

$21.96

4

CAP ASSY., NOISE SUPPRESSOR

30700-MGZ-J01

$75.85

5

BOLT, FLANGE (6MM)

90111-162-000

$2.66

6

COLLAR, BODY COVER

90312-GFM-970

$1.50

7

BOLT, HEX. (6X25) BOLT-WASHER (6X25)

92101-06025-0A

$1.50

8

NUT, FLANGE (6MM)

94050-06080

$0.60
