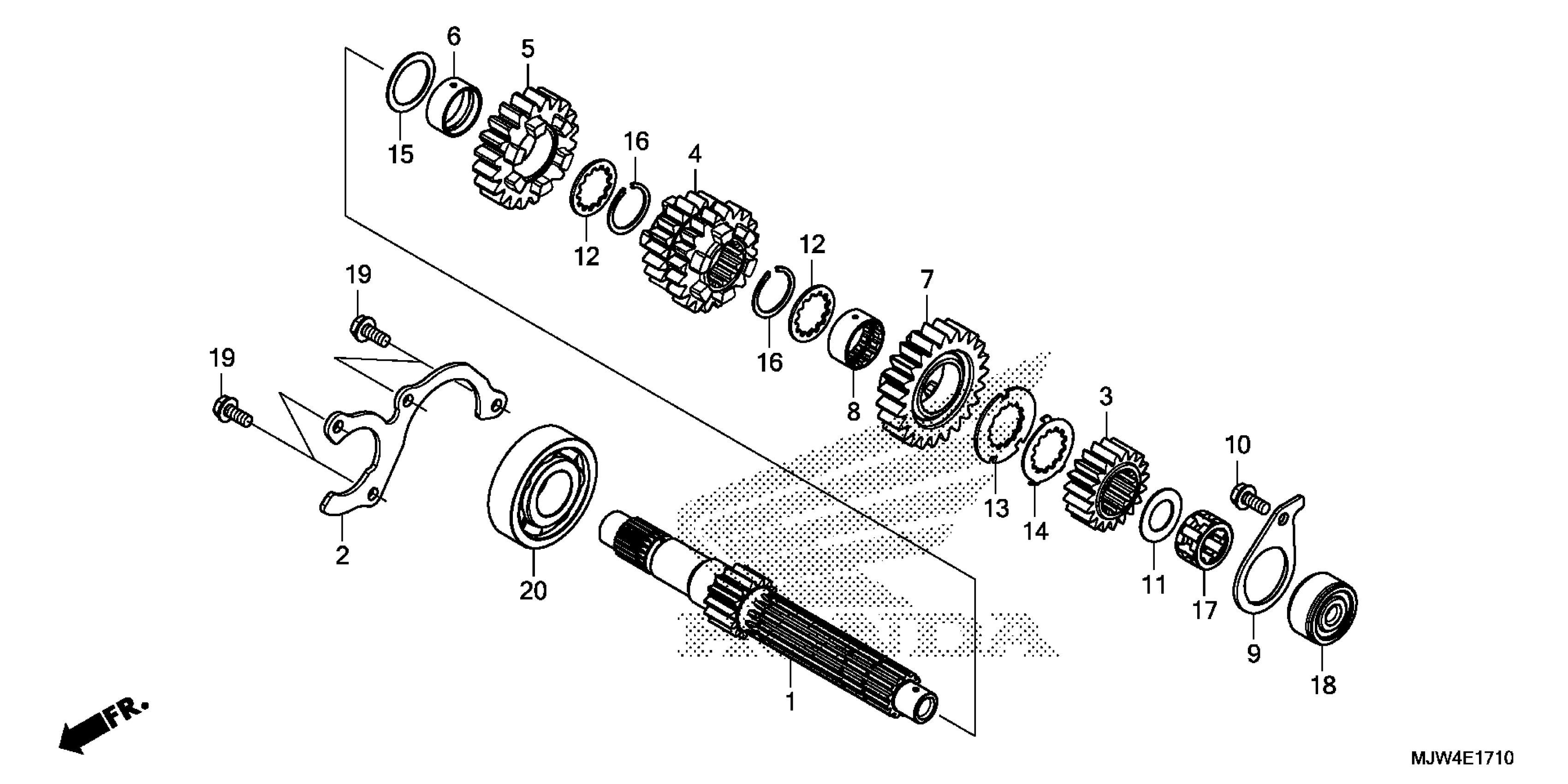

Honda CB500X3A (17) CB500X, THA, VIN# MLHPC466-H5400001 TO MLHPC466-H5499999 TRANSMISSION (MAINSHAFT) Diagram

MAINSHAFT (14T)

23211-MGZ-J00

$59.87

PLATE, BEARING SETTING

23212-MGZ-J00

$12.29

GEAR, MAINSHAFT SECOND (19T)

23431-MGZ-J01

$31.62

GEAR, MAINSHAFT THIRD & FOURTH (20T/20T)

23451-MGZ-J00

$84.29

GEAR, MAINSHAFT FIFTH (20T)

23491-MGZ-J00

$44.51

COLLAR (25X28X12)

23492-MGZ-J00

$12.37

GEAR, MAINSHAFT SIXTH (23T)

23511-MGZ-J00

$45.18

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$25.06

PLATE, BEARING SETTING

23531-MGZ-J00

$4.51

BOLT, FLANGE (6X14)

90005-MGZ-J00

$0.91

WASHER, THRUST (17.2MM)

90403-KE7-000

$3.71

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.65

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.37

WASHER, LOCK (25MM)

90455-KYJ-900

$28.97

WASHER, THRUST (25MM)

90456-MA6-000

$2.46

CIRCLIP (25MM)

90601-107-000

$3.58

BEARING, NEEDLE (17X27X14.8) (TOYO)

91022-MN4-003

$9.31

OUTER, NEEDLE BEARING

91023-MN4-003

$14.90

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BEARING, RADIAL BALL (6305)

96100-63050-00

$14.02
