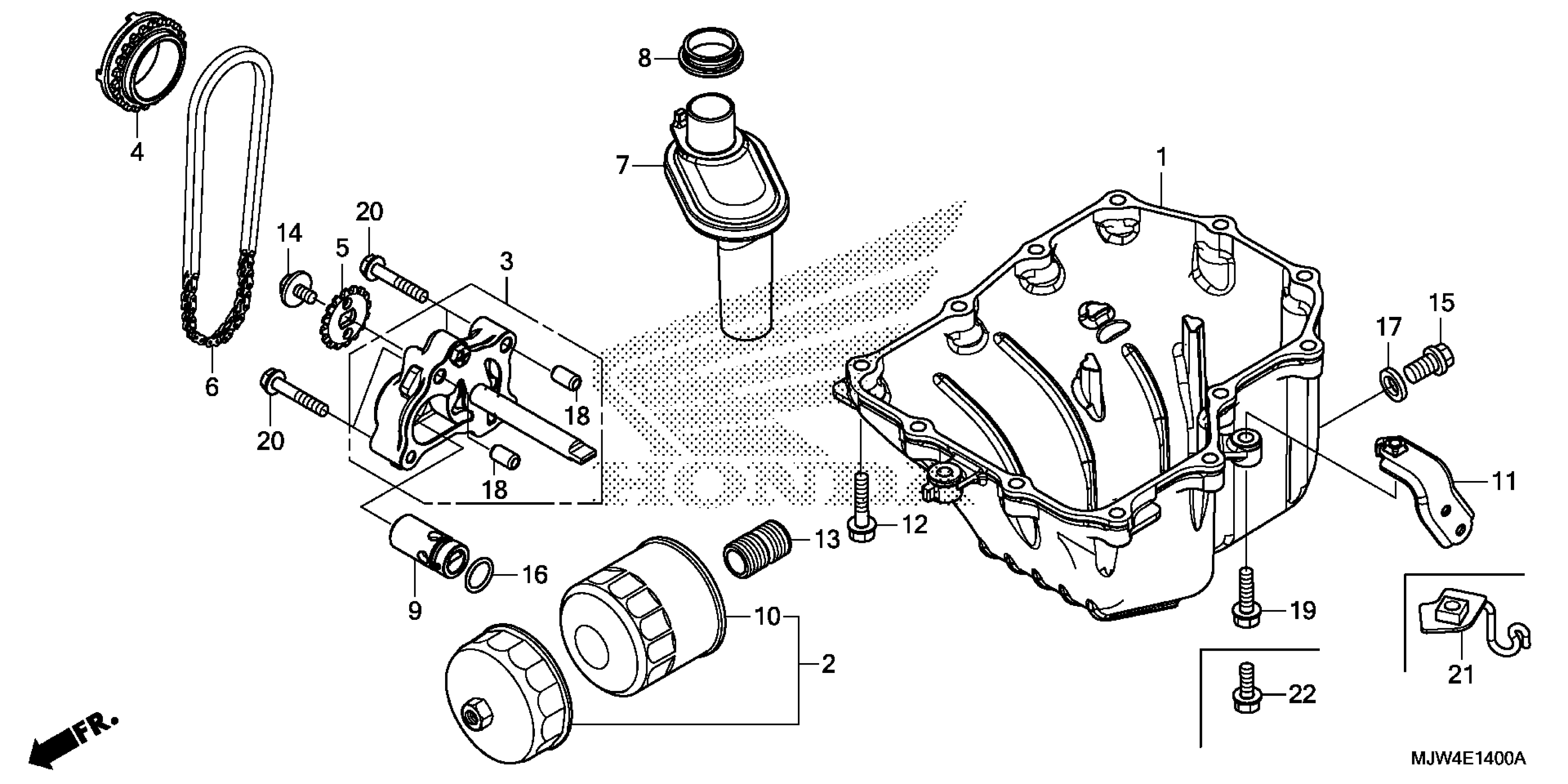

Honda CB500X3A (17) CB500X, THA, VIN# MLHPC466-H5400001 TO MLHPC466-H5499999 OIL PAN@OIL PUMP Diagram

PAN, OIL

11210-MJW-J80

$87.74

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MGZ-J00

$93.67

SPROCKET, OIL PUMP DRIVE (22T)

15131-MGZ-J01

$38.33

SPROCKET, OIL PUMP DRIVEN (16T)

15134-MGZ-J00

$14.20

CHAIN, OIL PUMP (DID 25H-56LE)

15140-MAT-003

$20.18

STRAINER, OIL

15150-MGZ-J00

$13.56

GASKET, OIL STRAINER

15154-MAT-000

$6.16

VALVE ASSY., RELIEF

15220-MGZ-J00

$40.51

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

BOLT, FLANGE (6X28)

90010-MGZ-J00

$1.49

BOSS, OIL FILTER

90019-MGZ-J00

$2.33

BOLT-WASHER (6X12)

90021-MGZ-J00

$4.23

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
