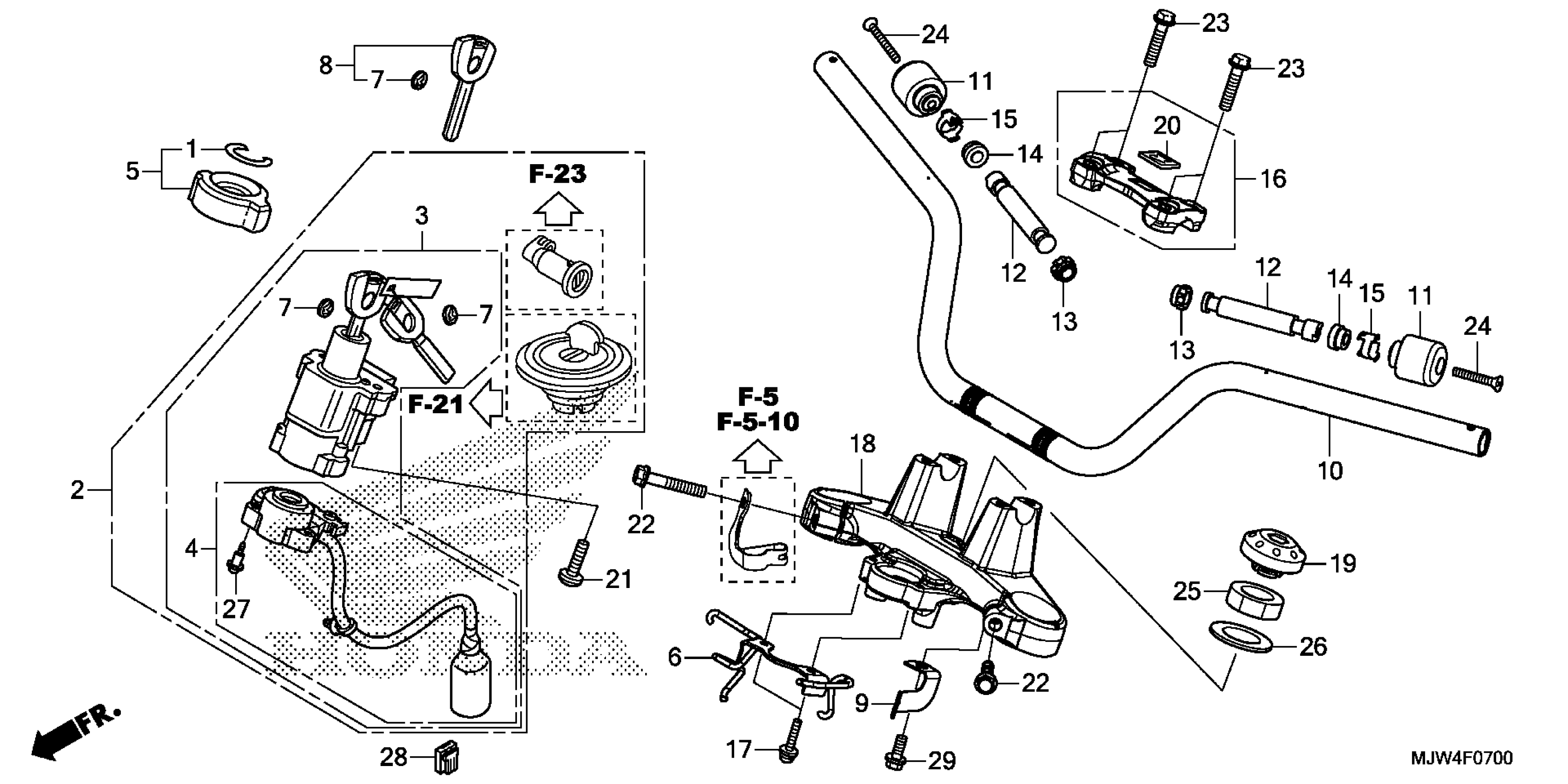

Honda CB500X3A (17) CB500X, THA, VIN# MLHPC466-H5400001 TO MLHPC466-H5499999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

2

LOCK SET This part replaces 35010-MJW-A82.

35010-MJW-A84

$215.51

2

LOCK SET This part replaces 35010-MJW-A83.

35010-MJW-A84

$215.51

3

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$151.24

4

BASE, CONTACT

35101-MJW-D11

$40.60

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

6

GUIDE, CABLE

35106-MGZ-J01

$13.71

7

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

8

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

8

KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MJE-A02RUSH

Unavailable

8

KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MJE-A02STD

Unavailable

9

GUIDE, L. FR. WIRE

35910-MGZ-J00

$2.18

10

HANDLEBAR *NH303M* (COO) (MAT AXIS GRAY METALLIC)

53100-MGZ-307ZA

$42.93

11

WEIGHT, HANDLEBAR

53104-MGZ-J80

$9.05

12

WEIGHT B, HANDLEBAR

53105-MGZ-J80

$6.48

13

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.74

14

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.69

15

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

16

HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)

53130-MGS-D30ZB

$34.96

17

SCREW-WASHER (5X25)

53192-MFL-000

$1.71

18

BRIDGE, FORK TOP

53230-MGZ-J40

$92.29

19

CAP, STEERING NUT

53232-MJW-J00

$23.00

20

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

21

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

22

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.68

23

BOLT, FLANGE (8X35)

90150-MJW-J00

$1.47

24

SCREW, OVAL (6X60)

90191-MGZ-J00

$1.32

25

NUT, STEERING STEM

90304-KGA-900

$2.91

26

WASHER, STEERING STEM

90503-KGA-900

$1.38

27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

28

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

29

BOLT, FLANGE (8X18)

95701-08018-00

$1.66
