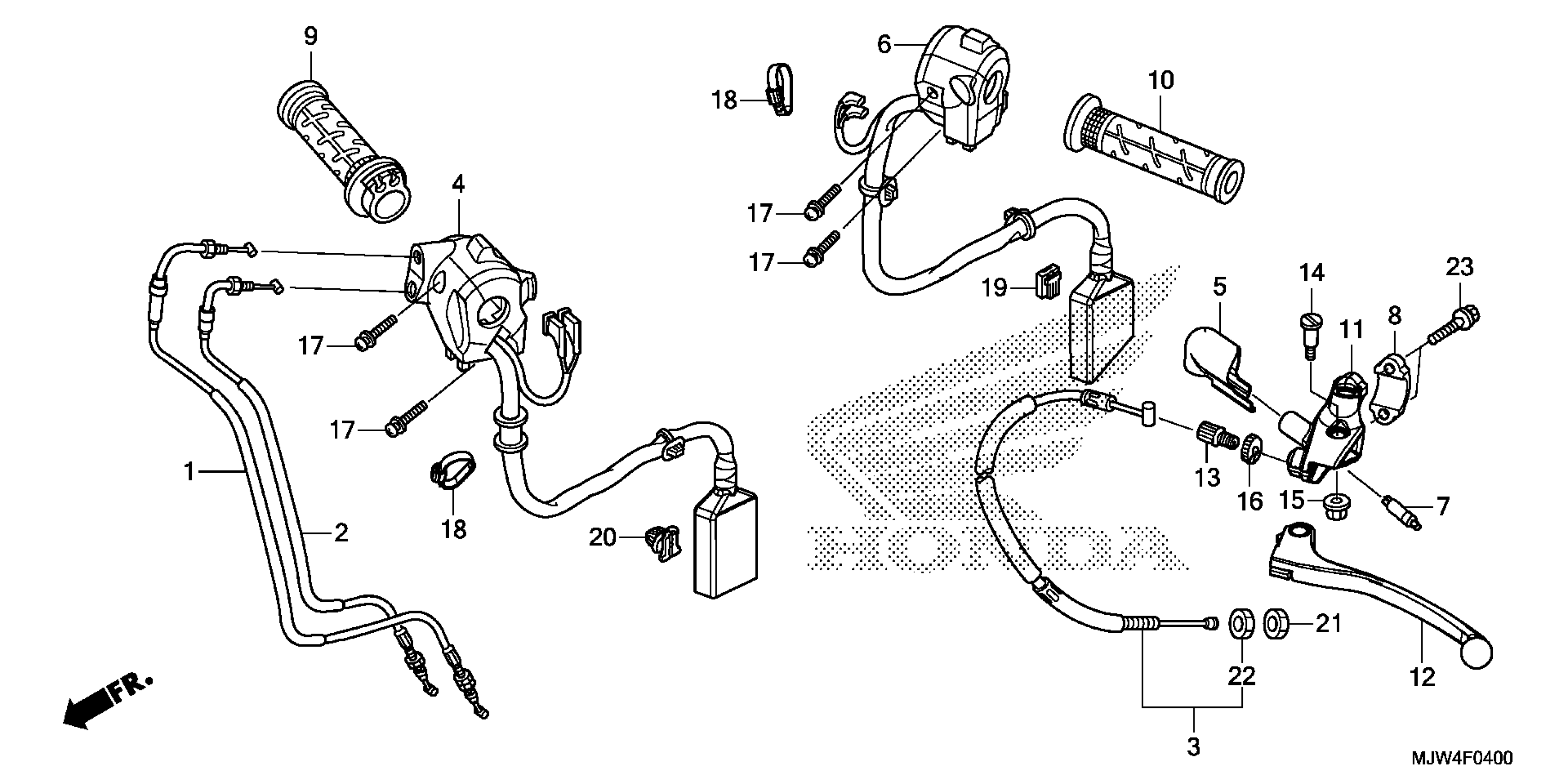

Honda CB500X3A (17) CB500X, THA, VIN# MLHPC466-H5400001 TO MLHPC466-H5499999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MGZ-J81

$13.74

CABLE B, THROTTLE

17920-MGZ-J81

$13.44

CABLE, CLUTCH

22870-MGZ-J81

$16.22

SWASSY,ENGSTOP This part replaces 35130-MJW-A81.

35130-MJW-A82

$42.54

COVER, CLUTCH SWITCH

35152-MGZ-J00

$1.79

SWITCH, TURN SIGNAL This part replaces 35200-MJW-A81.

35200-MJW-A82

$51.12

SWITCH, FR. LEVER

35330-KYJ-901

$6.30

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

GRIP, THROTTLE

53140-MGS-D30

$26.01

GRIP, L. HANDLE

53150-MGS-D30

$11.13

BRACKET, HANDLE LEVER

53172-KYJ-900

$12.76

LEVER, L. HANDLE

53178-MAH-000

$17.39

LEVER, L. HANDLE This part replaces 53178-MFR-305.

53178-MAH-000

$17.39

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

NUT, FIXING

90321-315-670

$6.97

SCREW-WASHER (5X20)

90507-MGZ-J00

$0.46

BAND, WIRE

90650-KW3-000

$4.28

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

CLIP, CONNECTOR (ORANGE)

91580-SM4-003

$6.47

NUT, HEX. (8MM)

94002-08070-0S

$1.21

NUT, HEX. (8MM)

94030-08070

$0.44

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
