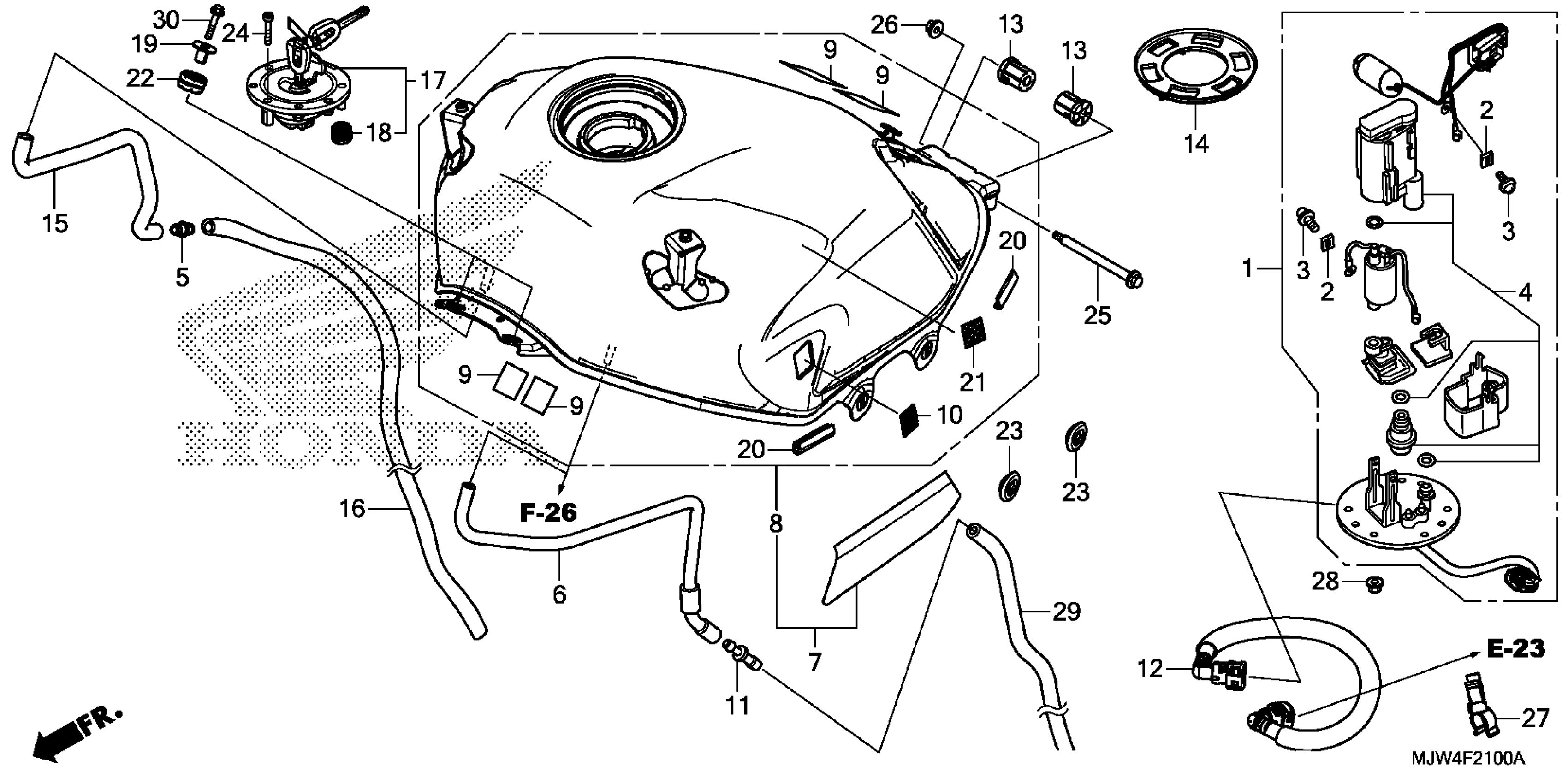

Honda CB500X3A (17) CB500X, THA, VIN# MLHPC466-H5400001 TO MLHPC466-H5499999 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

UNIT, FUEL PUMP This part replaces 16700-MJW-J81.

16700-MJW-J83

$536.01

1

UNIT, FUEL PUMP This part replaces 16700-MJW-J82.

16700-MJW-J83

$536.01

2

STOPPER

16711-MGS-D31

$4.47

3

SCREW (4X6.6)

16712-MGS-D31

$1.74

4

FILTER ASSY., FUEL This part replaces 16730-MJW-J81.

16730-MKT-D01

$38.84

4

FILTER ASSY., FUEL This part replaces 16730-MJW-J82.

16730-MKT-D01

$38.84

5

JOINT, BREATHER TUBE

17359-419-670

$1.90

6

TUBE, FUEL TANK BREATHER

17418-MGZ-J00

$9.82

7

TANK ASSY., FUEL (TYPE1) (WL)

17500-MJW-DM0ZF

$562.91

9

TAPE B, TANK GUARD

17528-KCZ-930

$3.44

10

FASTENER D, DUAL LOCK (20X20)

17542-MJE-D40

$1.96

11

JOINT, FUEL TUBE

17561-KVG-900

$1.78

12

HOSE, FUEL FEED

17570-MJW-J01

$43.59

13

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.13

14

GASKET, BASE

17574-MGS-D30

$22.44

15

TUBE, FUEL TANK DRAIN

17590-MGZ-J00

$7.99

16

TUBE, FUEL TANK DRAIN

17591-MJW-J00

$5.41

17

CAP COMP This part replaces 17620-MJE-D02.

17620-MJE-D04

$205.01

18

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.90

19

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

20

RUBBER, PROTECTOR

64122-MCZ-000

$1.66

21

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.83

22

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

23

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

24

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.88

25

BOLT, TANK HINGE

90135-MS2-000

$5.95

26

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

27

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.09

28

NUT, FLANGE (6MM)

94050-06000

$0.60

29

BULK HOSE (7.3X1000)

95005-75001-20M

$26.09

30

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable
