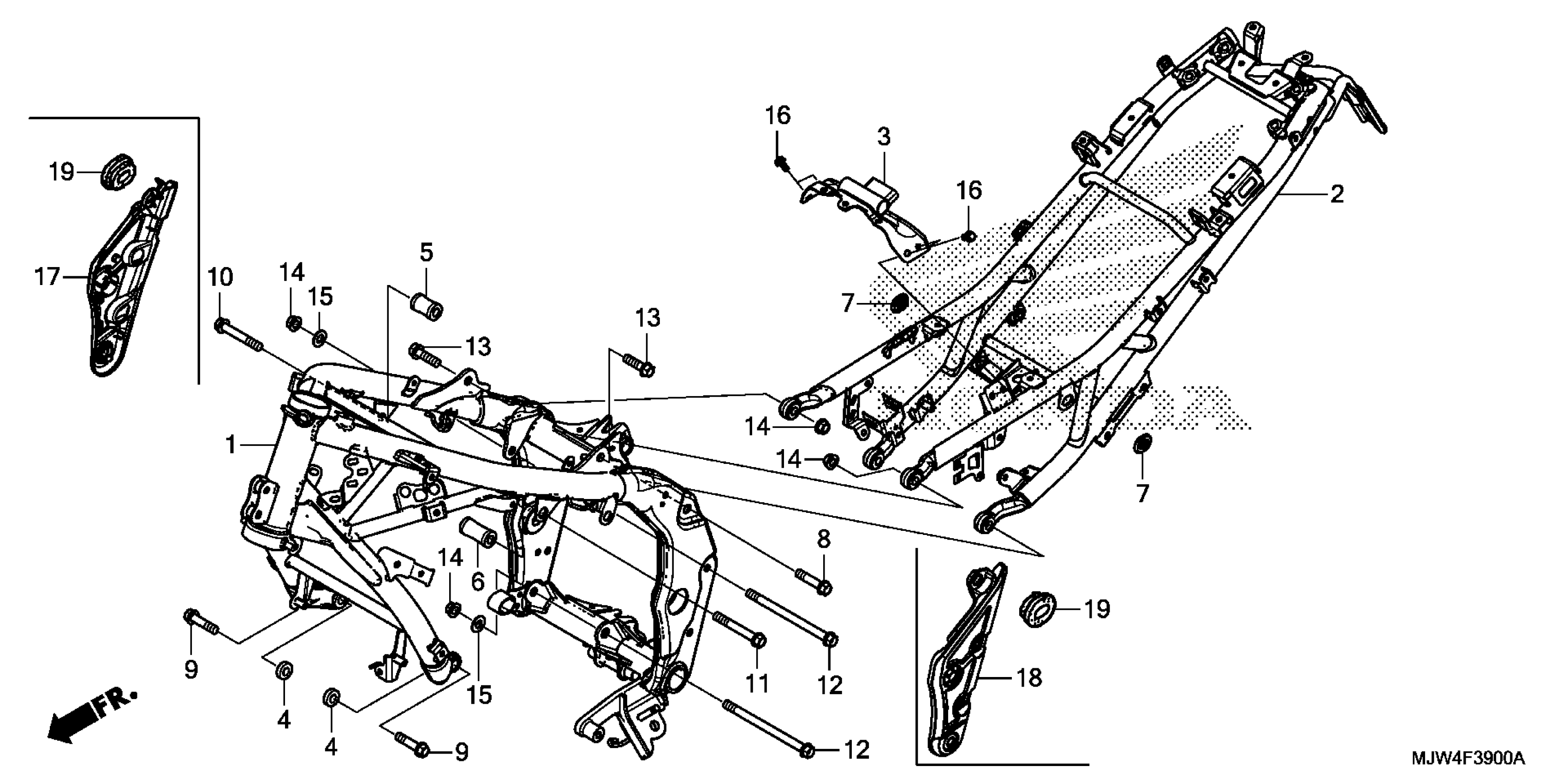

Honda CB500X3A (17) CB500X, THA, VIN# MLHPC466-H5400001 TO MLHPC466-H5499999 FRAME Diagram

FRAME *NH303M* (MAT AXIS GRAY METALLIC)

50100-MJW-CM0ZA

$472.44

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)

50240-MGZ-J82ZA

$234.93

BRACKET, FUEL TANK

50295-MGZ-J00

$11.32

COLLAR A, ENGINE HANGER

50351-MGZ-J01

$4.02

COLLAR B, R. ENGINE HANGER

50353-MGZ-J00

$6.82

COLLAR B, L. ENGINE HANGER

50354-MGZ-J00

$7.82

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

BOLT, FLANGE (10X45)

90101-KTB-000

$4.13

BOLT, FLANGE (10X40)

90101-MGZ-J00

$1.84

BOLT, FLANGE (10X65)

90102-MGZ-J00

$1.78

BOLT, FLANGE (10X75)

90103-MGZ-J00

$2.07

BOLT, FLANGE (10X146)

90104-KYJ-900

$2.97

BOLT, FLANGE (10X35)

90168-S2A-010

$5.87

NUT, FLANGE (10MM)

94050-10000

$1.43

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.74

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

COVER, R. PIVOT

50401-MJW-DK0

$12.90

COVER, L. PIVOT

50451-MJW-DK0

$13.49

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.86
