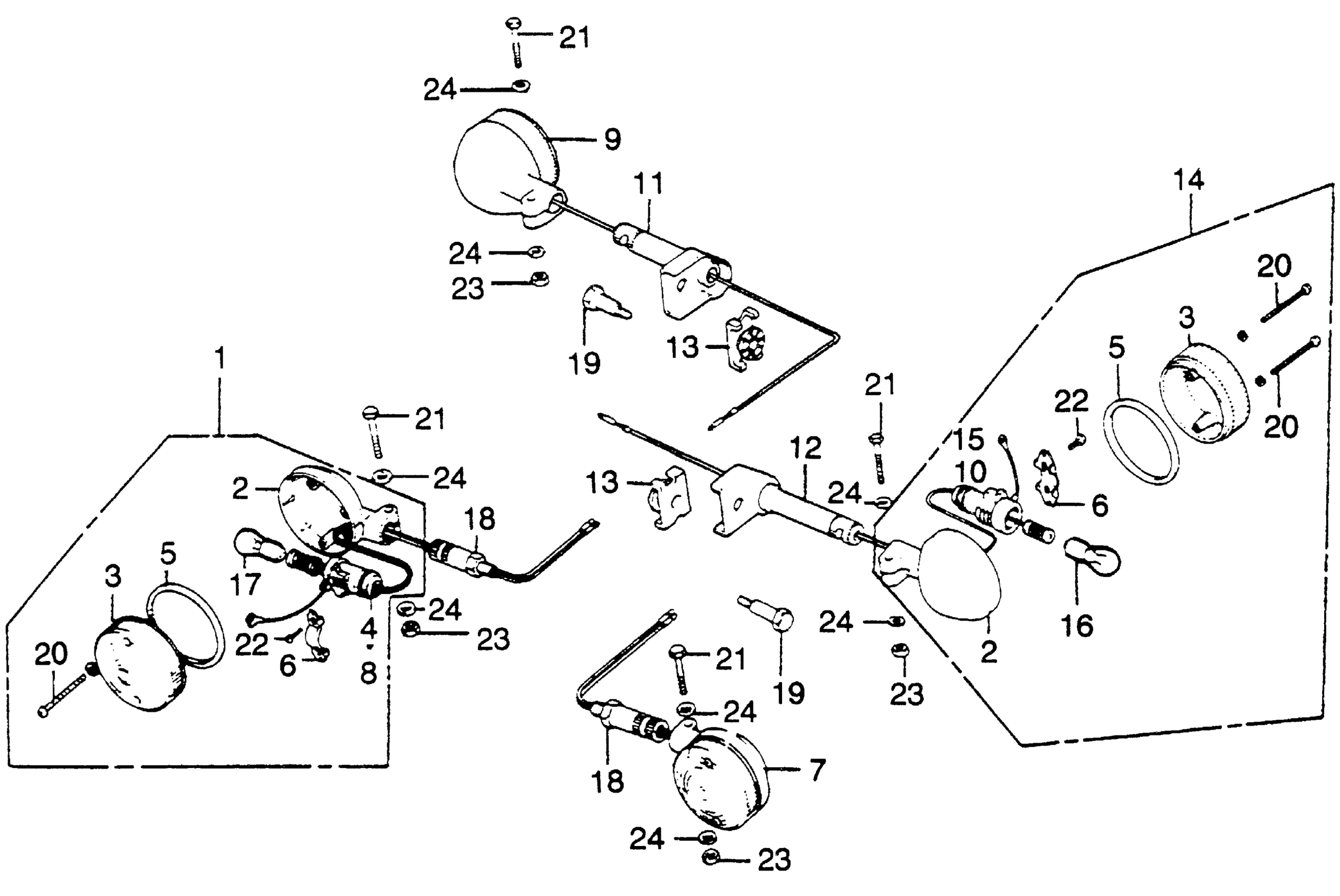

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

1

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

2

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

3

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

4

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

5

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

6

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

7

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33450-377-671.

33400-461-679

Unavailable

8

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

9

TURN SIGNAL, R. RR.

33600-377-671

Unavailable

10

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33605-377-671

Unavailable

11

STAY, R. RR. TURN SIGNAL

33606-375-670

Unavailable

12

STAY, L. RR. TURN SIGNAL

33607-375-670

Unavailable

13

RUBBER, RR. TURN SIGNAL MOUNT (NOT AVAILABLE) This part replaces 33608-375-000.

33608-292-020

Unavailable

14

TURN SIGNAL ASSY., L. RR.

33650-375-671

Unavailable

15

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33655-375-671

Unavailable

16

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

17

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

17

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

18

BOLT, FR. TURN SIGNAL (NOT AVAILABLE)

90129-375-670

Unavailable

19

BOLT, RR. FENDER MOUNT (NOT AVAILABLE)

90156-292-671

Unavailable

20

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

20

SCREW, PAN (4X25)

93500-04025-0A

$1.93

21

BOLT, HEX. (6X35) (NOT AVAILABLE)

92000-06035-02

Unavailable

22

SCREW, PAN (3X6)

93500-03006-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49
