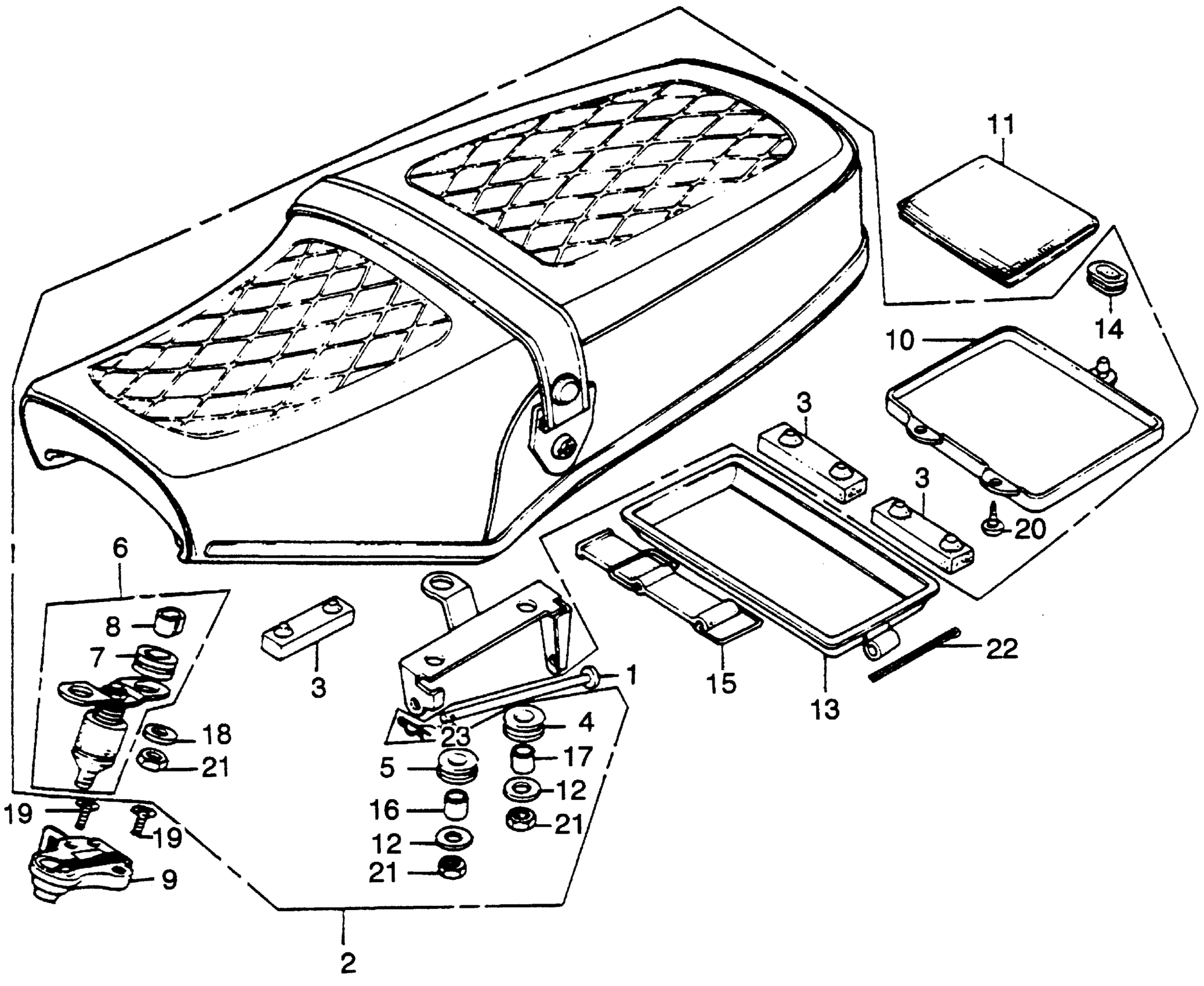

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 SEAT Diagram

#

Description
Price

1

BAR, SEAT HINGE (NOT AVAILABLE)

77103-369-000

Unavailable

2

SEAT ASSY. (NOT AVAILABLE)

77200-375-000

Unavailable

3

RUBBER B, SEAT SETTING

77205-286-000

$5.28

4

RUBBER A, SEAT MOUNT (NOT AVAILABLE)

77206-375-000

Unavailable

5

RUBBER B, SEAT

77207-375-000

Unavailable

6

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

6

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

6

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

7

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

7

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

7

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

8

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

8

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

8

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

9

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-377-003.

77230-399-007

Unavailable

9

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-007.

77230-399-007

Unavailable

9

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

9

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

10

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

11

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

12

WASHER, SEAT SETTING

77302-124-000

$3.23

13

BOX, TOOL (NOT AVAILABLE)

83500-375-000

Unavailable

14

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

15

BAND, SIDE COVER

83606-356-000

$23.26

16

COLLAR, RR. FENDER

84705-310-000

$1.72

17

COLLAR, NUMBER BRACKET

84706-310-000

Unavailable

18

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

18

WASHER, PLAIN (6MM)

94103-06800

$1.49

19

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

19

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$1.49

20

SCREW, TAPPING (5X8)

93901-25080

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

PIN, COTTER (2.5X45)

94201-25450

Unavailable

23

PIN, LOCK (6MM)

94251-06000

$1.49
