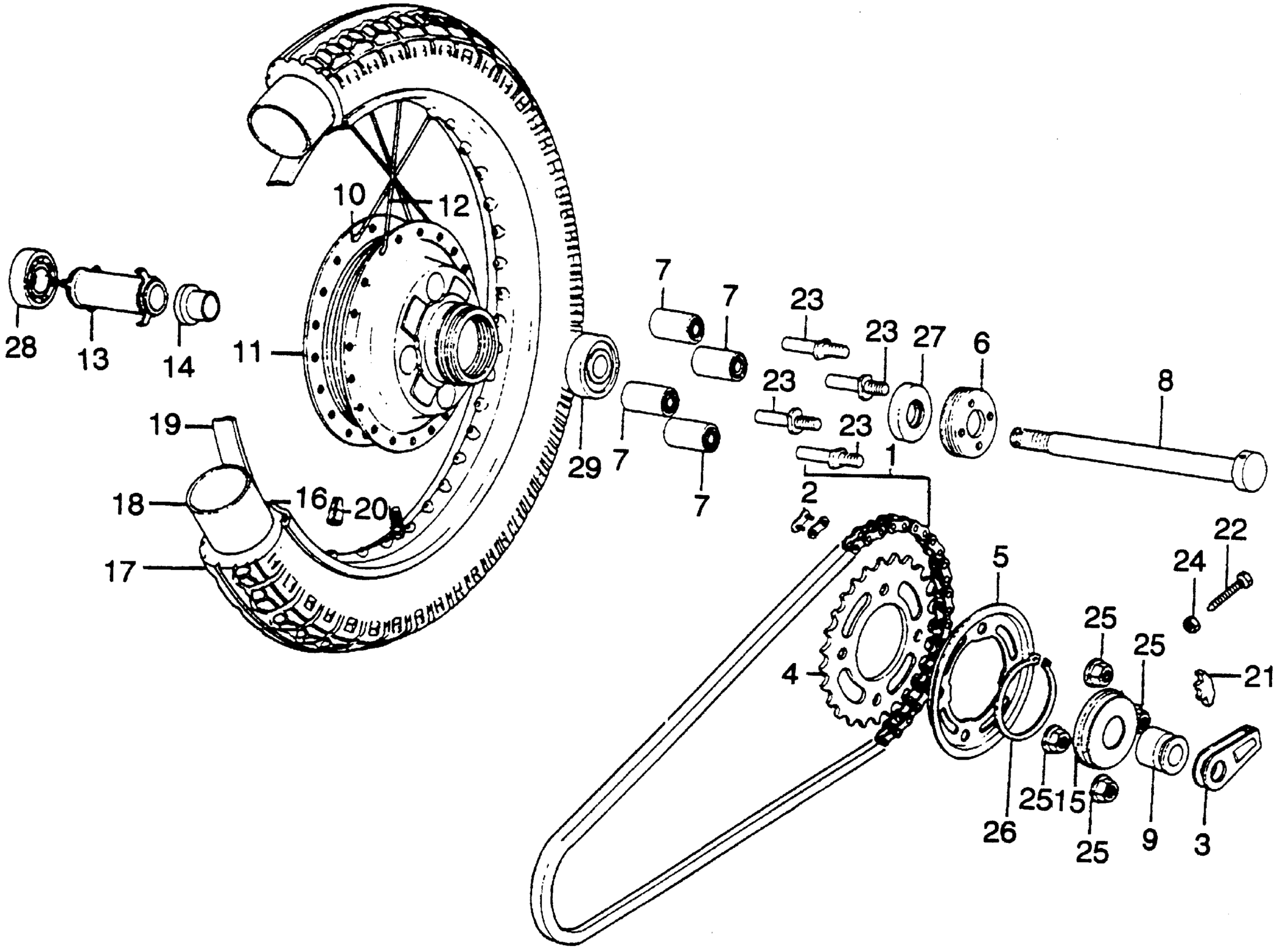

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (DID50HDS-96LE) (NOT AVAILABLE)

40530-375-305

Unavailable

2

MASTER LINK (STAKING TYPE) (NOT AVAILABLE)

40531-341-305

Unavailable

3

ADJUSTER, CHAIN This part replaces 40532-283-010.

95014-18000

$20.48

3

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

4

SPROCKET, FINAL DRIVEN (33T)

41201-375-000

Unavailable

5

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-375-000

Unavailable

6

RETAINER, RR. WHEEL BEARING

41231-283-000

Unavailable

7

BUSH, RR. WHEEL DAMPER (NOT AVAILABLE)

41241-283-010

Unavailable

8

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-292-000.

42301-292-010

Unavailable

8

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-292-010

Unavailable

9

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-283-000

Unavailable

10

SPOKE A, RR.

42601-283-000

Unavailable

11

HUB, RR. WHEEL

42602-292-010

Unavailable

12

SPOKE B, RR.

42604-283-000

Unavailable

13

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-292-000

Unavailable

14

COLLAR B, RR. AXLE DISTANCE (NOT AVAILABLE)

42625-283-000

Unavailable

15

CAP, BEARING RETAINER (NOT AVAILABLE)

42633-283-000

Unavailable

16

RIM, RR. WHEEL (18) (DAIDO) (NOT AVAILABLE) This part replaces 42701-283-003.

42701-404-771

Unavailable

16

RIM, RR. WHEEL (18) (DAIDO) (NOT AVAILABLE)

42701-404-771

Unavailable

17

TIRE, RR. (3.75S-18) (BS) (NOT AVAILABLE) This part replaces 42711-374-003.

42711-375-671

Unavailable

17

TIRE, RR. (3.75S-18) (BS) (NOT AVAILABLE)

42711-375-671

Unavailable

18

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

18

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

18

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

18

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

18

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

18

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

18

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

18

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

19

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

20

BALANCER, WHEEL (20G)

44606-283-000

$8.89

20

BALANCER, WHEEL (15G)

44607-283-000

$8.08

20

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

20

BALANCER, WHEEL (5G)

44609-283-000

$3.93

21

STOPPER, ADJUSTER (NOT AVAILABLE)

52136-375-000

Unavailable

22

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

23

BOLT, DRIVEN SPROCKET FIXING (NOT AVAILABLE)

90128-375-000

Unavailable

24

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

25

NUT, FLANGE (12MM)

90309-375-003

$8.61

26

CIRCLIP (73.8MM) (NOT AVAILABLE)

90665-283-000

Unavailable

27

OIL SEAL (34X55X9)

90753-283-000

$16.11

28

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

29

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable
