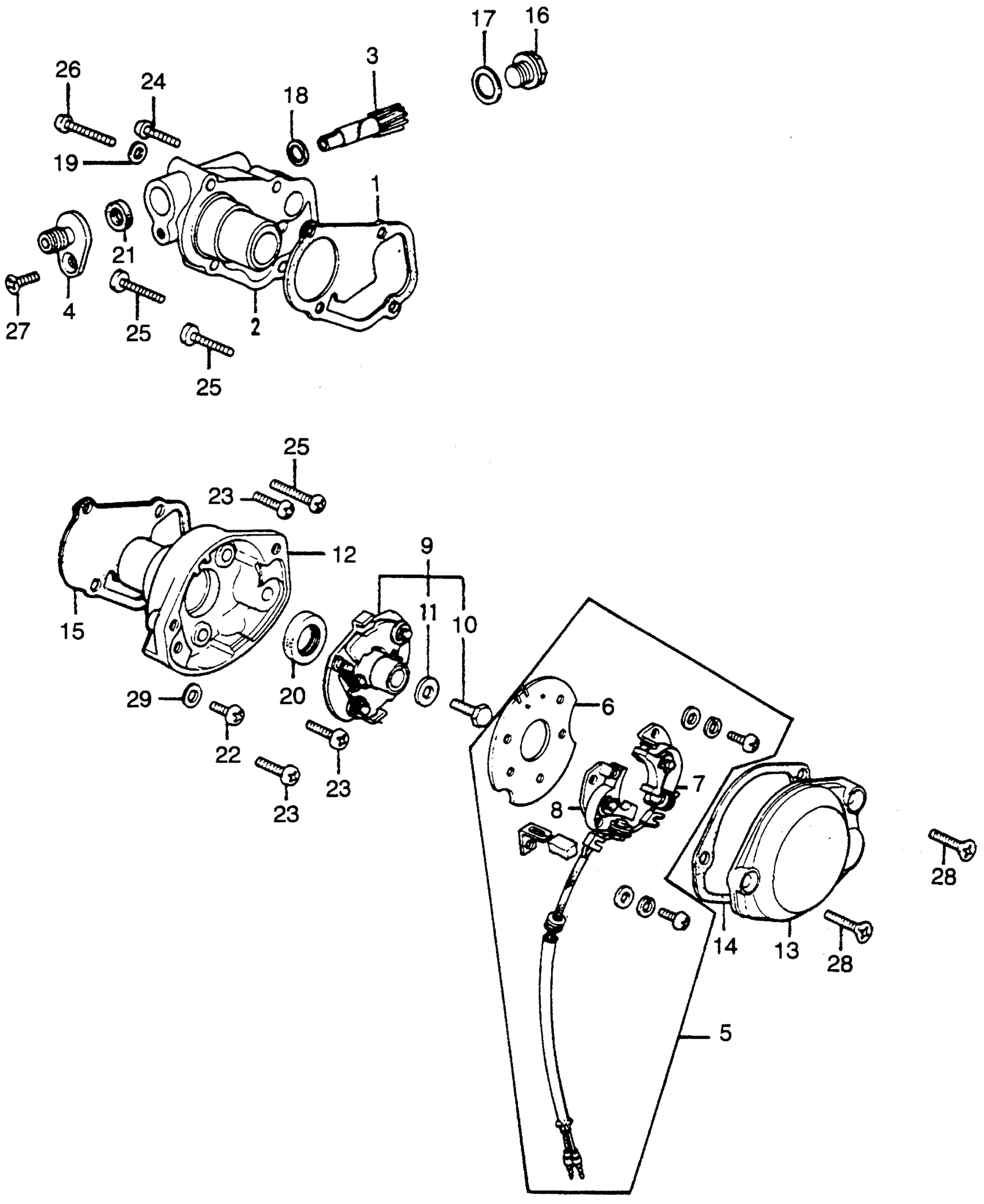

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 POINTS + SPARK ADVANCER Diagram

#

Description
Price

1

GASKET COVER This part replaces 12394-283-000.

12394-283-306

Unavailable

1

GASKET COVER

12394-283-306

Unavailable

2

BOX, TACHOMETER GEAR (NOT AVAILABLE)

12411-319-000

Unavailable

3

GEAR, TACHOMETER (NOT AVAILABLE)

12431-292-000

Unavailable

4

CAP A, TACHOMETER

12451-283-000

Unavailable

5

POINTS ASSY. (TOYO) (NOT AVAILABLE)

30200-292-154

Unavailable

6

PLATE, POINTS BASE (TOYO) (NOT AVAILABLE)

30201-292-154

Unavailable

7

POINTS, R. (KOKUSAN)

30203-292-003

$36.07

7

POINTS, R. (KOKUSAN) This part replaces 30203-292-154.

30203-292-003

$36.07

8

POINTS, L. (KOKUSAN)

30204-292-003

$37.41

8

POINTS, L. (KOKUSAN) This part replaces 30204-292-154.

30204-292-003

$37.41

9

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-375-154

Unavailable

10

BOLT, SPARK ADVANCER SETTING (NOT AVAILABLE)

30225-246-004

Unavailable

11

WASHER, SPARK ADVANCER SETTING (NOT AVAILABLE)

30226-246-004

Unavailable

12

BASE, POINTS

30361-292-000

Unavailable

13

COVER, POINTS

30371-283-010

Unavailable

14

GASKET, POINTS COVER This part replaces 30391-283-010.

30391-283-306

Unavailable

15

GASKET, POINTS BASE This part replaces 30392-283-000.

30392-283-306

$1.85

16

BOLT, SEALING (16MM)

90082-283-000

Unavailable

17

WASHER, SEALING (16MM)

90443-283-000

Unavailable

18

WASHER, THRUST (7MM)

90451-292-000

Unavailable

19

WASHER A (6MM)

90478-700-000

$1.49

20

OIL SEAL (18X28X6)

91202-283-013

$12.69

21

OIL SEAL (7X14) (5X5)

91207-222-000

Unavailable

22

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

23

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

23

SCREW, PAN (6X22)

93500-06022-0A

$1.49

24

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

24

SCREW, PAN (6X28)

93500-06028-0A

$1.49

25

SCREW, PAN (6X35)

93500-06035-0A

$1.49

25

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

26

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

26

SCREW, PAN (6X40)

93500-06040-0A

$1.49

27

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

28

SCREW, OVAL (6X25) This part replaces 93700-06025.

93700-06025-0A

$1.49

28

SCREW, OVAL (6X25)

93700-06025-0A

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49
