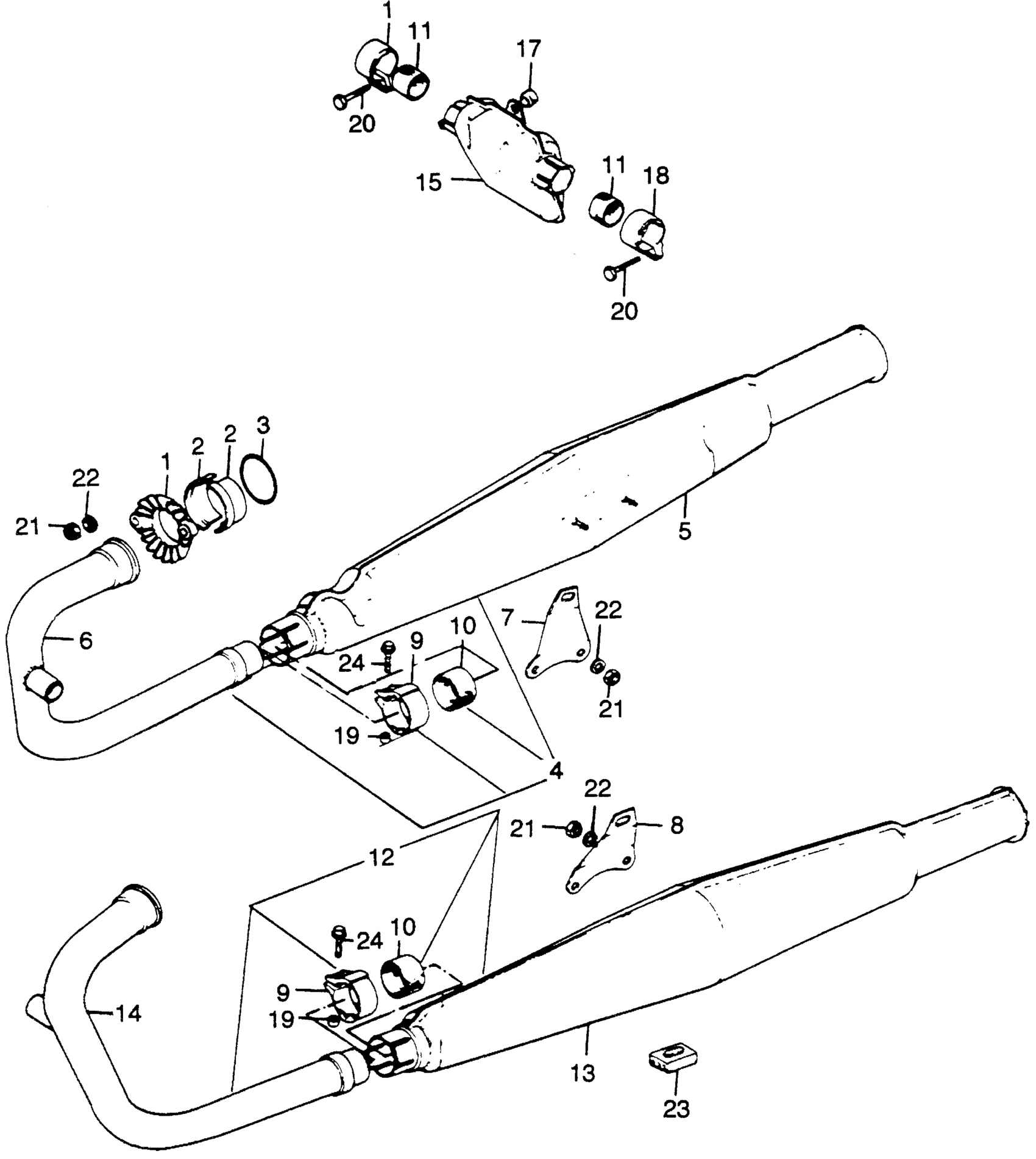

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-292-020

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-283-010

Unavailable

3

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-010.

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-306.

18291-MM8-880

$7.16

4

MUFFLER, R. EX.

18300-375-000

Unavailable

5

MUFFLER, R. (NOT AVAILABLE) This part replaces 18310-375-003.

18310-375-007

Unavailable

5

MUFFLER, R. (NOT AVAILABLE)

18310-375-007

Unavailable

6

PIPE, R. EX. (NOT AVAILABLE)

18320-375-003

Unavailable

7

BRACKET, R. MUFFLER (NOT AVAILABLE)

18353-375-000

Unavailable

8

BRACKET, L. MUFFLER (NOT AVAILABLE)

18354-375-000

Unavailable

9

BAND, MUFFLER (NOT AVAILABLE)

18372-375-300

Unavailable

10

GASKET, MUFFLER This part replaces 18391-292-300.

18392-MK5-000

Unavailable

10

GASKET, MUFFLER

18392-MK5-000

Unavailable

11

GASKET, MUFFLER

18391-ML8-000

$9.49

11

GASKET, MUFFLER This part replaces 18391-375-000.

18391-ML8-000

$9.49

12

MUFFLER, L. EX. (NOT AVAILABLE)

18400-375-010

Unavailable

13

MUFFLER, L. (NOT AVAILABLE) This part replaces 18410-375-013.

18410-375-017

Unavailable

13

MUFFLER, L. (NOT AVAILABLE)

18410-375-017

Unavailable

14

PIPE, L. EX.

18420-375-003

Unavailable

15

PRE CHAMBER (SANKEI) (NOT AVAILABLE)

18430-375-003

Unavailable

16

BAND, R. PRE CHAMBER (NOT AVAILABLE)

18431-375-000

Unavailable

17

RUBBER, PRE CHAMBER (NOT AVAILABLE)

18433-375-000

Unavailable

18

BAND, L. PRE CHAMBER (NOT AVAILABLE)

18434-375-000

Unavailable

19

NUT, SPECIAL (8MM) (NOT AVAILABLE)

90315-286-300

Unavailable

20

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

20

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49

23

RUBBER A, STAND STOPPER

95011-61000

$1.49

24

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

24

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
