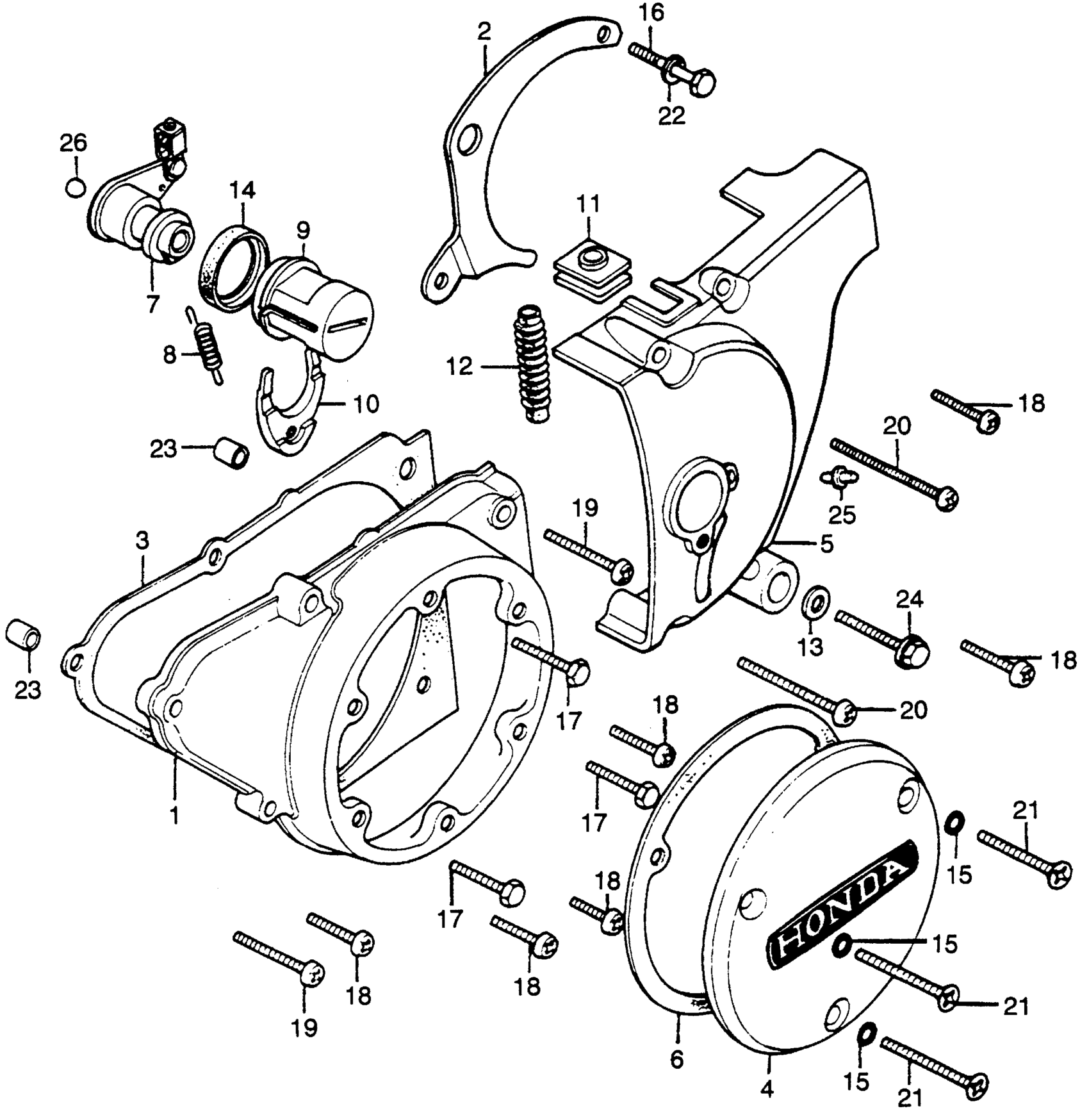

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-292-000

Unavailable

2

PROTECTOR, CASE (NOT AVAILABLE)

11353-375-000

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-283-000.

11395-283-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-283-306

Unavailable

4

COVER, ALTERNATOR (NOT AVAILABLE)

11431-346-000

Unavailable

5

COVER, DRIVE CHAIN (NOT AVAILABLE)

11660-292-030

Unavailable

6

GASKET, ALTERNATOR COVER This part replaces 11691-283-000.

11691-283-306

Unavailable

6

GASKET, ALTERNATOR COVER

11691-283-306

Unavailable

7

THREAD, CLUTCH LIFTER (NOT AVAILABLE)

22810-283-000

Unavailable

8

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-283-000

Unavailable

9

ADJUSTER, CLUTCH

22841-266-000

Unavailable

10

PIECE, ADJUSTER FIXING

22844-200-010

Unavailable

11

JOINT, CLUTCH CABLE (NOT AVAILABLE)

22875-283-000

Unavailable

12

BOOT, CLUTCH WIRE (NOT AVAILABLE)

22876-283-000

Unavailable

13

WASHER, THRUST (6.5MM) (NOT AVAILABLE)

90485-001-000

Unavailable

14

OIL SEAL (22X26X29X8) This part replaces 91205-200-000.

91205-200-005

Unavailable

14

OIL SEAL (22X26X29X8)

91205-200-005

Unavailable

15

O-RING (4.9X2.5) This part replaces 91301-283-000.

91301-426-010

$3.60

15

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

15

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

15

O-RING (4.9X2.5)

91301-426-010

$3.60

16

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

16

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

16

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

17

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

17

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

17

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

18

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

18

SCREW, PAN (6X28)

93500-06028-0A

$1.49

19

SCREW, PAN (6X35)

93500-06035-0A

$1.49

19

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

20

SCREW, PAN (6X60)

93500-06060-0A

$1.49

20

SCREW, PAN (6X60) This part replaces 93500-06063.

93500-06060-0A

$1.49

21

SCREW, OVAL (6X45) This part replaces 93700-06045.

93700-06045-0A

$1.39

21

SCREW, OVAL (6X45) This part replaces 93715-06045.

93700-06045-0A

$1.39

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

PIN A, DOWEL (10X14)

94301-10140

$2.28

24

BOLT, FLANGE (6X45) This part replaces 95700-06045.

95701-06045-07

$2.06

24

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

24

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

24

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

25

FITTING, GREASE (A.45)

96201-30001

$1.49

26

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
