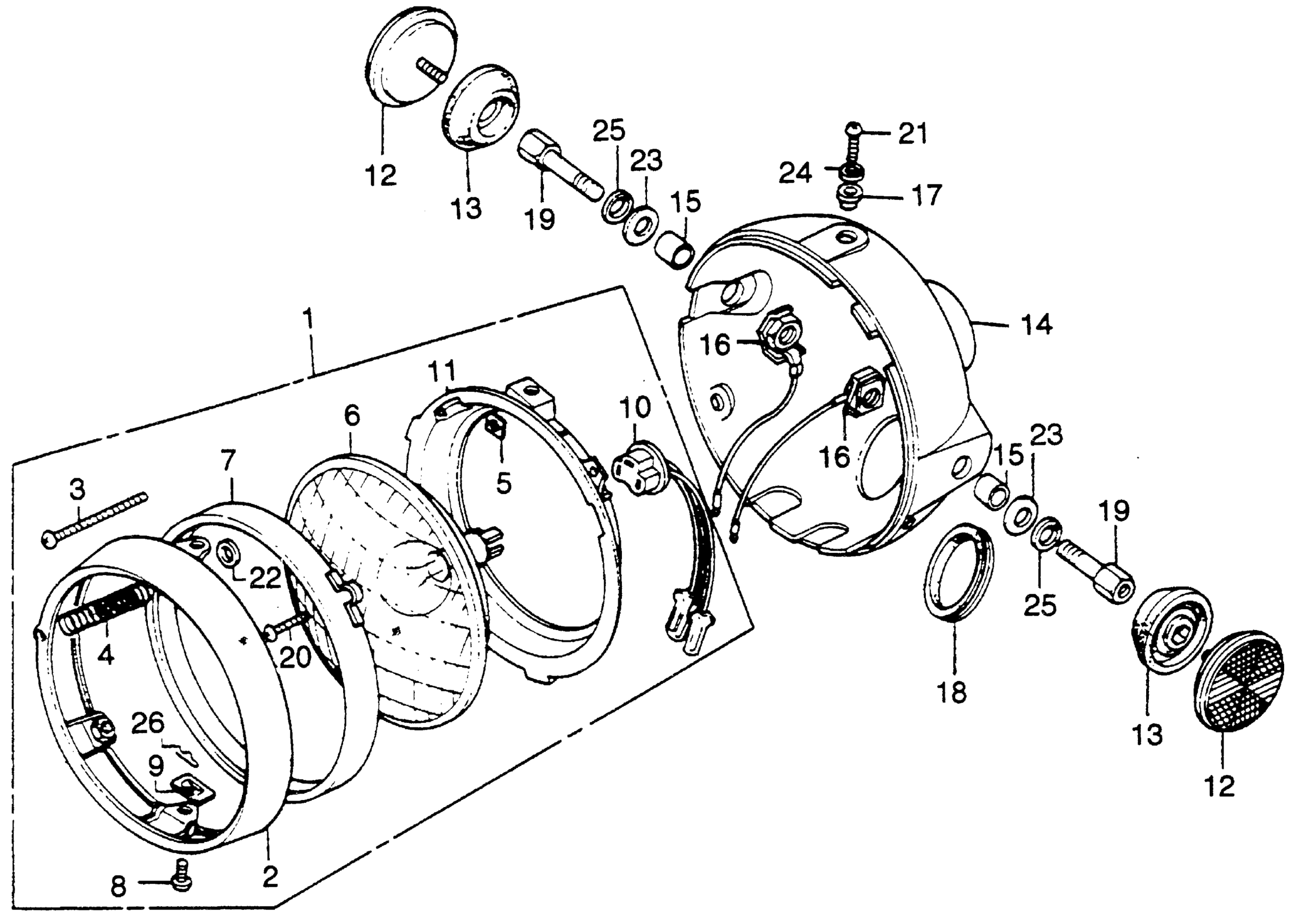

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 HEADLIGHT + HEADLIGHT CASE Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 50/35W) (NOT AVAILABLE)

33100-375-671

Unavailable

2

RIM, HEADLIGHT This part replaces 33101-300-673.

33101-405-671

$71.39

2

RIM, HEADLIGHT

33101-405-671

$71.39

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

HEADLIGHT UNIT (12V 50/35W) (NOT AVAILABLE)

33120-346-671

Unavailable

7

RING, RETAINING (NOT AVAILABLE)

33121-375-671

Unavailable

8

SCREW, UNIT HOLDER

33125-292-670

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-300-671.

33130-300-003

Unavailable

11

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

12

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

13

BASE, FR. REFLECTOR

33743-375-000

Unavailable

14

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK)

61301-375-003B

Unavailable

15

COLLAR, HEADLIGHT CASE

61302-300-000

Unavailable

16

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

17

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

18

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61306-333-003

Unavailable

19

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-377-000

Unavailable

20

SCREW, PAN (3X12) (NOT AVAILABLE)

93500-03012-3B

Unavailable

21

SCREW, PAN (5X16)

93500-05016-0B

$1.49

22

WASHER, PLAIN (4MM)

94101-04000

$1.49

23

WASHER, PLAIN (10MM)

94101-10200

$1.49

24

WASHER, SPRING (5MM)

94111-05000

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

PIN, LOCK (5MM)

94251-05000

$1.49
