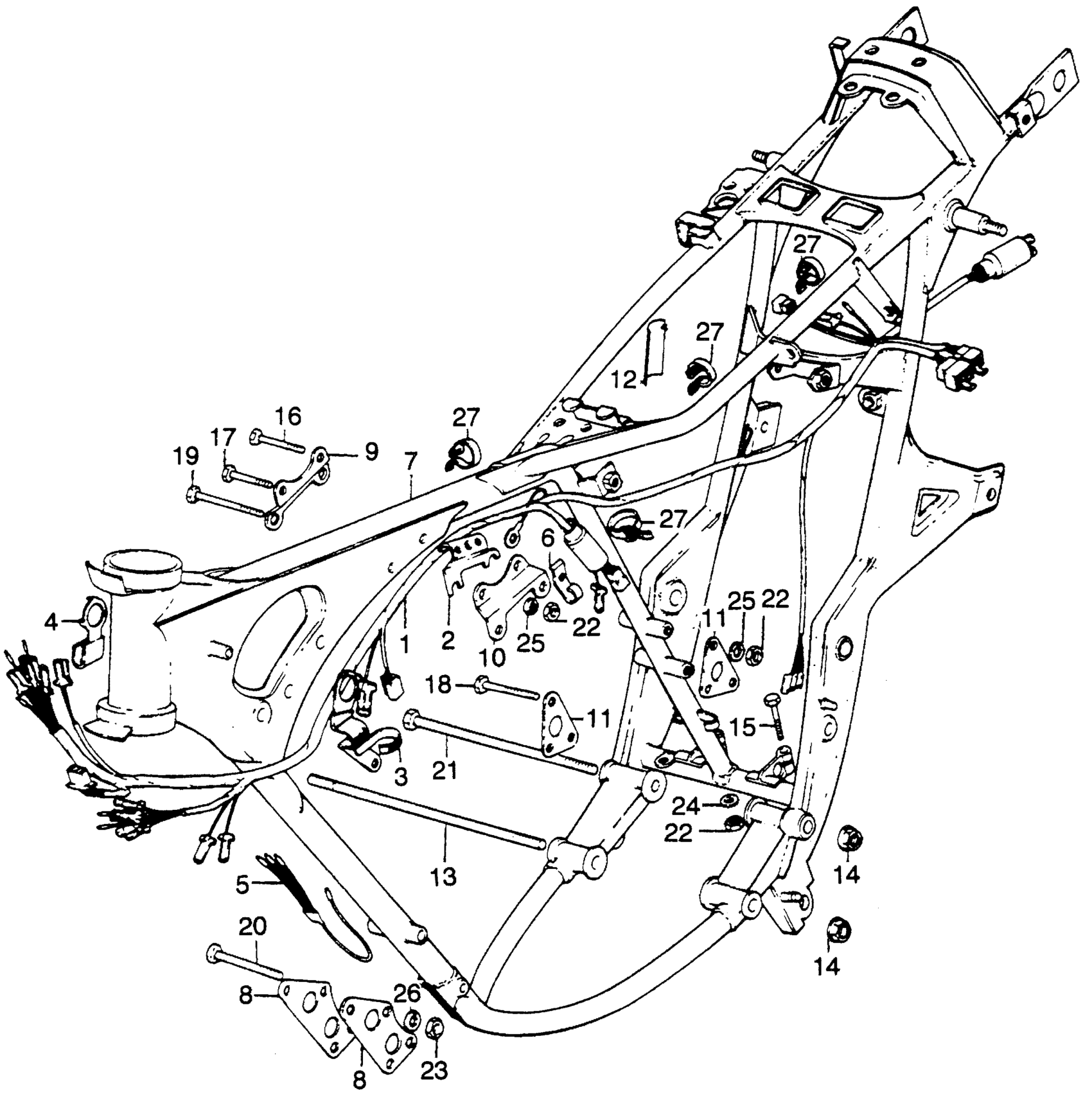

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 FRAME + WIRE HARNESS Diagram

#

Description
Price

1

WIRE HARNESS

32100-375-000

Unavailable

2

CLIP A, WIRE HARNESS

32120-375-000

Unavailable

3

CLIP B, WIRE HARNESS (NOT AVAILABLE)

32121-375-000

Unavailable

4

CLIP C, WIRE HARNESS

32122-375-000

Unavailable

5

SUB-WIRE, HARNESS (NOT AVAILABLE)

32200-375-000

Unavailable

6

CLAMP, COIL WIRE (NOT AVAILABLE)

32957-292-000

Unavailable

7

FRAME *NH1* (BLACK)

50100-375-671B

Unavailable

8

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-283-010B

Unavailable

9

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50354-292-010B

Unavailable

10

PLATE, L. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50355-292-000B

Unavailable

11

PLATE, RR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50356-283-000B

Unavailable

12

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

13

BOLT, ENGINE HANGER (NOT AVAILABLE)

90106-292-010

Unavailable

14

NUT, FLANGE (12MM)

90309-375-003

$8.61

15

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

16

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

$2.25

16

BOLT, HEX. (8X65)

92101-08065-0A

$2.25

17

BOLT, HEX. (8X57) (NOT AVAILABLE)

92200-08057-0A

Unavailable

18

BOLT, HEX. (8X70) (NOT AVAILABLE)

92200-08070-0A

Unavailable

19

BOLT, HEX. (8X87) (NOT AVAILABLE)

92200-08087-0A

Unavailable

20

BOLT, HEX. (10X90) (NOT AVAILABLE)

92200-10090-0A

Unavailable

21

BOLT, HEX. (12X275) (NOT AVAILABLE)

92200-12275-0A

Unavailable

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

NUT, HEX. (10MM)

94001-10000-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

BAND B3, CABLE HARNESS

95014-62300

$2.25
