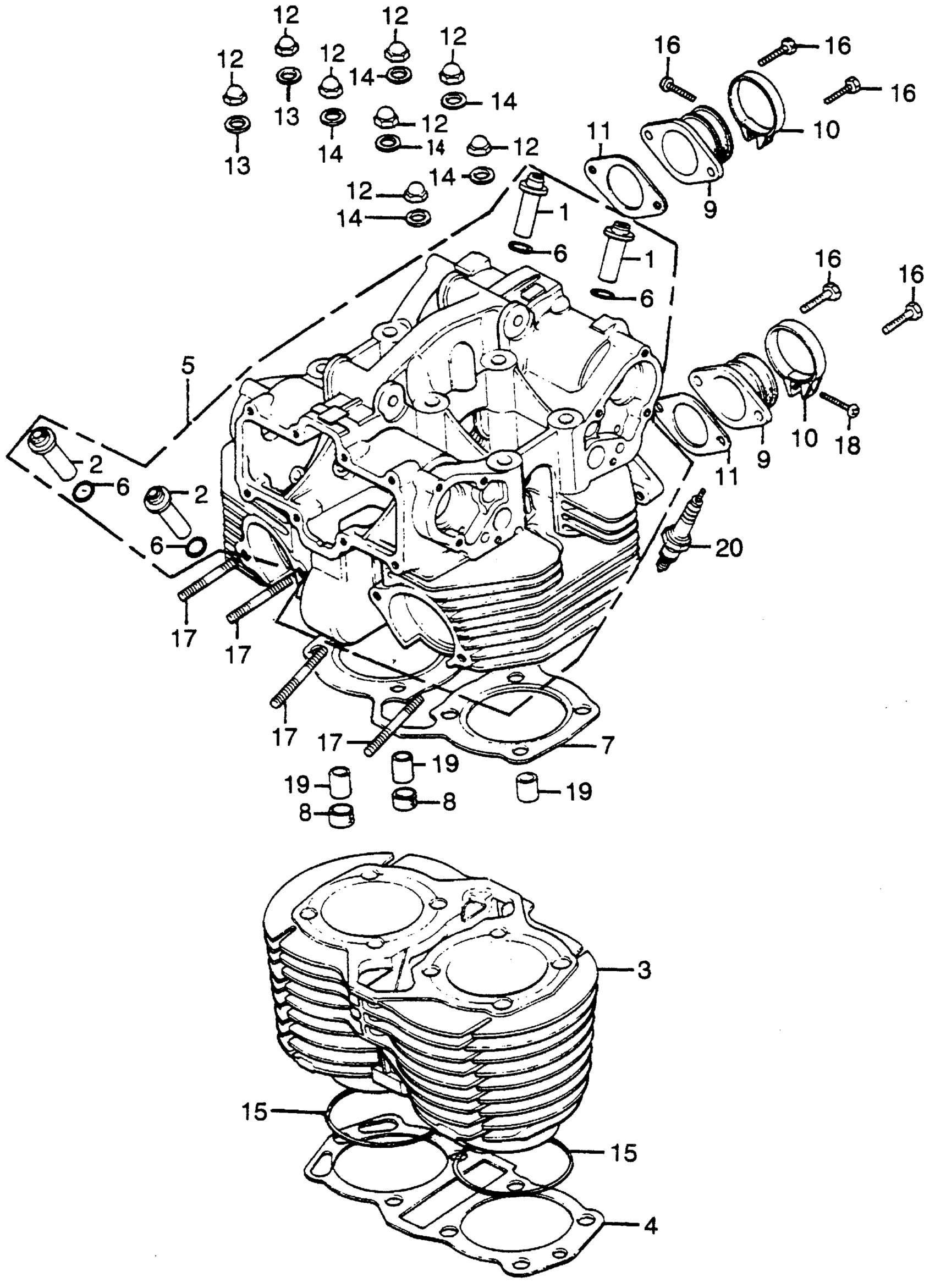

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, EX. VALVE This part replaces 12021-292-300.

12023-319-405

Unavailable

1

GUIDE, EX. VALVE

12023-319-405

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-319-310.

12023-319-405

Unavailable

2

GUIDE, EX. VALVE

12023-319-405

Unavailable

3

CYLINDER (NOT AVAILABLE)

12100-375-000

Unavailable

4

GASKET, CYLINDER This part replaces 12191-283-010.

12191-283-306

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-292-090

Unavailable

6

O-RING (12X1) (NOT AVAILABLE)

12209-283-000

$9.45

7

GASKET, CYLINDER HEAD This part replaces 12251-283-020.

12251-283-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-283-306

Unavailable

8

GASKET, CYLINDER HEAD This part replaces 12909-333-000.

12909-428-003

Unavailable

8

GASKET, CYLINDER HEAD

12909-428-003

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-375-000

Unavailable

10

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 16223-283-000.

95018-50250

$7.58

10

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 90652-GHB-680.

95018-50250

$7.58

10

BAND, AIR CLEANER CONNECTING TUBE (50)

95018-50250

$7.58

11

GASKET This part replaces 16229-283-010.

16229-283-306

Unavailable

12

NUT, CAP (10MM) (NOT AVAILABLE)

90231-319-000

Unavailable

13

WASHER, SEALING (10MM) (NOT AVAILABLE)

90441-283-000

Unavailable

14

WASHER B, SEALING (10MM)

90442-283-000

$2.51

15

O-RING, CYLINDER (75.8X2) This part replaces 91302-283-000.

91302-283-003

$6.34

15

O-RING, CYLINDER (75.8X2)

91302-283-003

$6.34

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

BOLT, STUD (8X56) (NOT AVAILABLE)

92700-08056-05

Unavailable

18

SCREW, PAN (5X16)

93500-05016-0A

$1.49

19

PIN, KNOCK (12X24) (NOT AVAILABLE)

94301-12240

Unavailable

20

SPARK PLUG (B8ES) (NGK)

98079-58840

$2.56

20

SPARK PLUG (B8ES) (NGK) This part replaces 98079-58840-S.

98079-58840

$2.56
