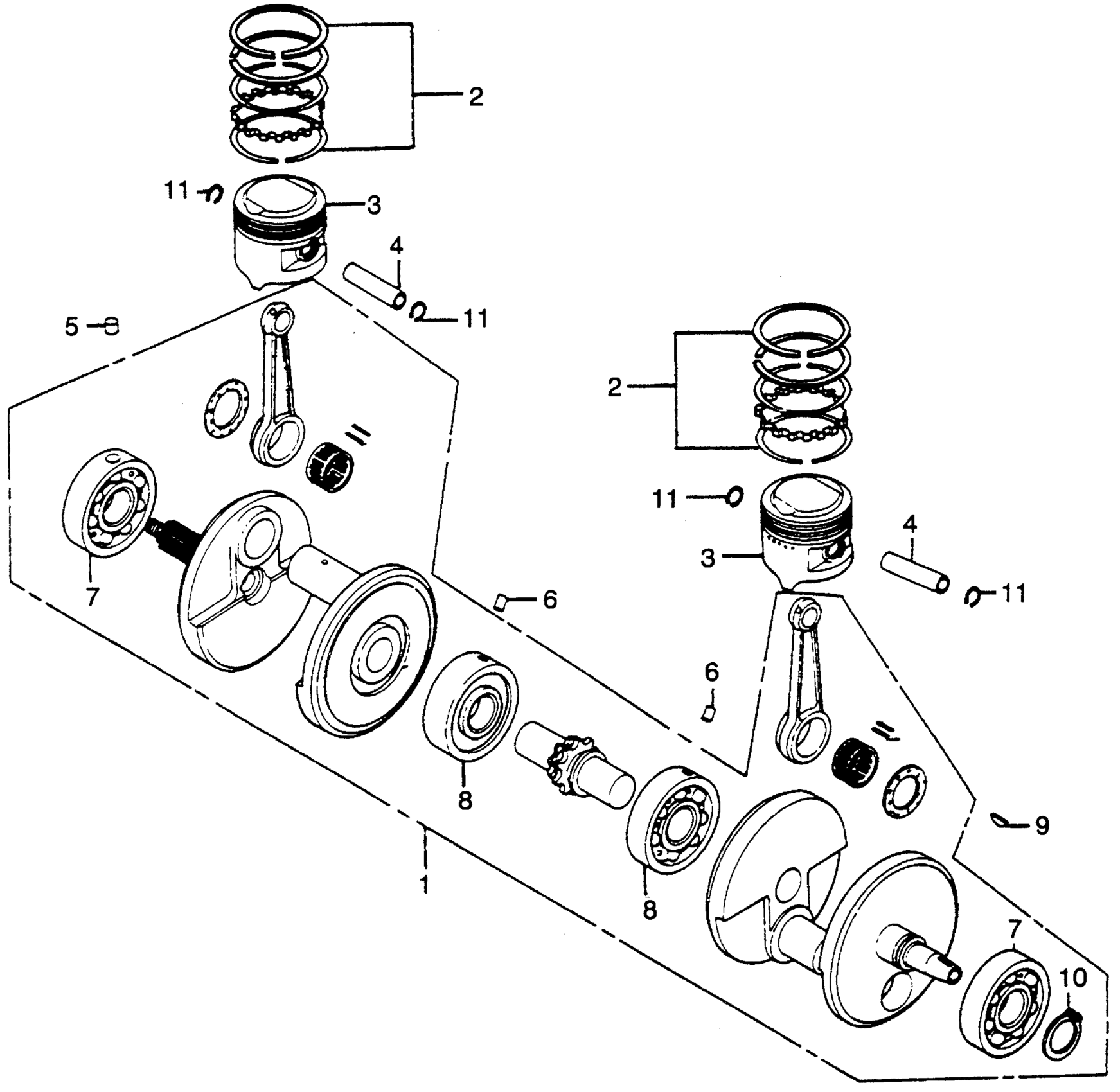

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-375-000

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-375-003.

13011-375-005

Unavailable

2

RING SET, PISTON (STD)

13011-375-005

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) This part replaces 13021-375-003.

13021-375-005

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13021-375-005

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) This part replaces 13031-375-003.

13031-375-005

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

13031-375-005

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) This part replaces 13041-375-003.

13041-375-005

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE)

13041-375-005

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) This part replaces 13051-375-003.

13051-375-005

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE)

13051-375-005

Unavailable

3

PISTON (STD)

13101-375-003

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE)

13102-375-003

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-375-003

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-375-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-375-003

Unavailable

4

PIN, PISTON

13111-283-000

$14.98

5

PIN, KNOCK (7X12) (NOT AVAILABLE)

90708-375-000

Unavailable

6

PIN, KNOCK (6X8.5) (NOT AVAILABLE)

90709-375-000

Unavailable

7

BEARING, SPECIAL BALL (6306) (NACHI) (NOT AVAILABLE)

91001-356-003

Unavailable

8

BEARING, SPECIAL BALL (6306) (TOYO) (NOT AVAILABLE)

91002-375-008

Unavailable

9

KEY, WOODRUFF (25X14)

94401-25140

$1.75

10

CIRCLIP (OUTER) (30MM)

94510-30000

$1.49

11

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
