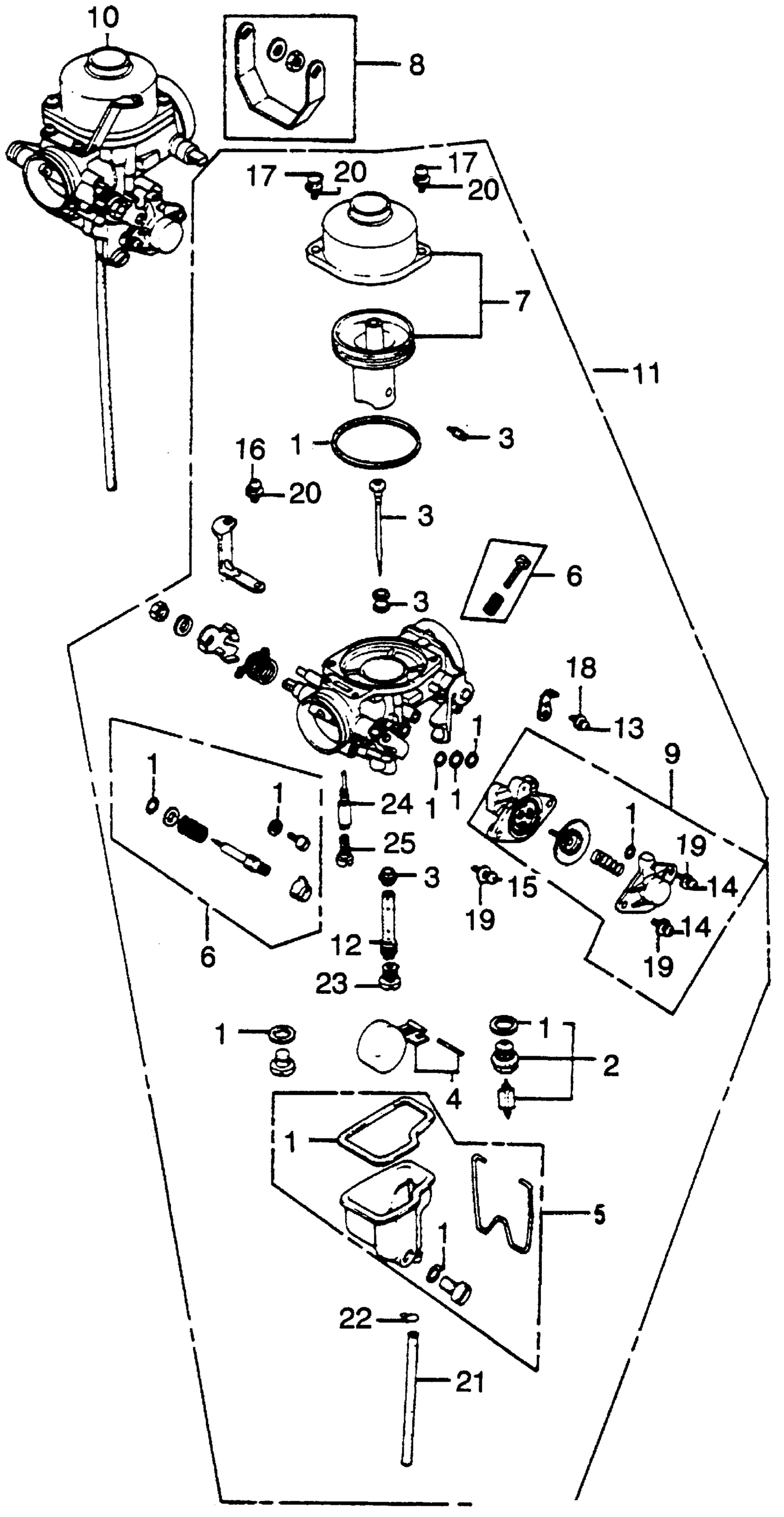

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET (KEIHIN)

16010-375-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (KEIHIN) (NOT AVAILABLE)

16012-346-004

Unavailable

4

FLOAT SET (KEIHIN)

16013-283-004

Unavailable

5

CHAMBER SET, FLOAT (KEIHIN) (NOT AVAILABLE)

16015-346-004

Unavailable

6

SCREW SET (KEIHIN)

16016-375-004

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE)

16022-292-004

Unavailable

8

JOINT SET, CONNECTOR (KEIHIN) (NOT AVAILABLE) | Use from Engine SN 1036609

16025-375-004

Unavailable

8

JOINT SET, CONNECTOR | Use from Engine SN 1000001 to 1036608

16025-375-014

Unavailable

9

VALVE SET, AIR CUT (KEIHIN) (NOT AVAILABLE)

16048-375-004

Unavailable

10

CARBURETOR ASSY., R. (KEIHIN) (NOT AVAILABLE)

16101-375-004

Unavailable

10

CARBURETOR ASSY., R. (KEIHIN) (NOT AVAILABLE) | Use from Engine SN 1000001 to 1036608

16101-375-014

Unavailable

11

CARBURETOR ASSY., L. (KEIHIN)

16102-375-004

Unavailable

12

HOLDER, NEEDLE JET (KEIHIN) (NOT AVAILABLE)

16139-292-004

Unavailable

13

SCREW, PAN (3X7) (NOT AVAILABLE)

93500-03007-0A

Unavailable

14

SCREW, PAN (4X8)

93500-04008-0A

$1.49

15

SCREW, PAN (4X12)

93500-04012-0A

$1.49

16

SCREW, PAN (5X10)

93500-05010-0A

$1.49

17

SCREW, PAN (5X16) | Use from Engine SN 1036609

93500-05016-0A

$1.49

18

WASHER, SPRING (3MM)

94111-03000

$1.49

19

WASHER, SPRING (4MM)

94111-04000

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

BULK HOSE, FUEL (3.5X3000) (3.5X360)

95001-35003-60M

$20.85

22

CLIP, TUBE (B7)

95002-02070

$1.80

23

JET, MAIN (#140) (NOT AVAILABLE)

99114-292-1400

Unavailable

23

JET, MAIN (#145) (NOT AVAILABLE)

99114-292-1450

Unavailable

23

JET, MAIN (#150) (NOT AVAILABLE)

99114-292-1500

Unavailable

24

JET, SLOW (#35) (NOT AVAILABLE)

99124-292-0350

Unavailable

24

JET, SLOW (#38) (NOT AVAILABLE)

99124-292-0380

Unavailable

24

JET, SLOW (#40) (NOT AVAILABLE)

99124-292-0400

Unavailable

25

JET, PILOT (#35) (NOT AVAILABLE)

99104-03504

Unavailable

25

JET, PILOT (#35) (NOT AVAILABLE) This part replaces 99144-292-0350.

99104-03504

Unavailable

25

JET, PILOT (#38)

99144-292-0380

Unavailable

25

JET, PILOT (#40) (NOT AVAILABLE)

99144-292-0400

Unavailable
