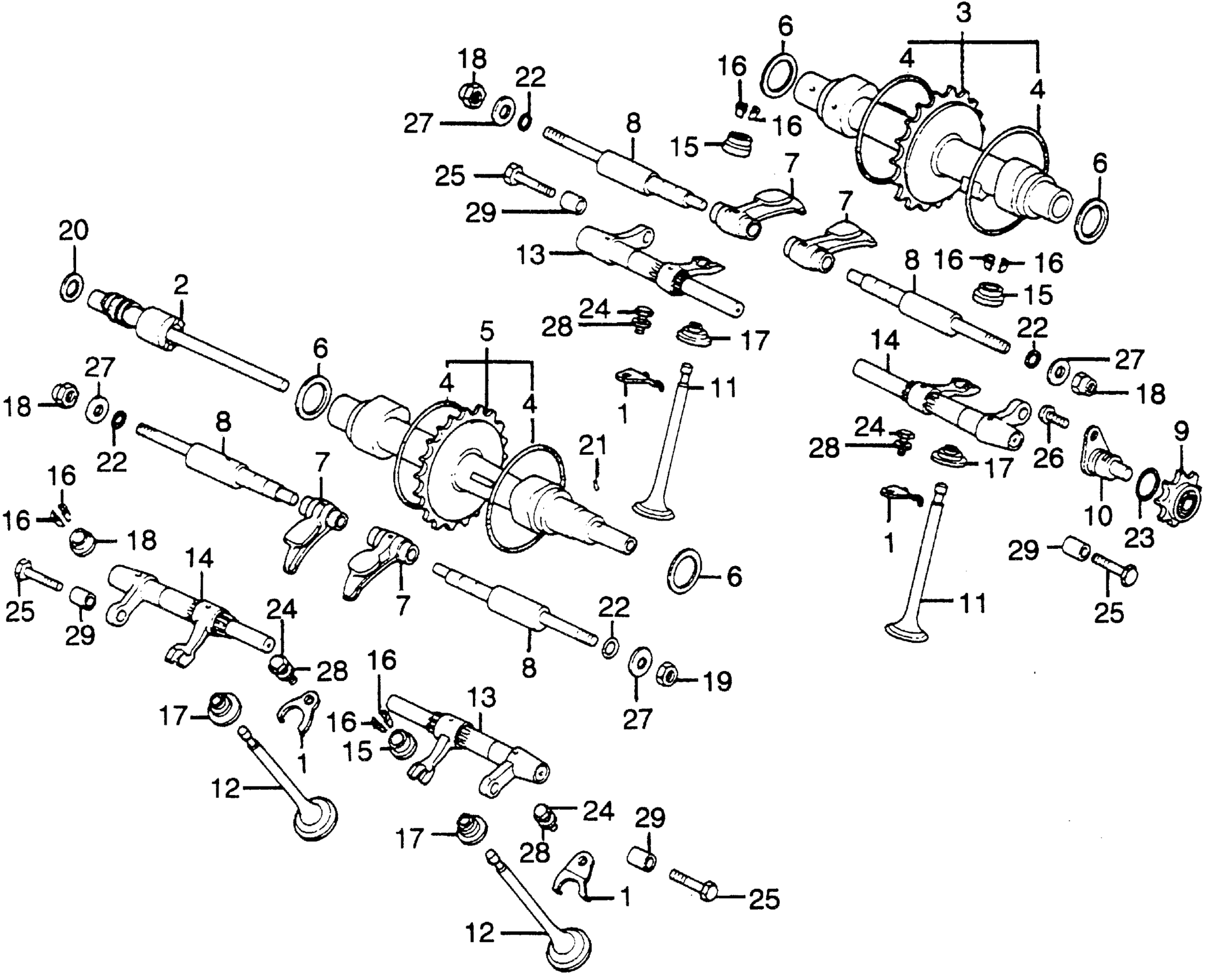

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

STOPPER, VALVE GUIDE (NOT AVAILABLE)

12293-319-000

Unavailable

2

PINION, TACHOMETER

12420-292-010

Unavailable

3

CAMSHAFT, IN. (NOT AVAILABLE)

14110-292-670

Unavailable

4

RING, CAM CHAIN DAMPER

14116-292-300

$9.41

5

CAMSHAFT, EX. (NOT AVAILABLE)

14120-292-013

Unavailable

6

SPACER, CAMSHAFT (0.1MM) (NOT AVAILABLE)

14294-283-000

Unavailable

6

SPACER, CAMSHAFT (0.2MM) (NOT AVAILABLE)

14295-283-000

Unavailable

7

FOLLOWER, CAM

14431-292-010

Unavailable

8

SHAFT, CAM FOLLOWER

14451-292-000

Unavailable

9

ROLLER, CAM CHAIN GUIDE

14640-319-000

Unavailable

10

PIN A, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14645-283-010

Unavailable

11

VALVE, IN. (NOT AVAILABLE)

14711-292-000

$91.18

12

VALVE, EX. (NOT AVAILABLE)

14721-292-010

Unavailable

13

SPRING ASSY. A, TORSION BAR VALVE (NOT AVAILABLE)

14750-292-000

Unavailable

14

SPRING ASSY. B, TORSION BAR VALVE

14760-292-000

Unavailable

15

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-283-000

Unavailable

16

COTTER, VALVE (NOT AVAILABLE)

14781-292-000

Unavailable

17

CAP, VALVE GUIDE SEAL

14791-319-005

$12.44

18

NUT A, CAM FOLLOWER SHAFT LOCK (NOT AVAILABLE)

90011-283-000

Unavailable

19

NUT B, CAM FOLLOWER SHAFT LOCK (NOT AVAILABLE)

90012-283-000

Unavailable

20

WASHER (10MM)

90452-283-000

Unavailable

21

PIN, KNOCK (3X6.8) (NOT AVAILABLE)

90701-283-000

Unavailable

22

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

22

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

23

O-RING (16.6X2.4) This part replaces 91314-220-000.

91315-PY3-000

$9.36

23

O-RING (16.6X2.4)

91315-PY3-000

$9.36

24

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

25

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

25

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

26

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

PIN A, DOWEL (8X12)

94301-08120

$2.19
