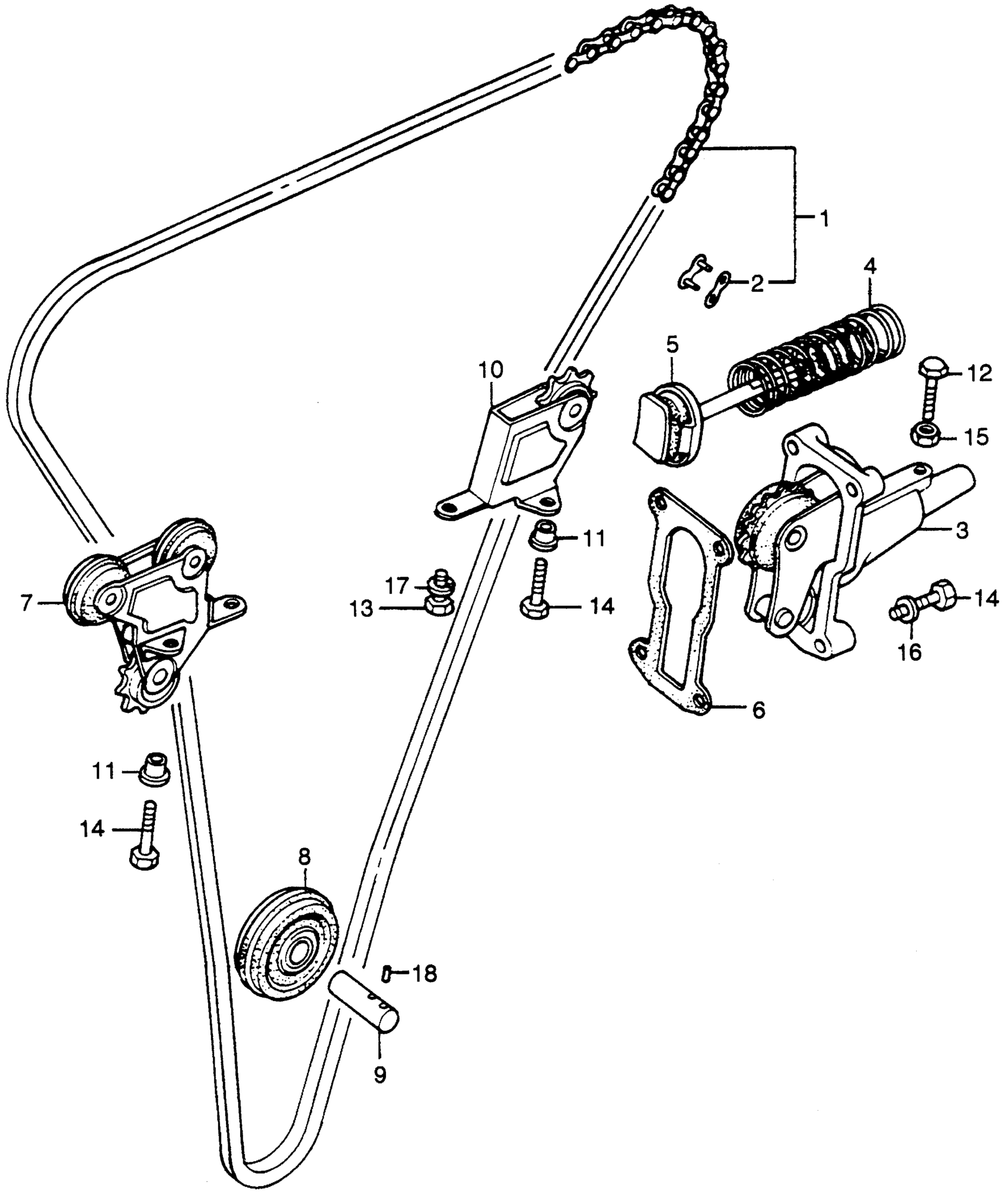

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

CHAIN, CAM (DK219-64L)

14401-283-003

Unavailable

2

JOINT, CAM CHAIN (DK219)

14410-283-000

$7.90

3

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-292-000

Unavailable

4

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-283-000

Unavailable

5

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-283-000

Unavailable

6

GASKET This part replaces 14591-283-000.

14591-283-306

Unavailable

7

ROLLER, FR. CAM CHAIN GUIDE (NOT AVAILABLE)

14610-319-000

Unavailable

8

ROLLER B, CAM CHAIN GUIDE (NOT AVAILABLE)

14630-292-000

Unavailable

9

PIN B, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14635-283-000

Unavailable

10

ROLLER, RR. CAM CHAIN GUIDE (NOT AVAILABLE)

14650-319-000

Unavailable

11

PIN, ROLLER STAY KNOCK (NOT AVAILABLE)

14655-283-000

Unavailable

12

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-259-000

Unavailable

13

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

14

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

PIN, DOWEL (4X8) (NOT AVAILABLE)

94302-04080

Unavailable
