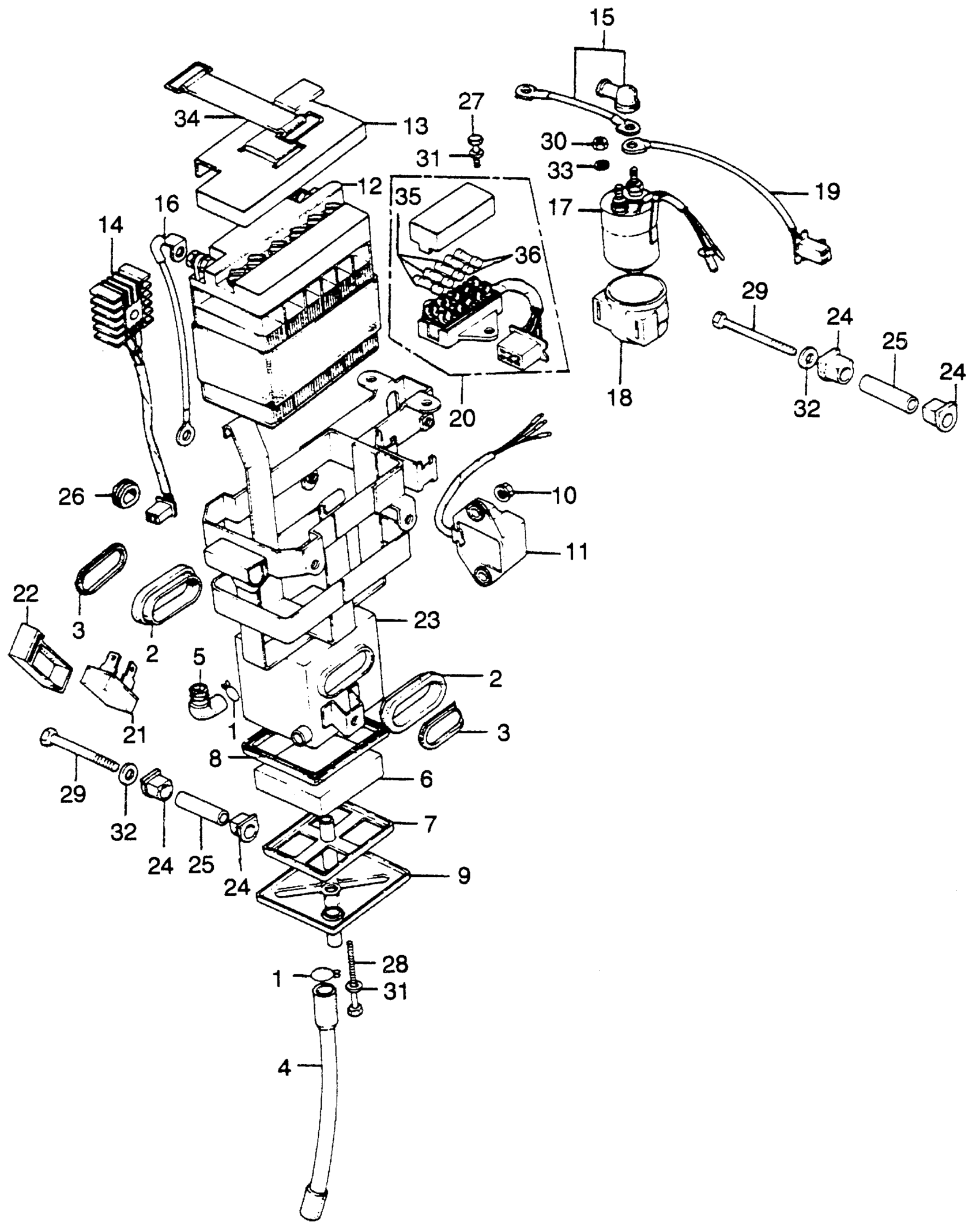

Honda CB500TA MOTORCYCLE, JPN, VIN# CB500T-1000001 BATTERY Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

TUBE, AIR CLEANER JOINT (NOT AVAILABLE)

17213-292-000

Unavailable

3

GROMMET, AIR CLEANER HOUSING (NOT AVAILABLE)

17222-375-300

Unavailable

4

TUBE ASSY., DRAIN (NOT AVAILABLE)

17358-374-000

Unavailable

5

PIECE, AIR CLEANER JOINT (NOT AVAILABLE)

17359-374-000

Unavailable

6

ELEMENT, BREATHER (NOT AVAILABLE)

17403-375-000

Unavailable

7

HOLDER, BREATHER ELEMENT (NOT AVAILABLE)

17404-375-000

Unavailable

8

GASKET, BREATHER ELEMENT (NOT AVAILABLE)

17406-375-000

Unavailable

9

CAP, BREATHER CHAMBER

17407-375-000

Unavailable

10

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

10

NUT, FLANGE (6MM)

94050-06000

$1.49

11

REGULATOR (NOT AVAILABLE)

31400-292-670

Unavailable

12

BATTERY (12V12) This part replaces 31500-283-000.

31500-460-672AH

Unavailable

12

BATTERY (12V12) This part replaces 31500-292-670.

31500-460-672AH

Unavailable

12

BATTERY (12V12) This part replaces 31500-310-671.

31500-460-672AH

Unavailable

12

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

12

BATTERY (12V12) This part replaces 98202-22250.

31500-460-672AH

Unavailable

12

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable

13

COVER, BATTERY (NOT AVAILABLE) This part replaces 31532-292-000.

31532-292-010

Unavailable

13

COVER, BATTERY (NOT AVAILABLE)

31532-292-010

Unavailable

13

COVER, BATTERY (NOT AVAILABLE) This part replaces 31532-369-000.

31532-292-010

Unavailable

14

RECTIFIER SET, SILICON (NOT AVAILABLE) This part replaces 31700-358-013.

31700-358-305

Unavailable

14

RECTIFIER SET, SILICON (NOT AVAILABLE)

31700-358-305

Unavailable

15

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-319-000.

32401-319-010

Unavailable

15

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-319-010

Unavailable

16

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-292-000

Unavailable

17

SWITCH ASSY., STARTER MAGNETIC

35850-375-000

Unavailable

18

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

18

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

18

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

18

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

19

SUB-WIRE, MAGNETIC (NOT AVAILABLE)

35858-375-000

Unavailable

20

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE) This part replaces 38200-377-005.

38200-377-305

Unavailable

20

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE)

38200-377-305

Unavailable

21

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

21

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

21

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

21

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

22

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

23

BOX, BATTERY (NOT AVAILABLE)

50325-375-000

Unavailable

24

RUBBER, BATTERY BOX (NOT AVAILABLE)

50331-323-000

Unavailable

25

COLLAR, BATTERY BOX (NOT AVAILABLE)

50332-323-000

Unavailable

26

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

27

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

29

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

$2.25

29

BOLT, HEX. (8X65)

92101-08065-0A

$2.25

30

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

30

NUT, HEX. (6MM)

94002-06080-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (6MM)

94111-06800

$1.49

34

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

34

BAND B2, BATTERY

95012-13001

$5.28

35

FUSE B (7A)

98200-20700

$1.49

36

FUSE B (15A)

98200-21500

$1.49
