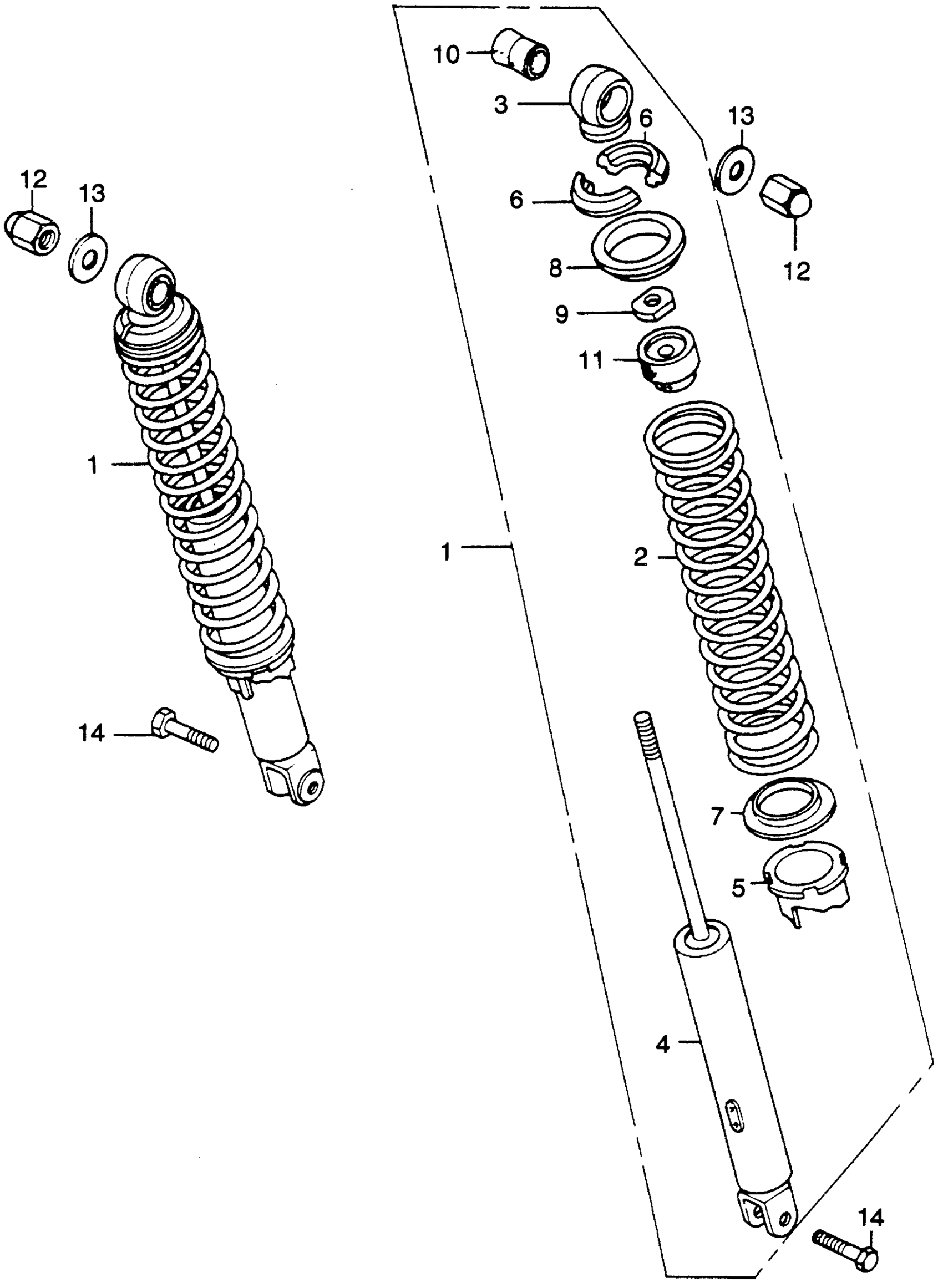

Honda CB500TA (76) 500 TWIN DOHC, JPN, VIN# CB500T-2000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use up to Frame SN 2007508

52400-375-000

Unavailable

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN 2007509

52400-375-611

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-323-000

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-312-000

$18.07

4

DAMPER, RR. (NOT AVAILABLE) | Use up to Frame SN 2007508

52410-323-670

Unavailable

4

DAMPER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN 2007509

52410-375-611

Unavailable

5

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE) | Use up to Frame SN 2007508

52422-329-000

Unavailable

5

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE) | Use from Frame SN 2007509

52422-390-003

Unavailable

6

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

7

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

8

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)

52459-312-003

Unavailable

9

NUT, LOCK (10MM) (NOT AVAILABLE) | Use up to Frame SN 2007508

52482-312-000

Unavailable

9

NUT, HEX. (10MM) | Use from Frame SN 2007509

94002-10000-0S

$4.06

10

RUBBER, JOINT

52484-292-000

$5.87

11

RUBBER, STOPPER (NOT AVAILABLE) | Use up to Frame SN 2007508 This part replaces 52517-312-000.

52517-358-771

Unavailable

11

RUBBER, STOPPER (NOT AVAILABLE) | Use from Frame SN 2007509

52517-358-771

Unavailable

12

NUT, FLANGE (10MM)

90309-315-000

$5.35

13

WASHER, PLAIN (10.3MM) This part replaces 90527-200-000.

90527-230-000

$1.95

13

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

14

BOLT, HEX. (10X32) This part replaces 93000-10032-0B.

93101-10032-0B

$2.92

14

BOLT, HEX. (10X32)

93101-10032-0B

$2.92
