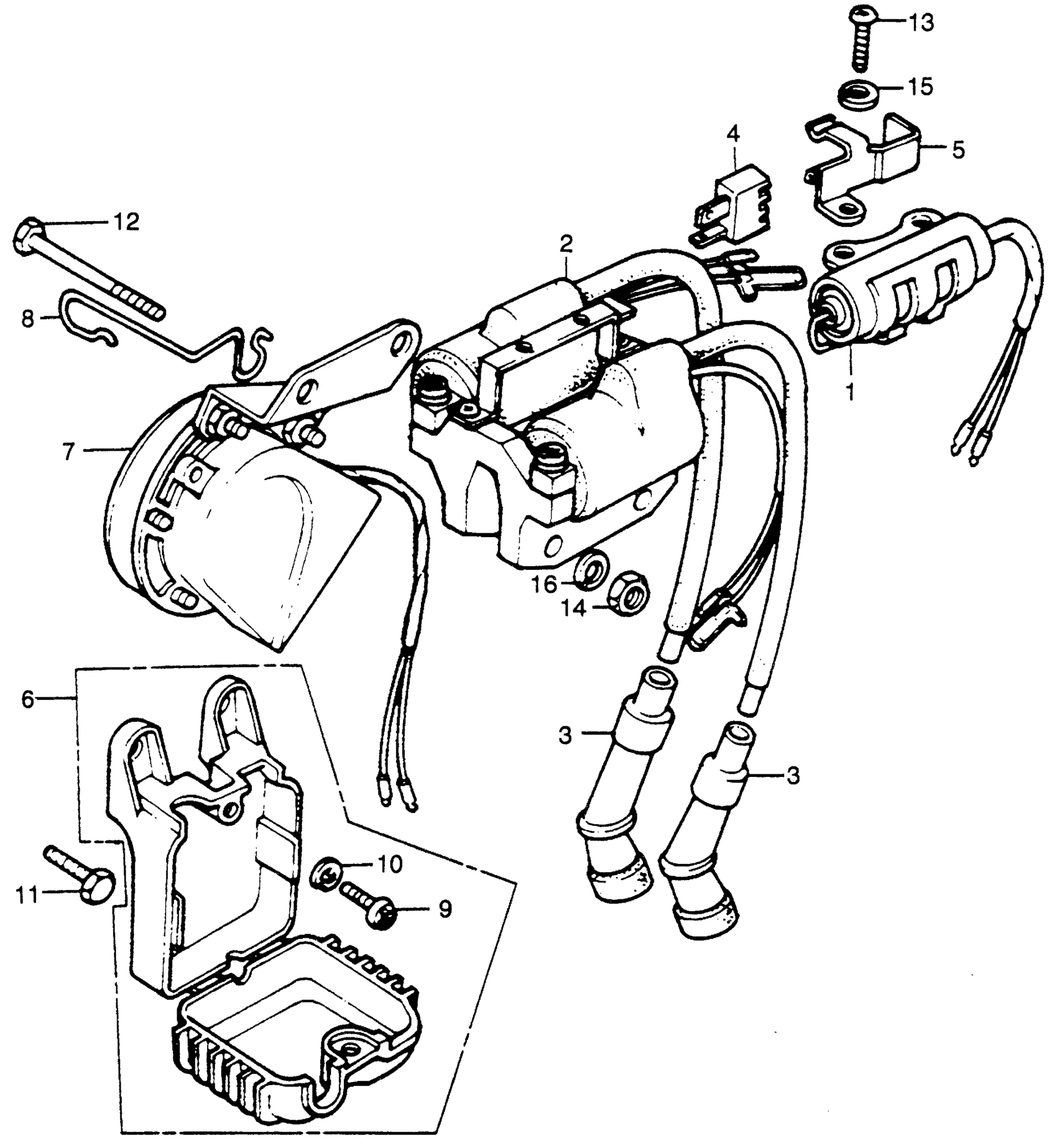

Honda CB500TA (76) 500 TWIN DOHC, JPN, VIN# CB500T-2000001 IGNITION COIL Diagram

#

Description
Price

NI

BOLT, HEX. (6X56) (NOT AVAILABLE) This part replaces 92000-06056.

92000-06056-0A

Unavailable

NI

BOLT, HEX. (6X56) (NOT AVAILABLE)

92000-06056-0A

Unavailable

1

CONDENSER (TOYO)

30280-292-672

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-292-672

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-292-000.

30700-890-013

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-890-000.

30700-890-013

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-890-003.

30700-890-013

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR

30700-890-013

Unavailable

4

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

5

HOLDER, DIODE (NOT AVAILABLE)

31706-369-000

Unavailable

6

BOX, HARNESS (NOT AVAILABLE)

32400-375-000

Unavailable

7

HORN ASSY. (NOT AVAILABLE)

38100-375-620

Unavailable

8

CLIP, TACHOMETER CABLE (NOT AVAILABLE)

50402-351-000

Unavailable

9

SCREW, PAN (5X12) (NOT AVAILABLE)

90088-612-000

Unavailable

10

CIRCLIP (5MM) (NOT AVAILABLE)

90601-816-000

Unavailable

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

12

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

12

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

12

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

12

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

13

SCREW, PAN (5X8)

93500-05008-0A

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, SPRING (5MM)

94111-05000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49
