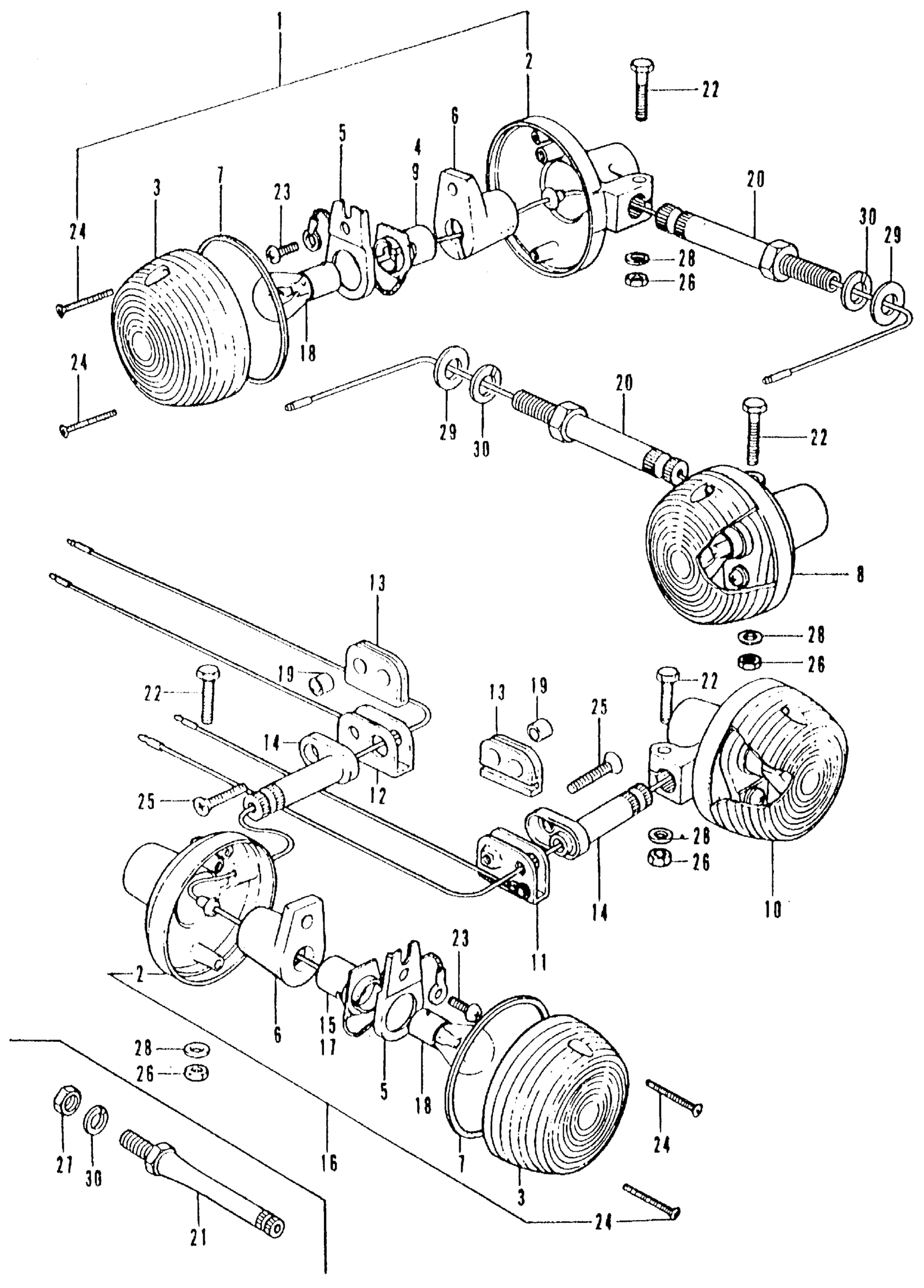

Honda CB500K2A MOTORCYCLE, JPN, VIN# CB500-2100001 TURN SIGNAL Diagram

TURN SIGNAL ASSY., R. FR. This part replaces 33400-323-700.

33400-323-709

Unavailable

TURN SIGNAL ASSY., R. FR.

33400-323-709

Unavailable

TURN SIGNAL ASSY., R. FR. This part replaces 33450-323-700.

33400-323-709

Unavailable

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

BASE, TURN SIGNAL

33401-341-701

$39.39

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE)

33402-323-700

Unavailable

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE) This part replaces 33407-284-000.

33407-284-003

Unavailable

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE)

33407-284-003

Unavailable

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE) This part replaces 33408-284-000.

33408-341-701

Unavailable

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE)

33408-341-701

Unavailable

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

TURN SIGNAL ASSY., R. FR.

33400-323-709

Unavailable

TURN SIGNAL ASSY., R. FR. This part replaces 33450-323-700.

33400-323-709

Unavailable

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33453-323-700

Unavailable

TURN SIGNAL ASSY., R. RR. This part replaces 33600-300-000.

33600-306-679

$50.59

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

TURN SIGNAL ASSY., R. RR. This part replaces 33600-415-000.

33600-306-679

$50.59

TURN SIGNAL ASSY., R. RR. This part replaces 33650-306-670.

33600-306-679

$50.59

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-323-670

Unavailable

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33605-323-670

Unavailable

RUBBER, RR. TURN SIGNAL MOUNT

33606-074-010

$4.98

STAY, R. RR. TURN SIGNAL

33607-323-670

Unavailable

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-300-000

Unavailable

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

TURN SIGNAL ASSY., R. RR. This part replaces 33650-300-000.

33600-306-679

$50.59

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-300-000

Unavailable

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

COLLAR A, RR. FENDER

80108-061-010

$4.12

BOLT, FR. TURN SIGNAL SET (NOT AVAILABLE)

90154-455-670

Unavailable

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-0B.

93101-06028-0B

$1.49

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93000-06028-02.

93101-06028-0B

$1.49

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 93100-06028-0B.

93101-06028-0B

$1.49

BOLT, HEX. (6X28) (SOURCE: VINTAGE PARTS INC.)

93101-06028-0B

$1.49

SCREW, PAN (5X8)

93500-05008-0A

$1.49

SCREW, OVAL (3X25) (NOT AVAILABLE)

93700-03025-3B

Unavailable

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (10MM)

94001-10000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49
