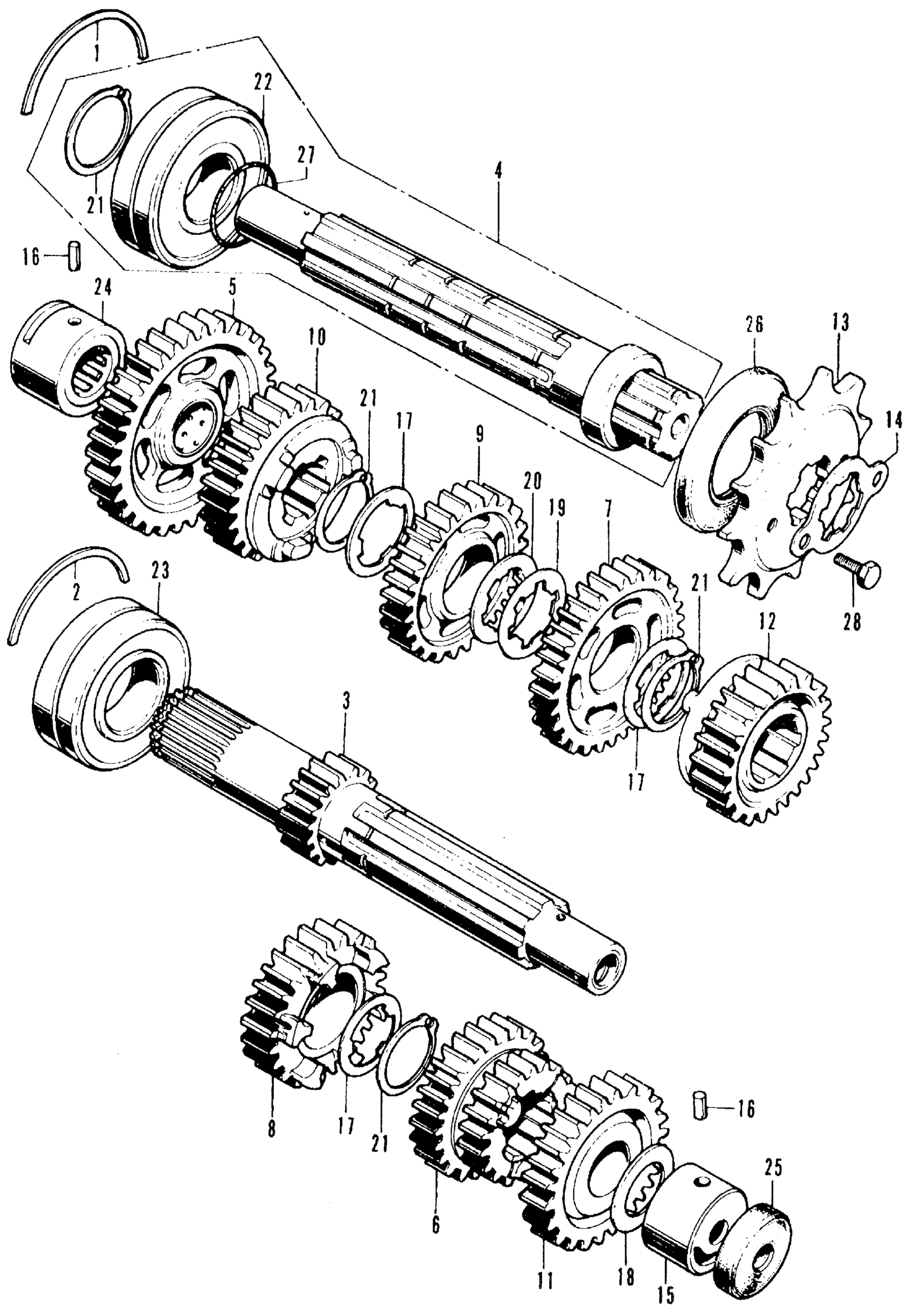

Honda CB500K2A MOTORCYCLE, JPN, VIN# CB500-2100001 TRANSMISSION Diagram

#

Description
Price

1

RING, BEARING SETTING (57MM) (NOT AVAILABLE)

13491-283-000

Unavailable

2

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

2

SET-RING (520)

95015-25200

Unavailable

3

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23210-323-000

Unavailable

4

COUNTERSHAFT, TRANSMISSION

23220-323-000

Unavailable

5

GEAR, COUNTERSHAFT LOW

23420-323-010

Unavailable

6

GEAR, MAINSHAFT SECOND THIRD (22T. 26T)

23431-323-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (36T)

23441-286-020

Unavailable

8

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23451-323-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 234A1-390-305.

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE)

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 23461-286-030.

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 23471-286-010.

234A1-390-315

Unavailable

10

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 234A1-390-305.

234A1-390-315

Unavailable

10

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE)

234A1-390-315

Unavailable

10

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 23471-286-010.

234A1-390-315

Unavailable

11

GEAR, MAINSHAFT TOP (30T)

23481-323-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (27T) | Use up to Engine SN 2150031 This part replaces 23491-286-030.

23491-374-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (27T)

23491-374-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (27T) | Use up to Engine SN 2150031

23491-374-000

Unavailable

13

SPROCKET, DRIVE (17T)

23801-300-010

Unavailable

14

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

15

BEARING, NEEDLE (20MM) (KOYO)

23931-323-004

Unavailable

16

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

17

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90451-286-000

Unavailable

18

WASHER, THRUST (20MM)

90458-292-000

$3.54

19

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

20

WASHER, LOCK (25MM)

90462-323-000

$3.77

21

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

22

BEARING, SPECIAL BALL (5205) (NOT AVAILABLE)

91002-283-000

Unavailable

22

BEARING, SPECIAL BALL (5205) (NOT AVAILABLE) This part replaces 91002-283-003.

91002-283-000

Unavailable

23

BEARING, BALL (5205HS) (TOYO) (NOT AVAILABLE)

91002-286-008

Unavailable

24

BEARING, NEEDLE (20MM) (KOYO) (NOT AVAILABLE)

91022-286-004

Unavailable

24

BEARING, NEEDLE (20MM) (KOYO) (NOT AVAILABLE) This part replaces 91022-286-016.

91022-286-004

Unavailable

25

OIL SEAL (8X34X8) This part replaces 91203-292-003.

91203-292-005

$13.88

25

OIL SEAL (8X34X8)

91203-292-005

$13.88

26

OIL SEAL (33X57X7) This part replaces 91205-283-010.

91205-283-015

Unavailable

26

OIL SEAL (33X57X7)

91205-283-015

Unavailable

27

O-RING (24.5X1.5) (NOT AVAILABLE)

91306-703-000

Unavailable

28

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

28

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

28

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
