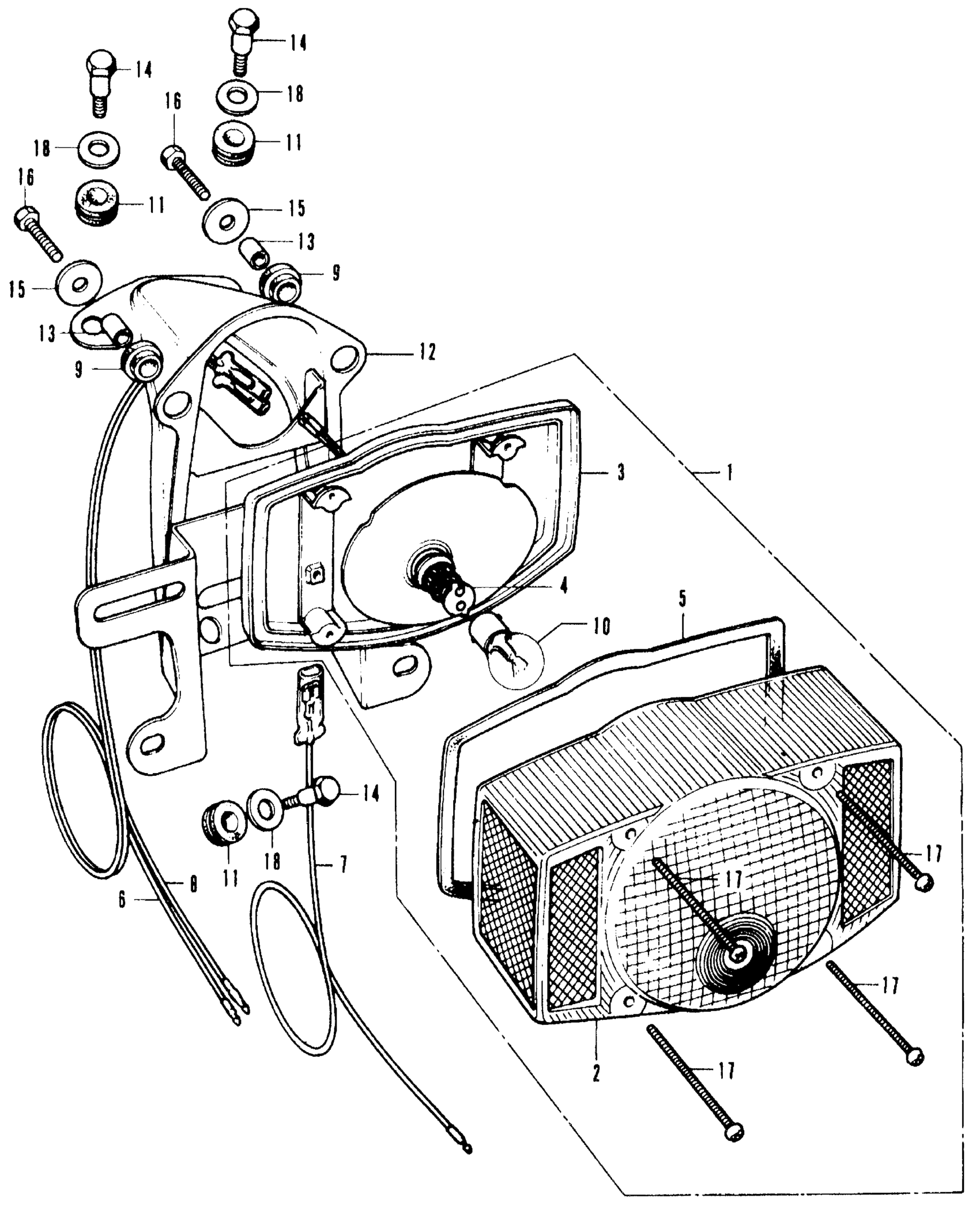

Honda CB500K2A MOTORCYCLE, JPN, VIN# CB500-2100001 TAILLIGHT K1-K2 Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-341-671

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-671

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-323-000

Unavailable

7

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

8

CABLE, STOP LIGHT SUB (NOT AVAILABLE)

33713-323-000

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

11

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

12

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-341-670XW

Unavailable

14

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

14

BOLT, TAILLIGHT SETTING This part replaces 90162-292-000.

90162-283-000

$4.24

15

WASHER (20MM)

90581-310-000

$1.90

16

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

17

SCREW, PAN (4X55)

93500-04055-4J

$1.49

18

WASHER, PLAIN (8MM)

94101-08200

$1.49
