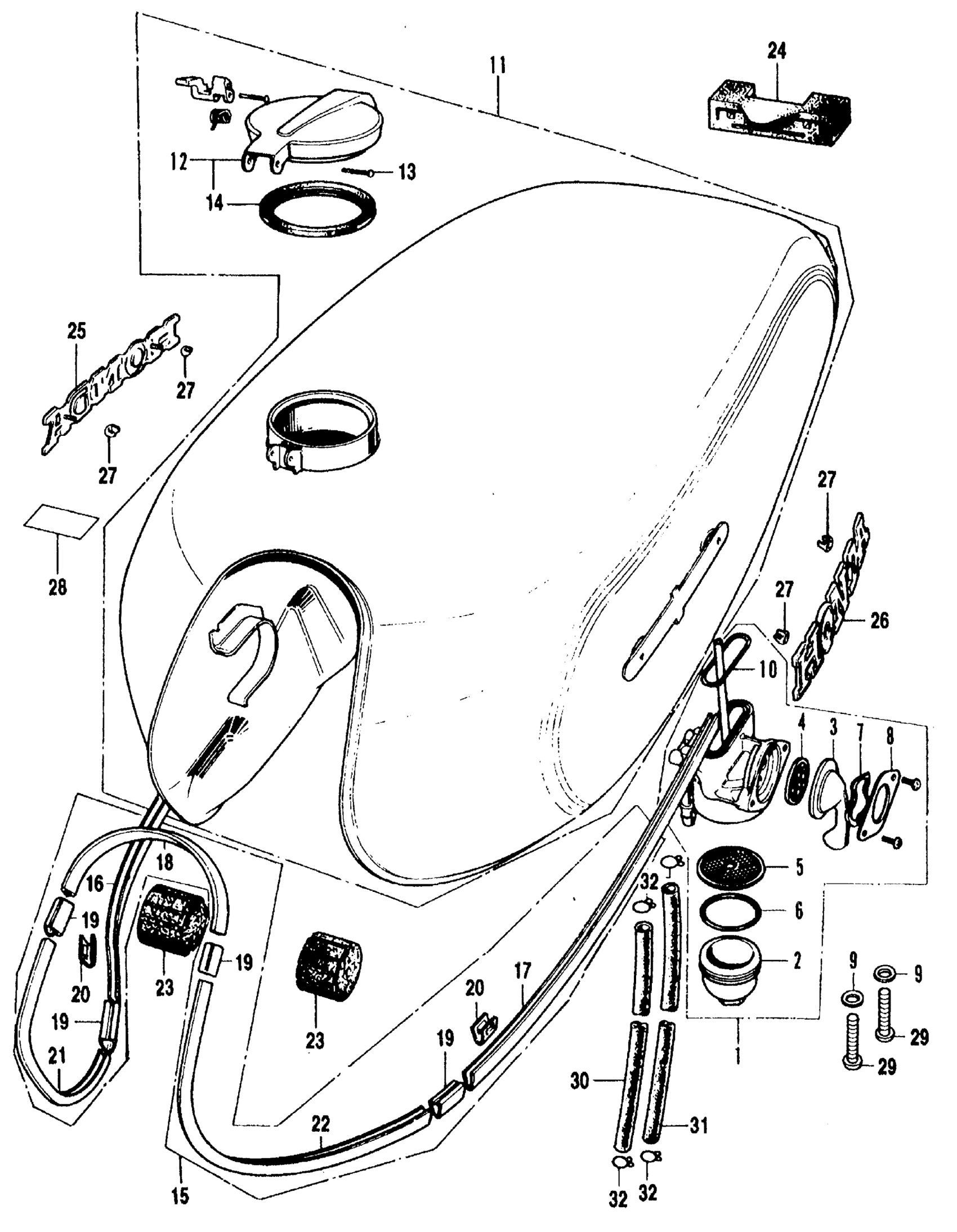

Honda CB500K2A MOTORCYCLE, JPN, VIN# CB500-2100001 FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-300-020

$86.59

2

CUP, FUEL STRAINER

16952-268-000

Unavailable

3

LEVER, VALVE (NOT AVAILABLE)

16953-268-020

Unavailable

4

GASKET, VALVE

16955-268-020

$5.08

5

SCREEN, FUEL STRAINER

16957-268-010

$11.38

6

GASKET, FUEL STRAINER CUP

16958-268-010

$8.89

7

SPRING, PETCOCK LEVER

16960-268-010

Unavailable

8

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-268-010

Unavailable

9

GASKET, PETCOCK BODY

16993-011-000

Unavailable

10

GASKET, PETCOCK BODY

16997-273-006

$6.74

11

TANK ASSY., FUEL *G5WC/NH1* (CANDY BACCHUS OLIVE CUSTOM & BLACK) (NOT AVAILABLE)

17050-323-700PZ

Unavailable

11

TANK ASSY., FUEL *R2CH/NH1* (FLAKE SUNRISE ORANGE & BLACK) (NOT AVAILABLE)

17050-323-700QJ

Unavailable

11

TANK ASSY., FUEL *YR20MC/NH1* (MAXIM BROWN METALLIC CUSTOM AND BLACK) (NOT AVAILABLE)

17050-323-700QP

Unavailable

11

TANK ASSY., FUEL *G5WC/NH1* (CANDY BACCHUS OLIVE CUSTOM & BLACK) (NOT AVAILABLE) This part replaces 17500-323-700PZ.

17050-323-700PZ

Unavailable

11

TANK ASSY., FUEL *R2CH/NH1* (FLAKE SUNRISE ORANGE & BLACK) (NOT AVAILABLE) This part replaces 17500-323-700QJ.

17050-323-700QJ

Unavailable

11

TANK ASSY., FUEL *YR20MC/NH1* (MAXIM BROWN METALLIC CUSTOM AND BLACK) (NOT AVAILABLE) This part replaces 17500-323-700QP.

17050-323-700QP

Unavailable

12

CAP, FUEL TANK

17510-323-310

Unavailable

13

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

14

GASKET, FUEL FILLER CAP

17534-323-300

$9.17

15

MOLDING SET, FUEL TANK (NOT AVAILABLE)

17540-323-000

Unavailable

16

MOLDING, R. FUEL TANK (NOT AVAILABLE)

17541-323-000

Unavailable

17

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17542-323-000

Unavailable

18

MOLDING, FUEL TANK MIDDLE (NOT AVAILABLE)

17543-323-000

Unavailable

19

CLIP A, FUEL TANK MOLDING (NOT AVAILABLE)

17544-323-000

Unavailable

20

CLIP B, FUEL TANK MOLDING

17545-323-010

Unavailable

21

MOLDING, R. TANK MIDDLE (NOT AVAILABLE)

17548-323-000

Unavailable

22

MOLDING, L. TANK MIDDLE (NOT AVAILABLE)

17549-323-000

Unavailable

22

LATCH ASSY., FUEL FILLER CAP

17550-377-315

Unavailable

23

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

24

RUBBER, RR. FUEL TANK

17613-286-000

$15.86

25

EMBLEM, R. FUEL TANK

87121-300-030

$55.31

25

EMBLEM, R. FUEL TANK This part replaces 87121-323-000.

87121-300-030

$55.31

25

EMBLEM, R. FUEL TANK This part replaces 87122-300-030.

87121-300-030

$55.31

26

EMBLEM, R. FUEL TANK

87121-300-030

$55.31

26

EMBLEM, R. FUEL TANK This part replaces 87122-300-030.

87121-300-030

$55.31

26

EMBLEM, R. FUEL TANK This part replaces 87122-323-000.

87121-300-030

$55.31

27

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

27

NUT, EMBLEM CLAMP

87311-634-600

$4.79

28

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

28

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

28

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

29

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

29

SCREW, PAN (6X32)

93500-06032-0A

$1.49

30

BULK HOSE, FUEL (5.5X3000) (5.5X180)

95001-55003-60M

$47.32

31

BULK HOSE, FUEL (5.5X3000) (5.5X260)

95001-55003-60M

$47.32

31

BULK HOSE, FUEL (5.5X3000) (5.5X300)

95001-55003-60M

$47.32

32

CLIP, TUBE (B10)

95002-02100

$1.90
