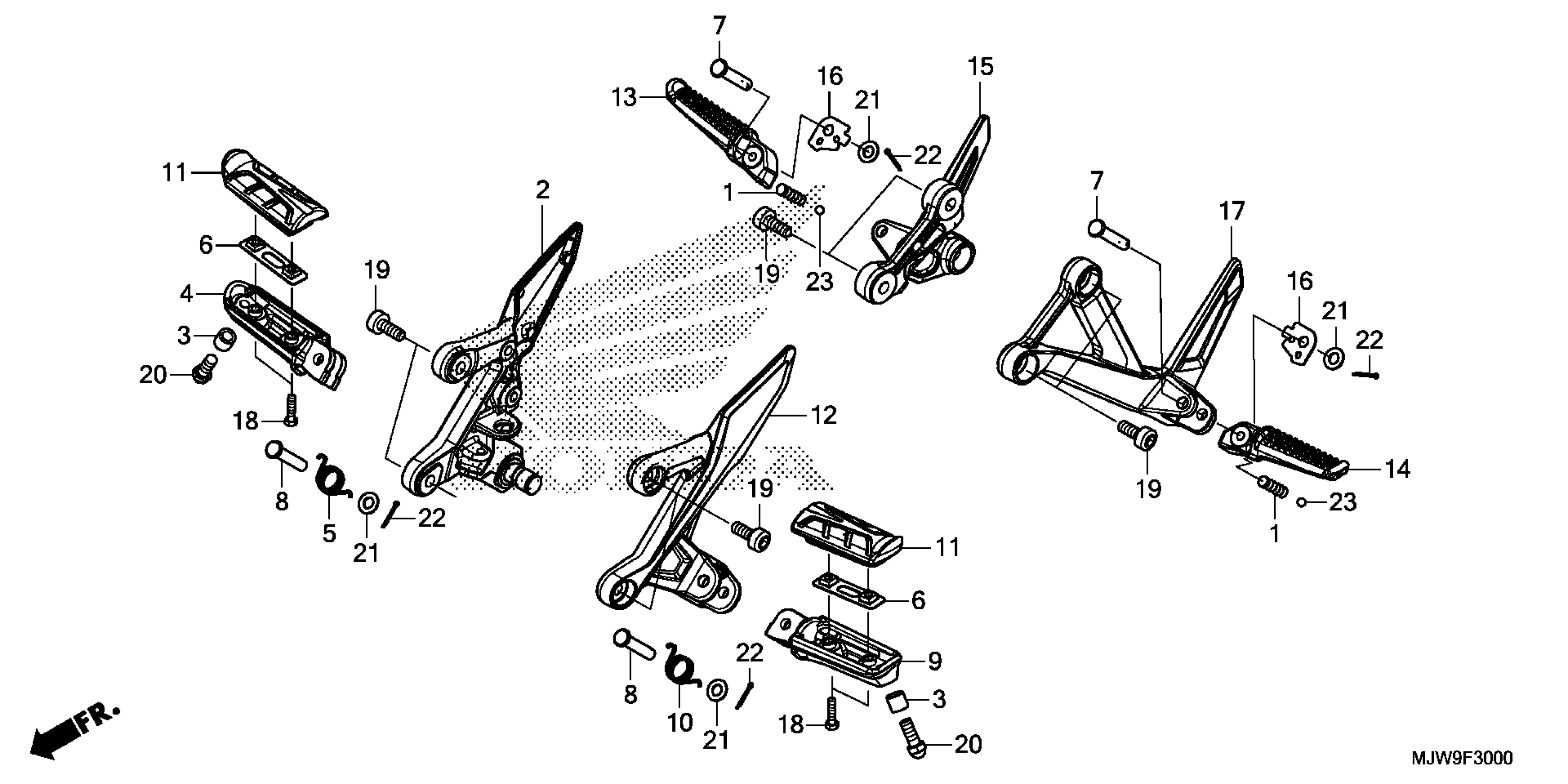

Honda CB500FAC (18) MOTORCYCLE, THA, VIN# MLHPC451-J5500001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MJW-J00

$34.74

3

COLLAR (12.7X11)

50611-MJW-J00

$0.83

4

ARM, R. STEP (COO)

50612-KYJ-305

$23.26

5

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.07

6

PLATE, STEP SETTING

50619-MM5-000

$7.37

7

PIN, STEP BAR

50639-MFL-D20

$2.80

8

PIN, STEP BAR

50639-ML0-010

Unavailable

9

ARM, L. STEP (COO)

50642-KYJ-305

$23.26

10

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.07

11

RUBBER, MAIN STEP

50661-MJE-D00

$2.87

12

HOLDER, L. MAIN STEP

50700-MJW-J00

$27.51

13

ARM, R. PILLION STEP (COO) This part replaces 50711-MGS-D30.

50711-MGS-305

$58.58

13

ARM, R. PILLION STEP (COO)

50711-MGS-305

$58.58

14

ARM, L. PILLION STEP (COO) This part replaces 50712-MGS-D30.

50712-MGS-305

$54.45

14

ARM, L. PILLION STEP (COO)

50712-MGS-305

$54.45

15

HOLDER, R. PILLION STEP

50715-MJW-J00

$24.36

16

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.26

17

HOLDER, L. PILLION STEP

50725-MJW-J00

$23.67

18

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.42

19

BOLT, SOCKET (8X22)

90116-MGZ-J00

$0.87

20

BOLT, CAP (8X20)

92501-08020-0A

$2.71

21

WASHER, PLAIN (8MM)

94102-08000

$0.86

22

PIN, COTTER (2.0X15)

94201-20150

$0.94

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
