Description

Price

1

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.24

2

COLLAR, TAILLIGHT MOUNTING

33706-KAN-960

$0.66

3

SEAT ASSY., SINGLE (TYPE1) This part replaces 77100-MJW-J01ZA.

77100-MJW-J02ZA

$82.78

4

RUBBER B, SEAT SETTING

77205-286-000

$5.04

5

RUBBER, SEAT CUSHION

77206-KFN-850

$3.59

6

RUBBER C, SEAT SETTING

77215-KW7-900

$5.04

7

LOCK, SEAT

77220-MJW-J01

$17.63

8

SPRING, SEAT LOCK

77234-GN2-000

$3.74

9

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.46

10

WASHER, SEAT LOCK

77236-MGP-D60

$2.22

11

KEY, SEAT LOCK This part replaces 77239-MJW-J02.

77239-MJW-J03

$129.12

12

SEAT ASSY., PILLION This part replaces 77300-MJW-J01ZB.

77300-MKP-DN1

$110.24

13

SEAT BELT

77310-MJW-J00

$15.87

14

BAND, TOOL

83606-KWS-901

$3.25

15

BOLT, SPECIAL (6X23.5)

90003-KWN-900

$0.84

16

BOLT, FLANGE (6X14)

90102-KTM-D20

$0.50

17

BOLT, FLANGE (6X12)

90130-ML0-730

$2.80

18

NUT, FLANGE (6MM)

94050-06080

$0.60

19

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

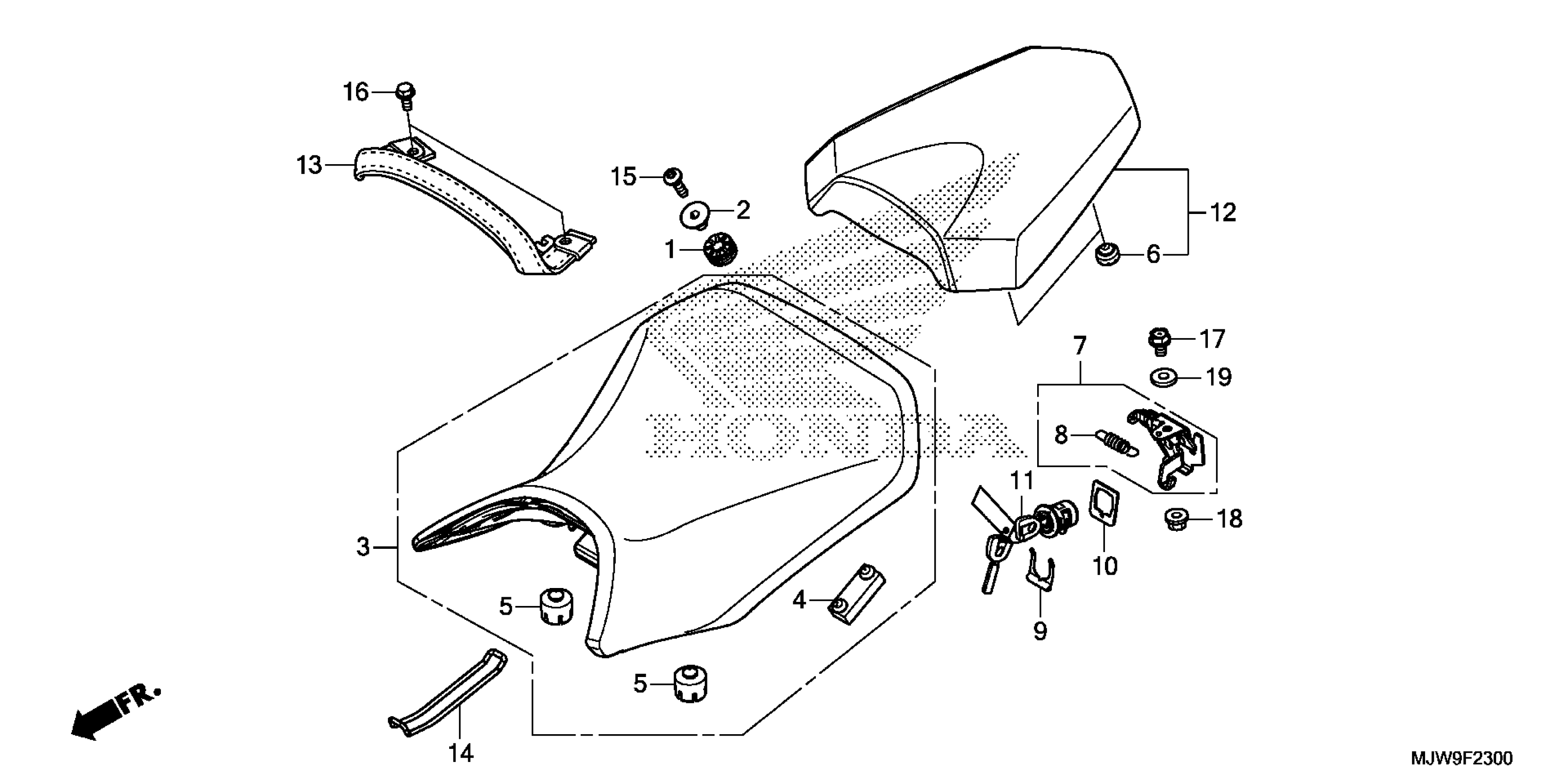

Honda CB500FAC (18) MOTORCYCLE, THA, VIN# MLHPC451-J5500001 SEAT Diagram
