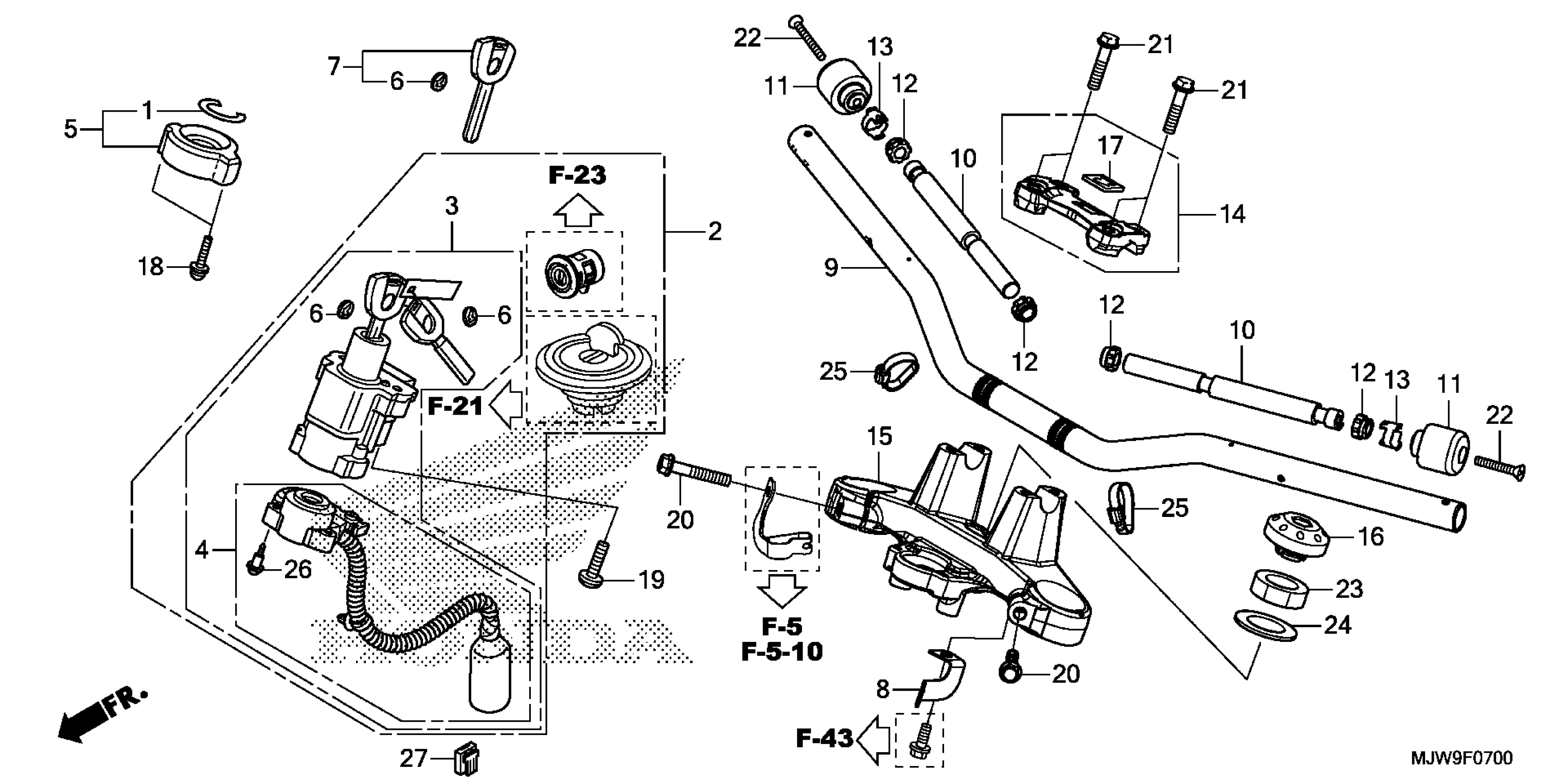

Honda CB500FAC (18) MOTORCYCLE, THA, VIN# MLHPC451-J5500001 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

2

LOCK SET This part replaces 35010-MJW-A02.

35010-MJW-A04

$214.81

2

LOCK SET This part replaces 35010-MJW-A03.

35010-MJW-A04

$214.81

3

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$151.24

4

BASE, CONTACT

35101-MJW-D11

$40.60

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

6

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

7

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

7

KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MJE-A02RUSH

Unavailable

7

KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MJE-A02STD

Unavailable

8

GUIDE, L. FR. WIRE

35910-MGZ-J00

$2.18

9

HANDLEBAR (COO)

53100-MGZ-306

$50.45

10

WEIGHT B, HANDLEBAR

53104-KYJ-900

$6.38

11

WEIGHT, HANDLEBAR

53104-MGZ-J00

$9.65

12

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.69

13

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

14

HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)

53130-MGS-D30ZB

$34.96

15

BRIDGE, FORK TOP

53230-MGZ-J40

$92.29

16

CAP, STEERING NUT

53232-MJW-J00

$23.00

17

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

18

SCREW-WASHER (5X22)

90020-MBW-610

$2.37

19

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

20

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.68

21

BOLT, FLANGE (8X35)

90150-MJW-J00

$1.47

22

SCREW, OVAL (6X50)

90191-KYJ-900

$0.91

23

NUT, STEERING STEM

90304-KGA-900

$2.91

24

WASHER, STEERING STEM

90503-KGA-900

$1.38

25

BAND, WIRE

90650-KW3-000

$4.28

26

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

27

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable
