Description

Price

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MJW-316

$389.52

2

SPRING, FR. FORK (SHOWA)

51401-MJW-J41

$38.74

3

COLLAR, SPRING

51402-MGZ-J01

$18.27

4

PIPE, FR. FORK (SHOWA)

51410-MJW-J41

$135.59

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

6

BUSH, GUIDE

51414-MFJ-A51

$7.25

7

BUSH, SLIDER

51415-MFJ-A51

$7.25

8

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$7.28

9

CASE, R. (LOWER)

51420-MGZ-J01

$82.75

10

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

11

RING, PISTON

51437-KV3-701

$7.19

12

PIPE, SEAT (SHOWA)

51440-MJW-J41

$8.87

13

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

14

BOLT ASSY., FR. FORK (SHOWA)

51450-MJW-J01

$61.77

15

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

16

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MJW-316

$386.75

17

CASE, L. (LOWER)

51520-MGZ-J01

$71.70

18

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

19

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

20

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

21

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

22

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

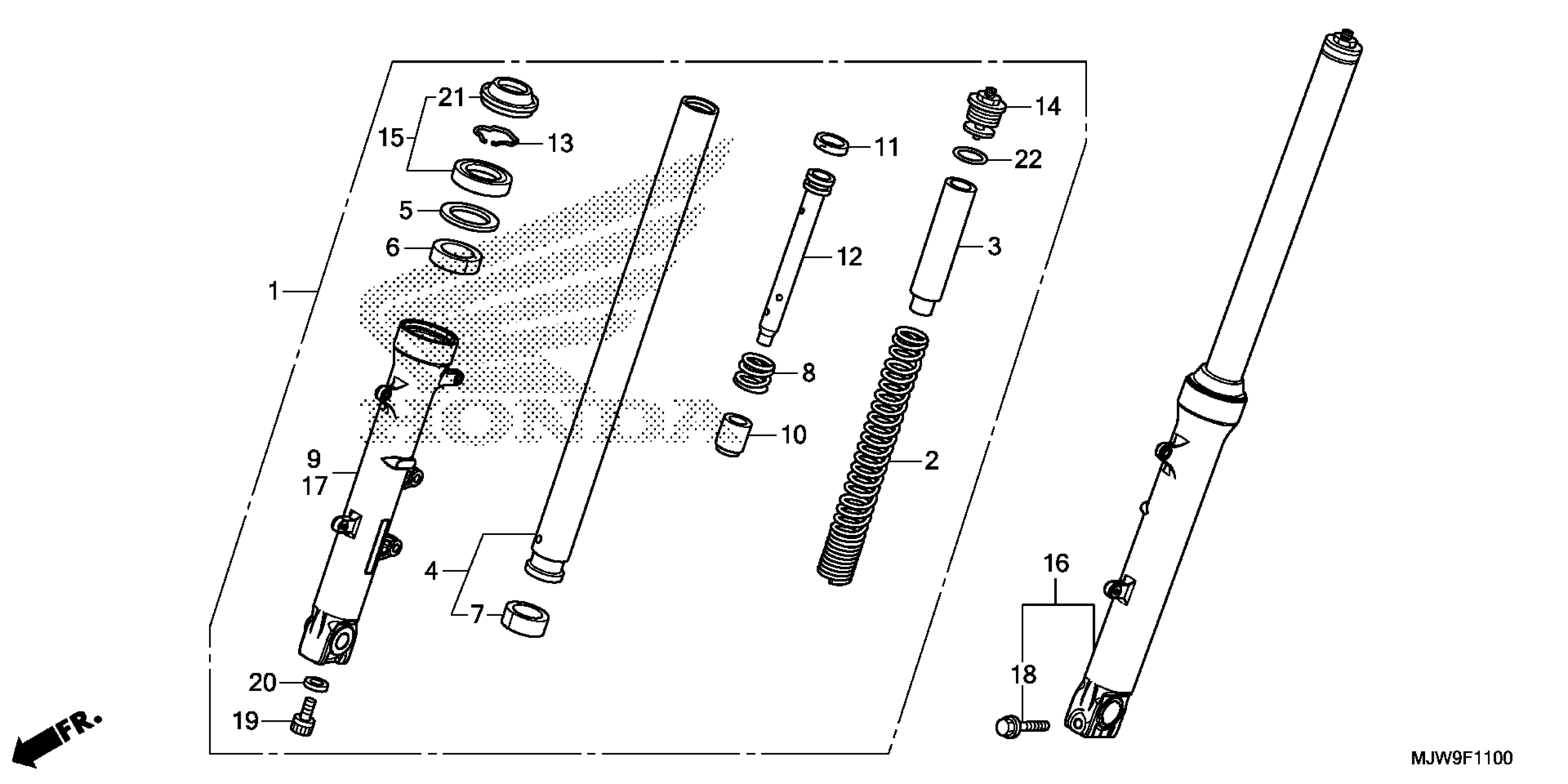

Honda CB500FAC (18) MOTORCYCLE, THA, VIN# MLHPC451-J5500001 FRONT FORK Diagram
