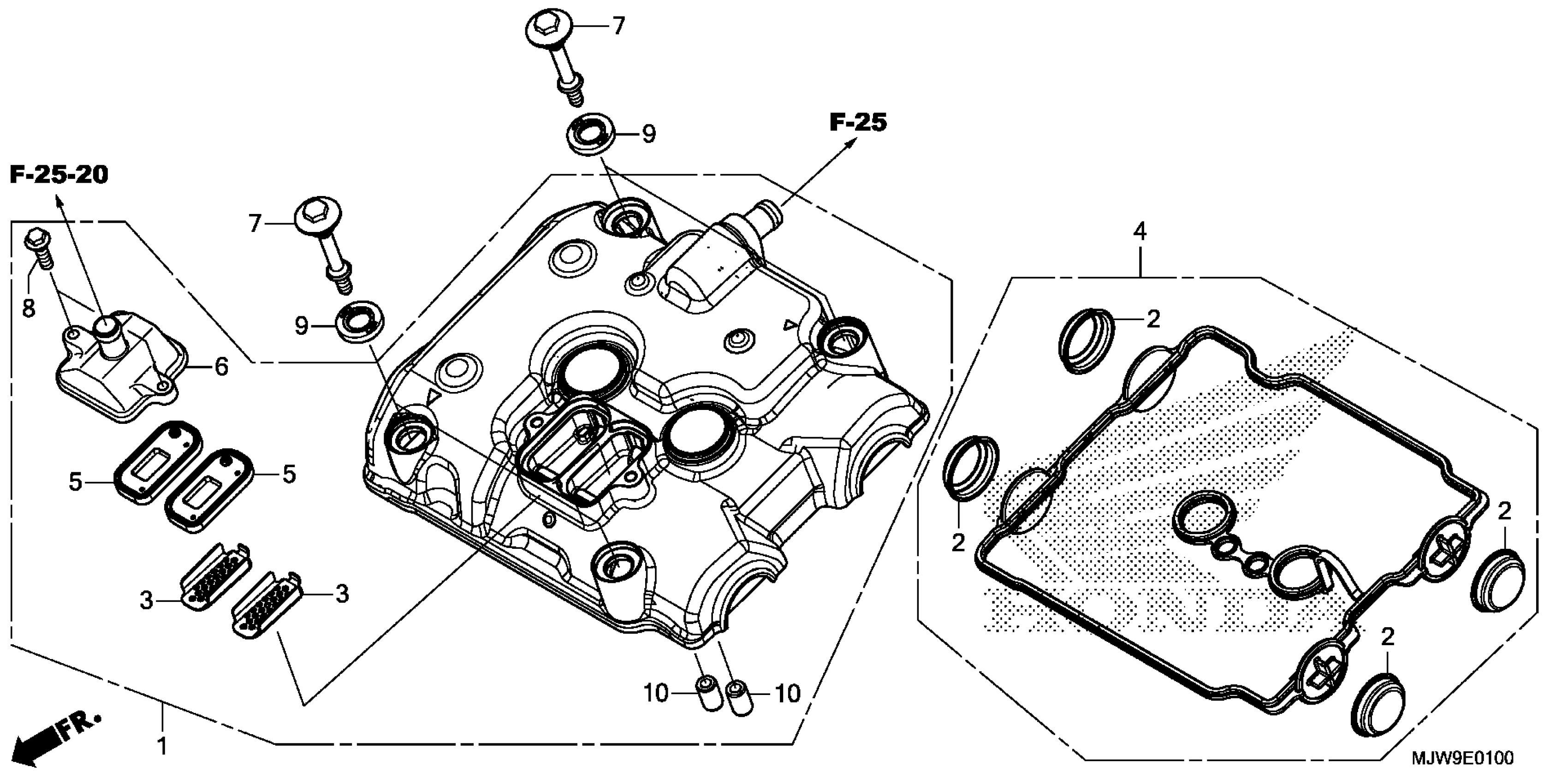

Honda CB500FAC (18) MOTORCYCLE, THA, VIN# MLHPC451-J5500001 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12300-MJW-J00

$149.07

CAP, CYLINDER HEAD COVER

12331-MGZ-J00

$8.61

PLATE, PORT (AI)

12341-MAT-750

$12.74

GASKET, CYLINDER HEAD COVER

12391-MGZ-J00

$34.80

VALVE, REED (ARAI)

18601-KEA-741

$17.20

COVER, REED VALVE

18612-MJW-J00

$12.64

BOLT, HEAD COVER

90002-MY5-850

$8.51

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.78

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.60

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24
