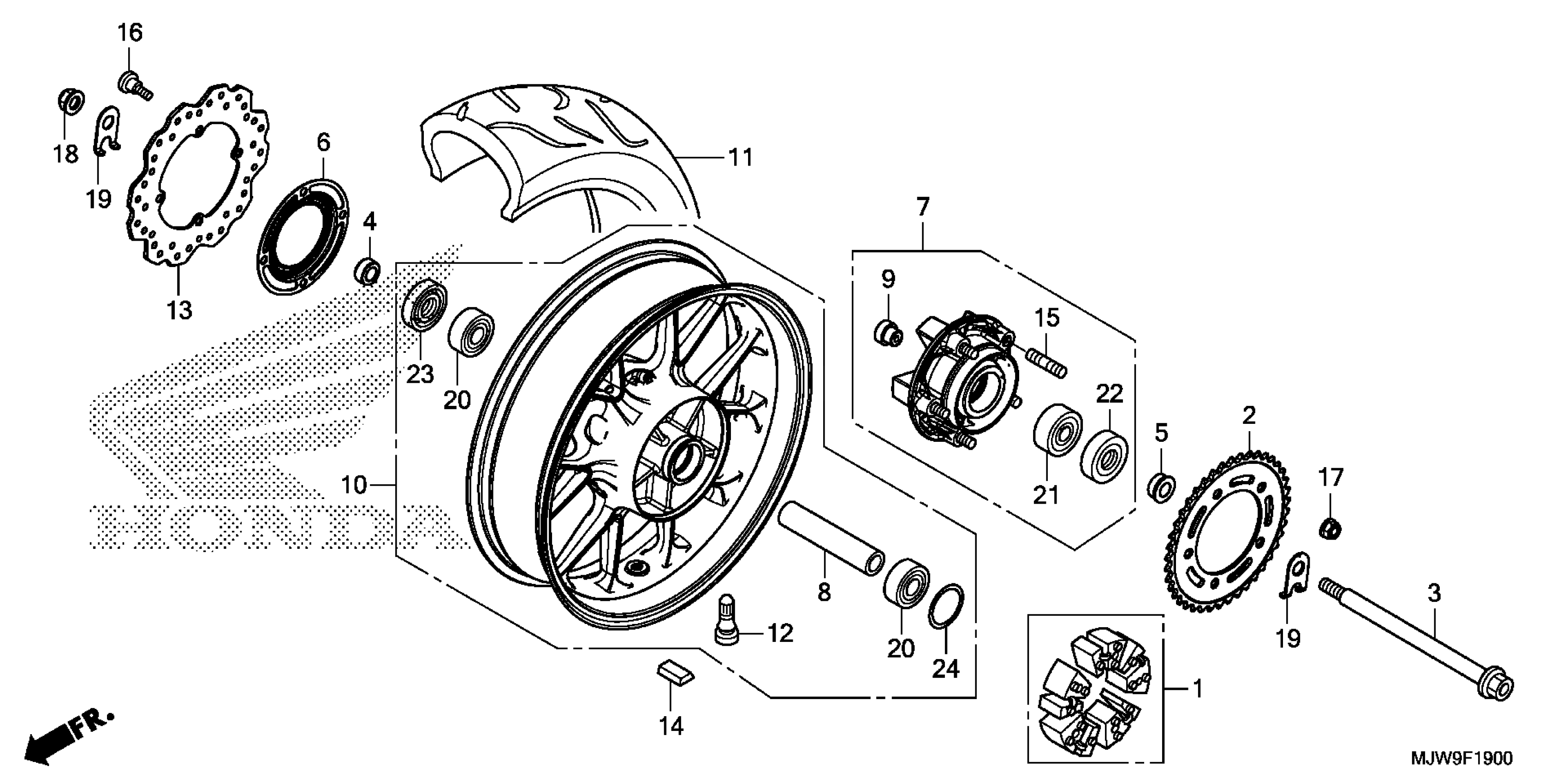

Honda CB500FAC (17) CB500F, THA, VIN# MLHPC451-H5400001 TO MLHPC451-H5499999 REAR WHEEL Diagram

DAMPER SET, WHEEL

06410-MER-D00

$93.23

SPROCKET, FINAL DRIVEN (41T)

41201-MGZ-D00

$69.16

AXLE, RR. WHEEL

42301-MGZ-J00

$18.47

COLLAR, RR. BRAKE SIDE

42312-MGZ-J00

$13.61

COLLAR, L. RR. WHEEL SIDE

42313-MGZ-J40

$30.23

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGZ-D00

$150.36

COLLAR, RR. AXLE DISTANCE

42620-MGZ-J00

$13.08

COLLAR B, RR. AXLE DISTANCE

42625-MGZ-J00

$8.39

WHEEL SUB-ASSY., RR.

42650-MGZ-J01

$1,037.34

TIRE, RR. (160/60ZR17 M/C 69W) (METZELER) This part replaces 42711-MJW-J01.

42711-MJW-J03

$238.70

TIRE, RR. (160/60ZR17 M/C 69W) (METZELER) This part replaces 42711-MJW-J02.

42711-MJW-J03

$238.70

TIRE, RR. (160/60ZR17 M/C 69W) (METZELER)

42711-MJW-J03

$238.70

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$1.49

VALVE, RIM

42753-K38-901

$1.49

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

DISK, RR. BRAKE (SUNSTAR)

43251-MGZ-J02

$86.37

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

BOLT, DISK (8X25)

90105-MGS-D30

$2.92

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.64

NUT, U FLANGE (16MM)

90306-MGZ-J01

$7.11

WASHER, RR. SWINGARM

90559-MJW-J00

$3.95

BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)

91051-MGZ-J01

$20.43

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$38.32

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

O-RING (55X2)

91351-MGS-D30

$2.92
