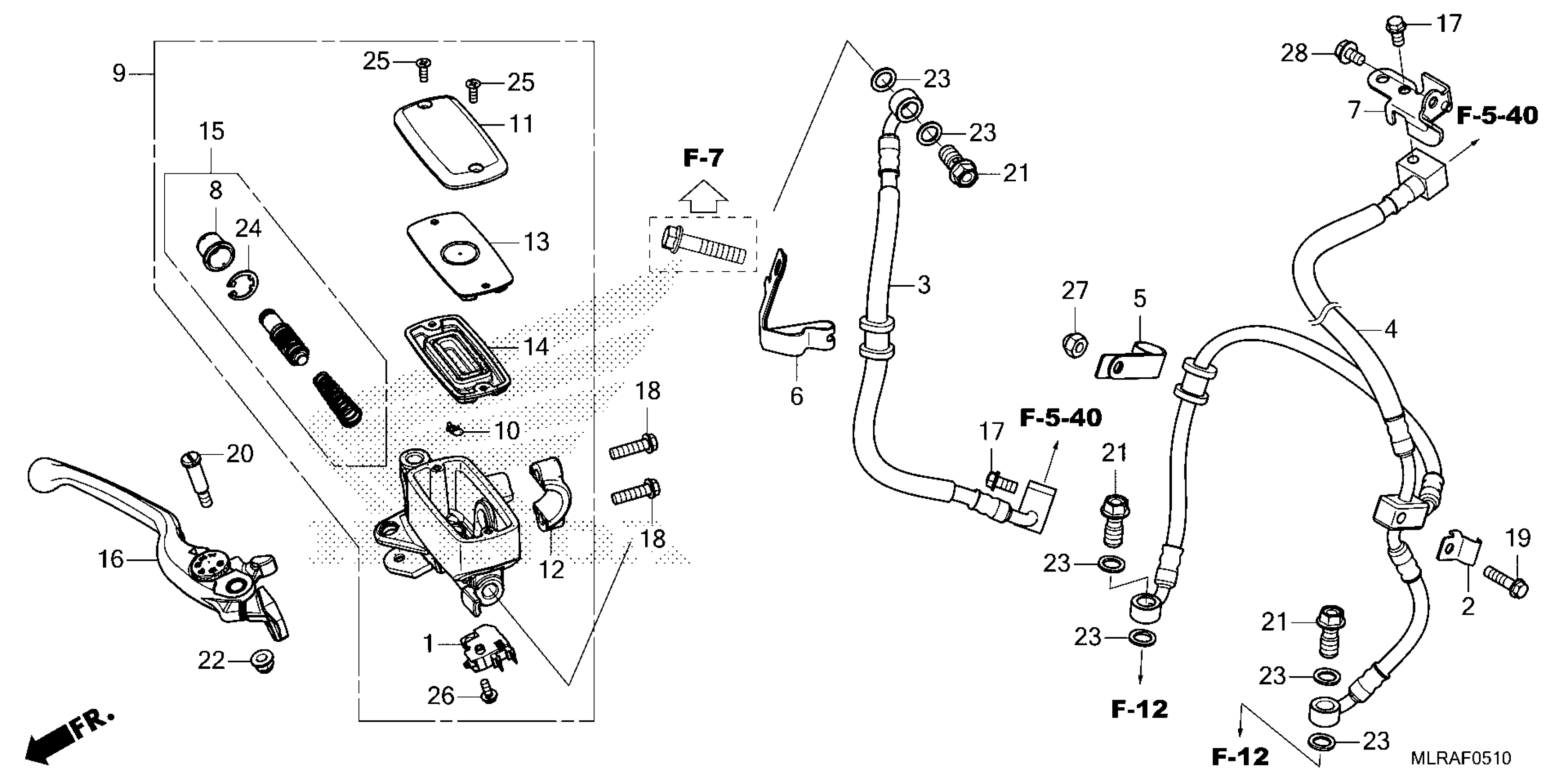

Honda CB500FAAC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.66

3

HOSE A, FR. BRAKE

45125-MLR-D41

$19.51

4

HOSE B, FR. BRAKE

45126-MKP-DN1

$87.31

5

CLAMP, FR. BRAKE HOSE

45132-MKN-D50

$3.35

6

CLAMP C, FR.

45157-MKP-DP0

$4.32

7

STAY, FR. BRAKE HOSE

45160-MKP-DN0

$5.01

8

BOOT

45504-410-003

$11.17

9

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN) This part replaces 45510-MJE-D01.

45510-MJE-305

$98.24

9

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)

45510-MJE-305

$98.24

10

PROTECTOR

45512-MA6-006

$4.09

11

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

12

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

13

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

14

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

15

MASTER CYLINDER SET

45530-471-831

Unavailable

16

LEVER ASSY., R. HANDLE

53170-MKK-D01

$46.70

17

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

18

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

19

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.13

20

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

22

NUT, CAP (6MM)

90202-KCW-870

$2.69

23

WASHER, OIL BOLT

90545-300-000

$6.56

24

CIRCLIP

90651-MA5-671

$2.38

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

26

SCREW-WASHER (4X12)

93893-04012-07

$1.24

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

27

NUT, CAP (6MM)

94021-06070-0S

$1.50

28

BOLT, FLANGE (6X10)

95701-06010-07

$1.50
