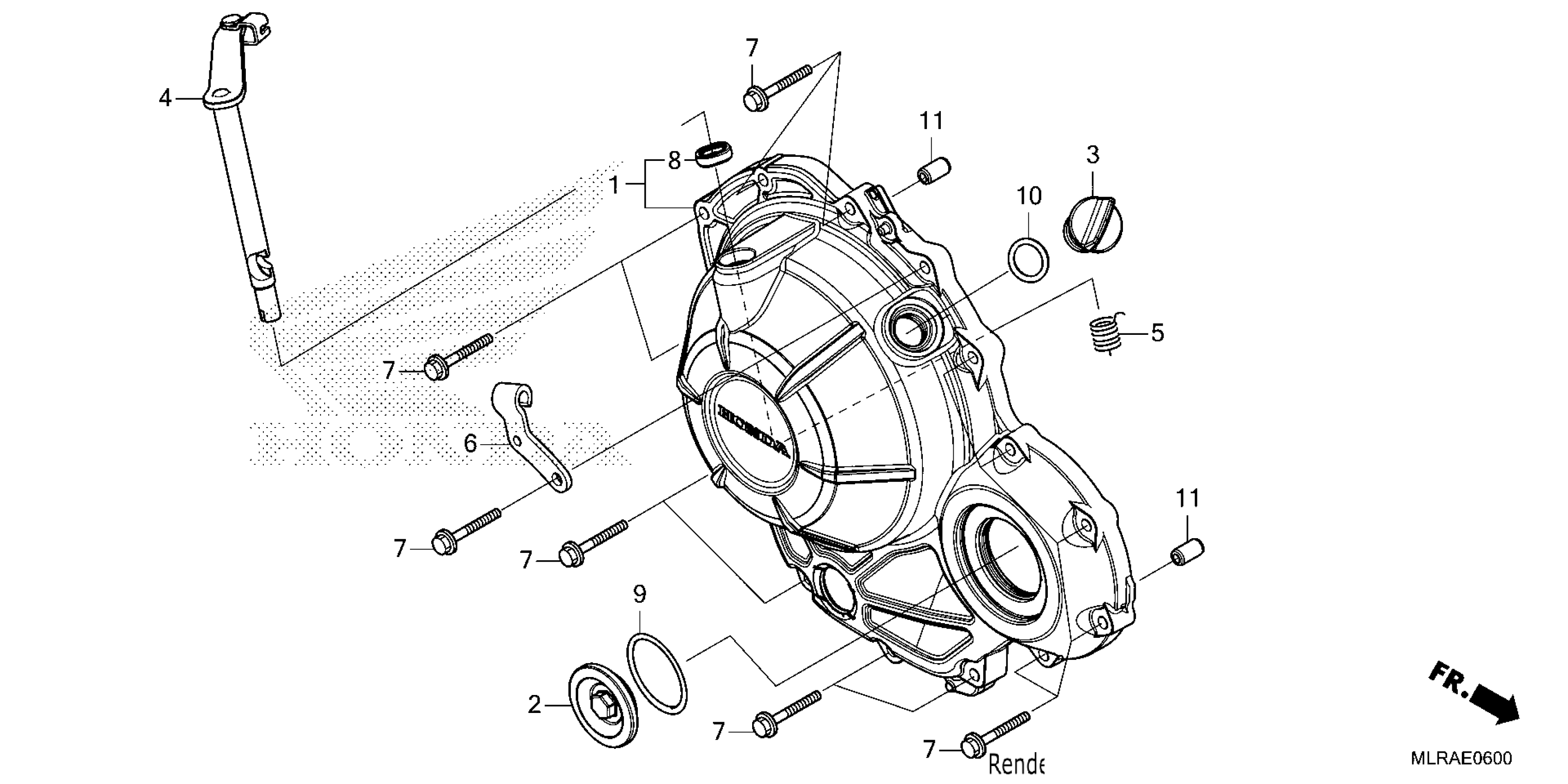

Honda CB500FAAC (24) MOTORCYCLE, THA, VIN# MLHPC715-R5000001 TO MLHPC715-R5099999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MKP-D80

$99.31

CAP (45MM)

11332-MGZ-J00

$22.78

CAP, OIL FILLER

15611-KA4-710

$14.40

LEVER, CLUTCH

22810-MKP-D00

$34.21

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.49

RECEIVER, CLUTCH CABLE

22821-MKP-D00

$5.67

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.49

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
