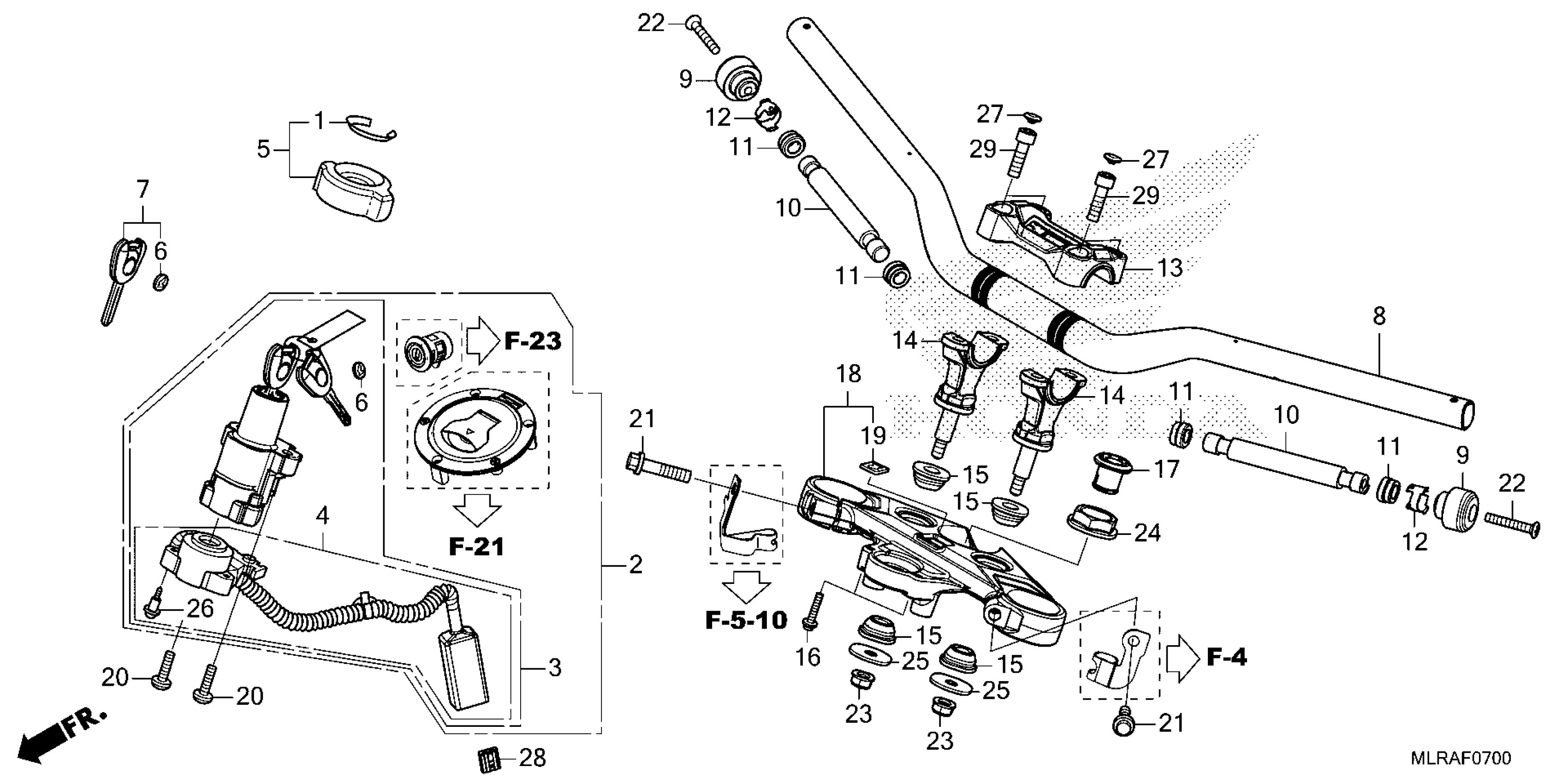

Honda CB500FAAC (24) MOTORCYCLE, THA, VIN# MLHPC715-R5000001 TO MLHPC715-R5099999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

2

LOCK SET

35010-MJW-A04

$214.81

3

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$151.24

4

BASE, CONTACT

35101-MJW-D11

$40.60

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

6

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

7

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

8

HANDLEBAR *NH303M*

53100-MLR-D40ZA

$43.30

9

WEIGHT, HANDLEBAR

53104-MJE-DF0

Unavailable

10

WEIGHT B, HANDLEBAR

53105-MJE-DF0

$6.54

11

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.69

12

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

13

HOLDER, HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)

53131-MKP-J40ZA

$27.74

14

HOLDER, HANDLEBAR (LOWER) *NH303M* (MAT AXIS GRAY METALLIC)

53132-K94-T00ZB

$24.74

15

RUBBER, HANDLE CUSHION

53136-K94-T00

Unavailable

16

SCREW-WASHER (5X25)

53192-MFL-000

$1.71

17

CAP, STEERING NUT

53232-K94-T00

$2.03

18

BRIDGE, FORK TOP

53300-MKP-DP0

$85.29

19

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

20

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

21

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.68

22

SCREW, OVAL (6X40)

90122-MKN-D50

$1.24

23

NUT, U (8MM)

90304-KPG-901

$0.90

24

NUT, STEERING STEM FLANGE

90304-MCF-000

Unavailable

25

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.40

26

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

27

CAP, SOCKET BOLT

91456-371-770

$3.31

28

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

29

BOLT, SOCKET (8X28)

96600-08028-08

$1.18
