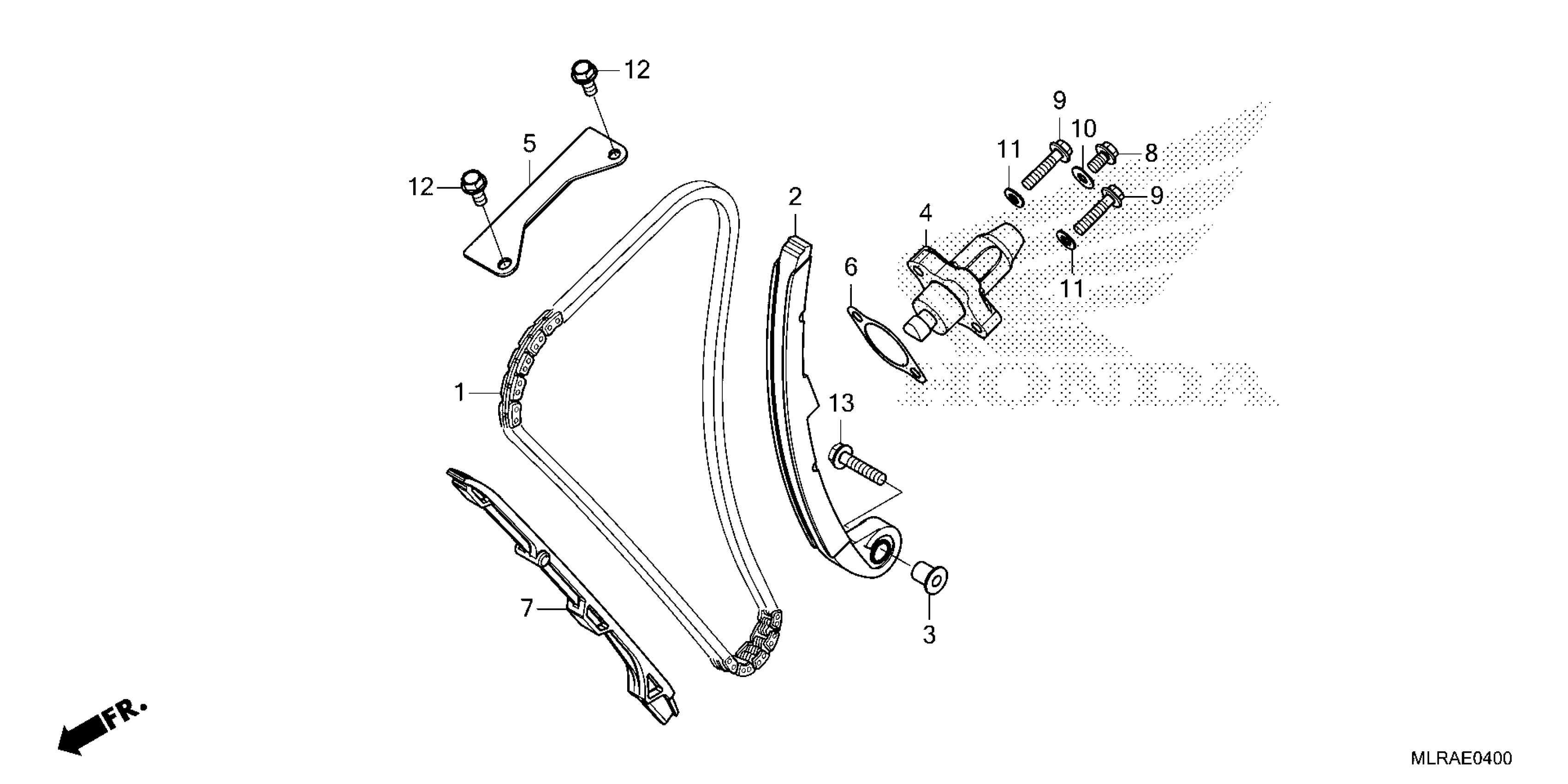

Honda CB500FAAC (24) MOTORCYCLE, THA, VIN# MLHPC715-R5000001 TO MLHPC715-R5099999 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (130L) (SCH-0409 SV) (DAIDO)

14401-MGZ-J01

$78.43

TENSIONER, CAM CHAIN (NOK)

14510-MGZ-J01

$63.55

COLLAR, TENSIONER

14517-MGZ-J00

$1.22

LIFTER ASSY., TENSIONER (NHK)

14520-MGZ-J01

$100.22

GUIDE B, CAM CHAIN

14546-KYJ-900

$6.81

GASKET, TENSIONER HOLE

14560-MGZ-J01

$4.19

GUIDE A, CAM CHAIN

14611-MGZ-J00

$9.68

BOLT, FLANGE (6X10)

90025-GHB-610

$1.96

BOLT, FLANGE (6X25)

90025-GHB-680

$0.93

WASHER, SEALING (6MM)

90442-397-000

$2.25

WASHER, SEALING (6MM)

90463-MEE-000

$1.61

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

BOLT, FLANGE (6X28)

95801-06028-08

$1.65
